Drager XXS CO2 (0-5 Vol%) Sensor

PRODUCT CODE:
6810889
Drager XXS CO2 (0-5 Vol%) Sensor
£537.16 inc VAT
£447.63
Loading...

Product description

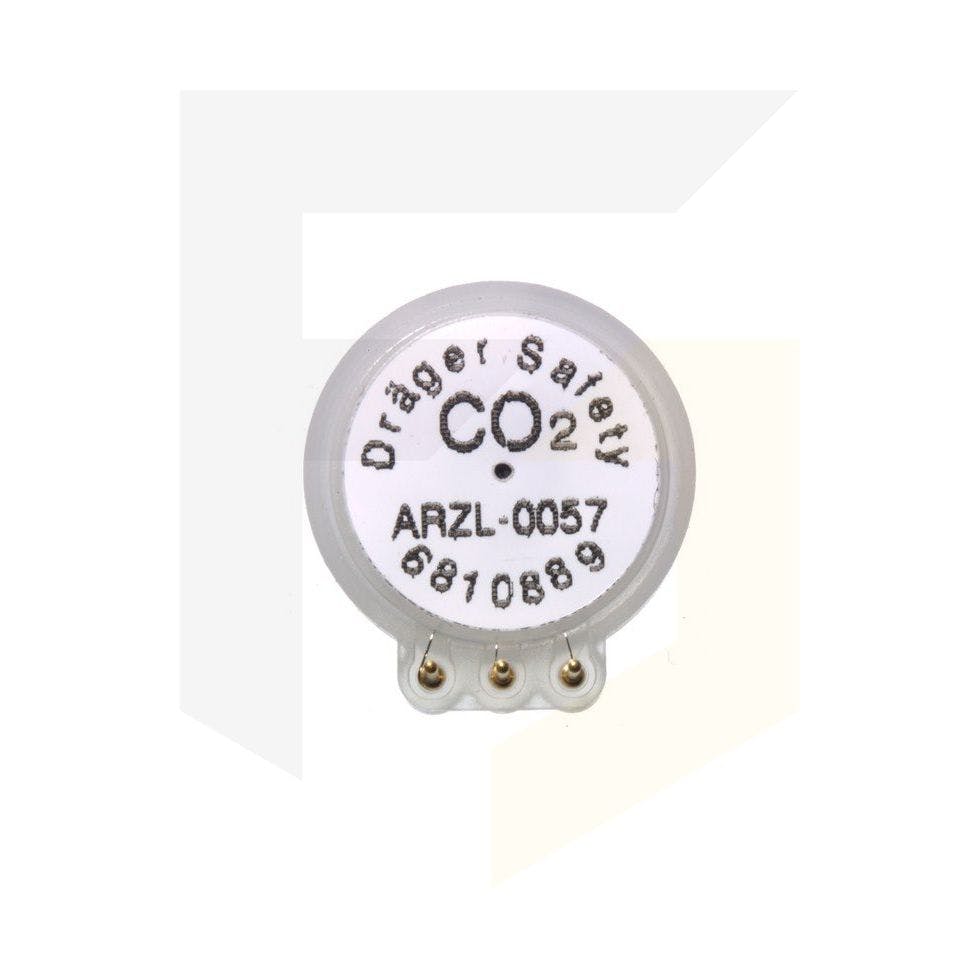

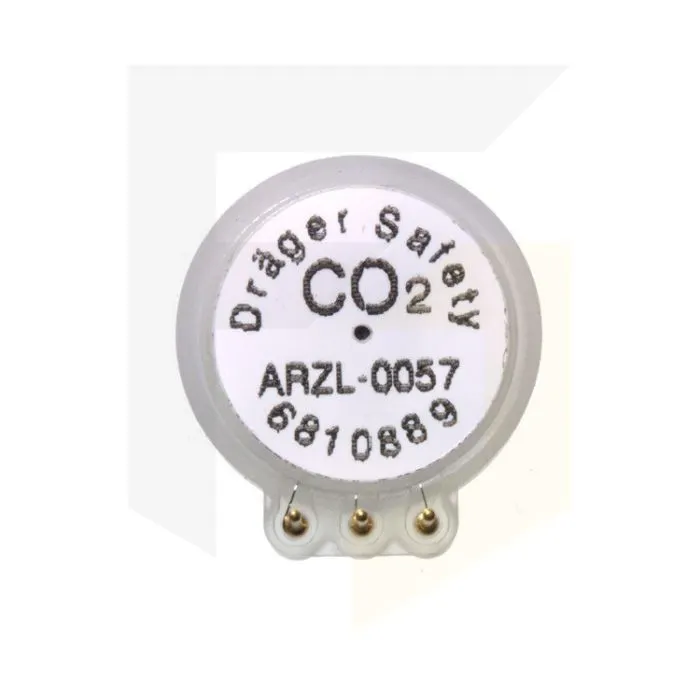

Drager XXS CO2 (0-5 Vol%) Sensor

The DragerSensor XXS CO2 is for the detection of carbon monoxide.  It’s suitable for instruments such as the Pac 7000, X-am 5600 and the X-am 5000.

With a measuring range of 0 to 5 Vol.-%, it may be used in market segments including waste disposal, Food and beverage (breweries), metal processing, petrochemical, fertilizer production, sewage, police, customs and rescue services, mining and tunnelling, shipping and transport and power generation.

Key Features

  • Has a 1 year guarantee
  • Can be easily replaced
  • Highly sensitive
  • Economic alternative to infrared sensors if you need to warn against CO2 concentrations in the ambient air
Specification

Detection Limit

0.3 Vol %

Resolution

0.1 Vol %

Response Time

≤ 30 seconds at 20°C (T50) or 68°F

Measurement accuracy

Zero Point:  ≤ ± 0.3 Vol %
Sensitivity:  ≤ ± 20% of measured value

Long-term drift, at 20°C (68°F)

Zero Point:  ≤ ± 0.2 Vol.-%/year
Sensitivity:  ≤ ± 15% of measured value/month

Warm-up time:

≤ 12 hours

Ambient conditions

Temperature: (-20°C to 40°C)(-4 to 104°F)
Humidity: (10 to 90)% RH
Pressure: (700 to 1,300) hPa

Influence of Temperature

Zero Point:  ≤ ± 0.01 Vol%/K
Sensitivity:  ≤ ± 2% of measured value

Influence of Humidity

Zero Point:  No Effect
Sensitivity:  ≤ ± 0.1% of measured value/% RH

Test Gas

2.5 Vol.-% CO2
