Drager XXS H2S HC (0-1000PPM) Sensor

PRODUCT CODE:: 6812015

£555.13 inc VAT

£462.61

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

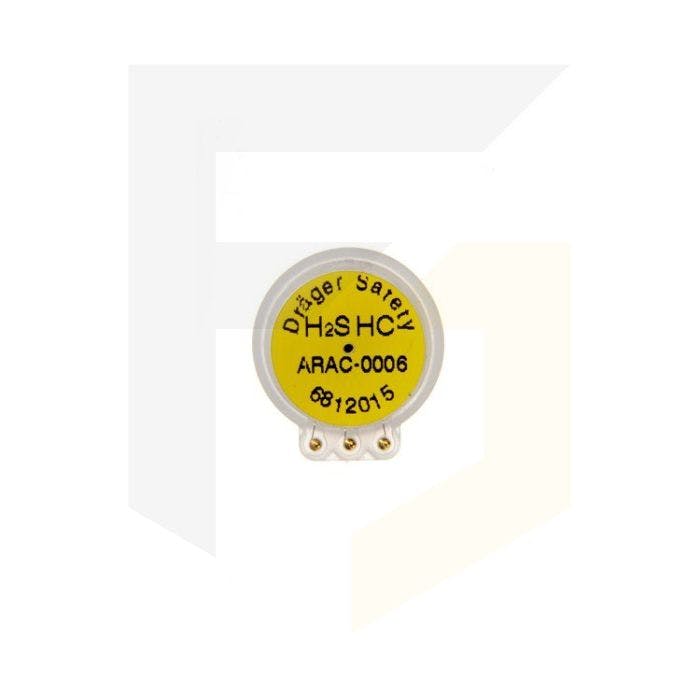

Drager XXS H2S HC (0-1000PPM) Sensor

Measure high concentrations of Hydrogen Sulphide (H2S) with this DragerSensor XXS. It has a measurement range of 0 to 1000 ppm and can be used in the X-am 5000 and the X-am 5600.

Typical market segments which may use this type of sensor include waste disposal industry, petrochemical, fertilizer production, sewage, mining and tunnelling, shipping, inorganic chemicals, steel industry, pulp and paper, organic chemicals, oil and gas, measuring hazardous material and also biogas.

Key Features

One year guarantee on these replaceable filters
Can be calibrated in a lower measurement range due to good linearity
Offers a fast response time and has good selectivity

Specification

Detection Limit	4 ppm
Resolution	2 ppm
Response Time	≤ 15 seconds at 20°C (T90) or 68°C
Measurement accuracy	Zero Point: ≤ ± 4 ppm Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 2 ppm/year Sensitivity: ≤ ± 1% of measured value/month
Warm-up time:	≤ 5 minutes
Ambient conditions	Temperature: (-40°C to 50°C)(-40 to 122°F) Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: No Effect Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.03% of measured value/% RH
Test Gas	approx. 100 ppm H2S
