Drager XXS NO2 (0-50ppm) Sensor

PRODUCT CODE:: 6810884

£487.69 inc VAT

£406.41

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

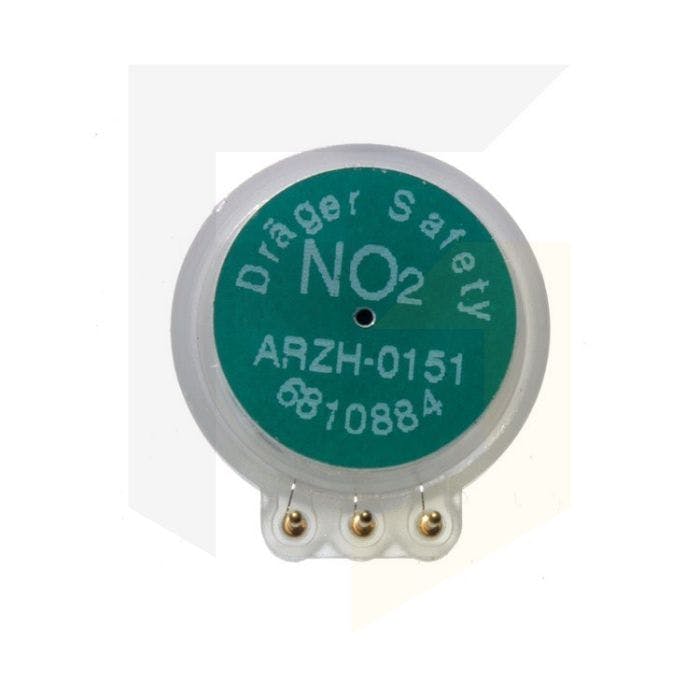

Drager XXS NO2 (0-50ppm) Sensor

This Nitrogen Dioxide DragerSensor XXS has a measuring range of 0 to 50 ppm.
It can be used for NO2 detection in a range of applications including the Drager Pac 7000 and the X-am 5000 and 5600.

Typical market segments which may used the DragerSensor XXS for NO2 include inorganic chemicals, metal processing, oil and gas, petrochemical, steel industry, shipping, rocket engineering, mining and tunnelling.

Key Features

Gives a fast response and features excellent repeatability
Enables selective measurements of NO2
Can be replaceable
Have a 1 year guarantee

Specification

Detection Limit	0.2 ppm
Resolution	0.1 ppm
Response Time	≤ 15 seconds at 20°C (T90) or 68°F
Measurement accuracy	Zero Point: ≤ ± 0.2ppm Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 1 ppm/year Sensitivity: ≤ ± 2% of measured value/year
Warm-up time:	≤ 15 minutes
Ambient conditions	Temperature: (–30 to 50)°C (–22 to 122)°F Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 1 ppm Sensitivity: ≤ ± 5% of measured value/k
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.2% of measured value/% RH
Test Gas	approx. 50 to 10 ppm NO2
