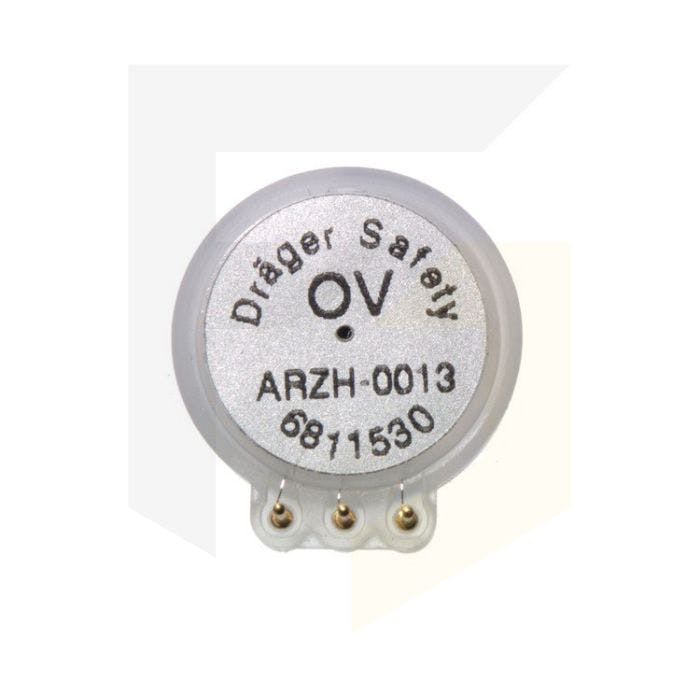

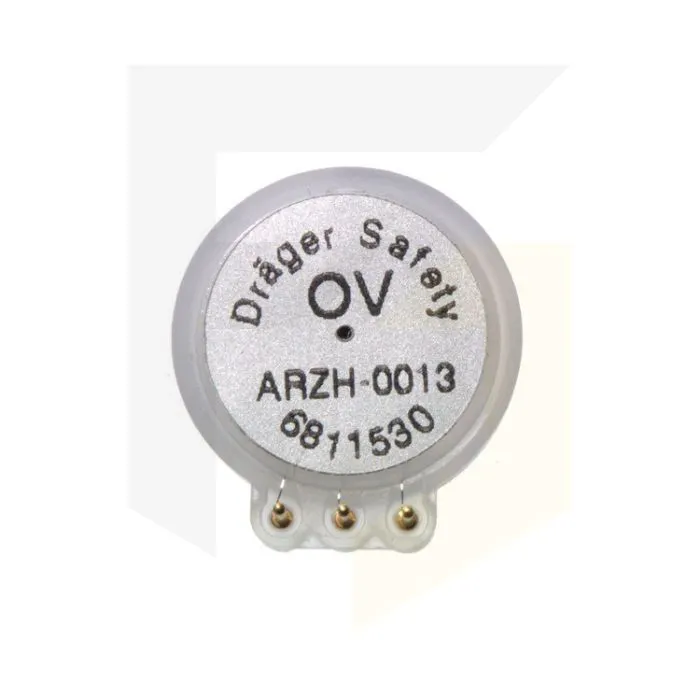

Drager XXS OV (0-200 ppm) Sensor
This DragerSensor XXS is suitable for organic vapours and has various measurement ranges.
It can be used in the Drager Pac 7000, X-am 5600 and the X-am 5000 gas detection monitors and is suitable for industries such as the product of plastics, disinfection, painting, chemical industry and also pest control.
The measurement ranges for various substances can be found below:
- 0 to 200 ppm C2H4O (ethylene oxide)
- 0 to 200 ppm C3H6O (propylene oxide)
- 0 to 100 ppm C2H4 (ethene)
- 0 to 100 ppm C3H6 (propene)
- 0 to 100 ppm C2H3Cl (vinyl chloride)
- 0 to 200 ppm CH3OH (methanol)
- 0 to 100 ppm CH2CHCHCH2 (butadiene)
- 0 to 100 ppm HCHO (formaldehyde)
- 0 to 300 ppm (H3C)2CHOH (isopropanol)
- 0 to 200 ppm C4H8O (tetrahydrofuran)
- 0 to 100 ppm C2H3OCH2CI (1-chloro-2,3 epoxypropane)
- 0 to 100 ppm C6H5CHCH2 (styrol)
- 0 to 100 ppm H2CC(CH3)COOCH3 (methyl methacrylate)
- Has a 1 year guarantee
- Replaceable sensor
- Suitable for detecting leakages of numerous organic gases and vapours
- Is almost completely insensitive to moisture
- Does not need to be calibrated every day
- Has a 6-month calibration interval typical of EC sensors
Detection Limit |
1 ppm |
Resolution |
0.5 ppm |
Response Time |
≤ 20 seconds at 20°C (T50) or 68°F |
Measurement accuracy |
Zero Point: ≤ ± 3 ppm |
Long-term drift, at 20°C (68°F) |
Zero Point: ≤ ± 5 ppm/year |
Warm-up time: |
≤ 18 hours |
Ambient conditions |
Temperature: (-20°C to 50°C)(-4 to 122°F) |
Influence of Temperature |
Zero Point: ± 2 ppm (-20°C to 40°C)(-4 to 104°F) |
Influence of Humidity |
Zero Point: No Effect |
Test Gas |
approx. 10 ppm C2H4O |
