Drager XXS Ozone (0-10ppm) Sensor

PRODUCT CODE:: 6811540

£716.82 inc VAT

£597.35

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

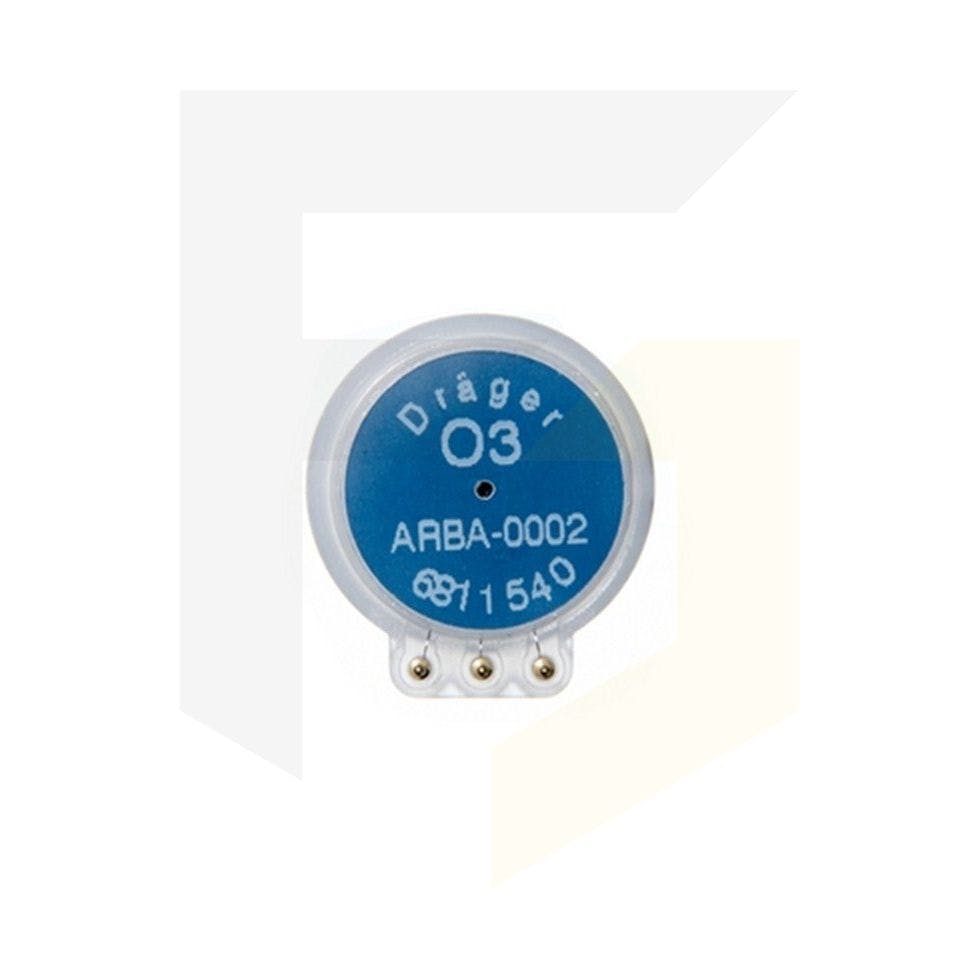

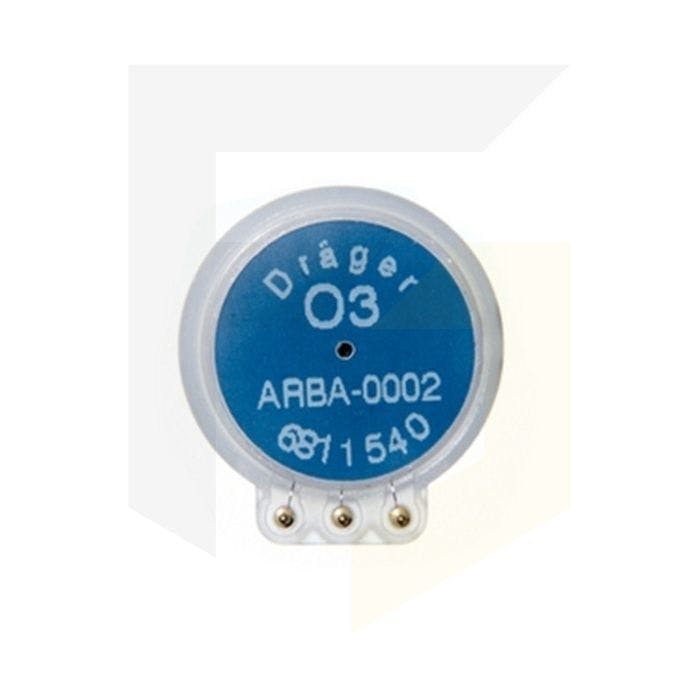

Drager XXS Ozone (0-10ppm) Sensor

This Ozone DragerSensor XXS is suitable for both the Drager X-am 5000 and the X-am 5600 gas detectors.

The sensor has a measuring range of 0 to 50 ppm and can be used in a range of different market segments including ozone generator manufacturer, coal-fired power plants, water treatment (drinking and industrial water), food and beverage industry, swimming pools, pulp and paper industry, pharmaceutical and cosmetics industry.

Key Features

Has a 1 year guarantee
Replaceable sensor
Features a fast response time and excellent repeatability
Optimally suited for limit value monitoring

Specification

Detection Limit	0.2 ppm
Resolution	0.1 ppm
Response Time	≤ 10 seconds at 20°C (T50)
Measurement accuracy	Zero Point: ≤ ± 0.01 ppm Sensitivity: ≤ ± 3% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 0.02 ppm/year Sensitivity: ≤ ± 2% of measured value/month
Warm-up time:	≤ 120 minutes
Ambient conditions	Temperature: (-20°C to 50°C)(-4 to 122°F) Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: No Effect Sensitivity: ≤ ± 0.5% of measured value/K
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.1% of measured value/% RH
Test Gas	Ozone, replacement gas for bump test and calibration NO2 (5 ppm)
