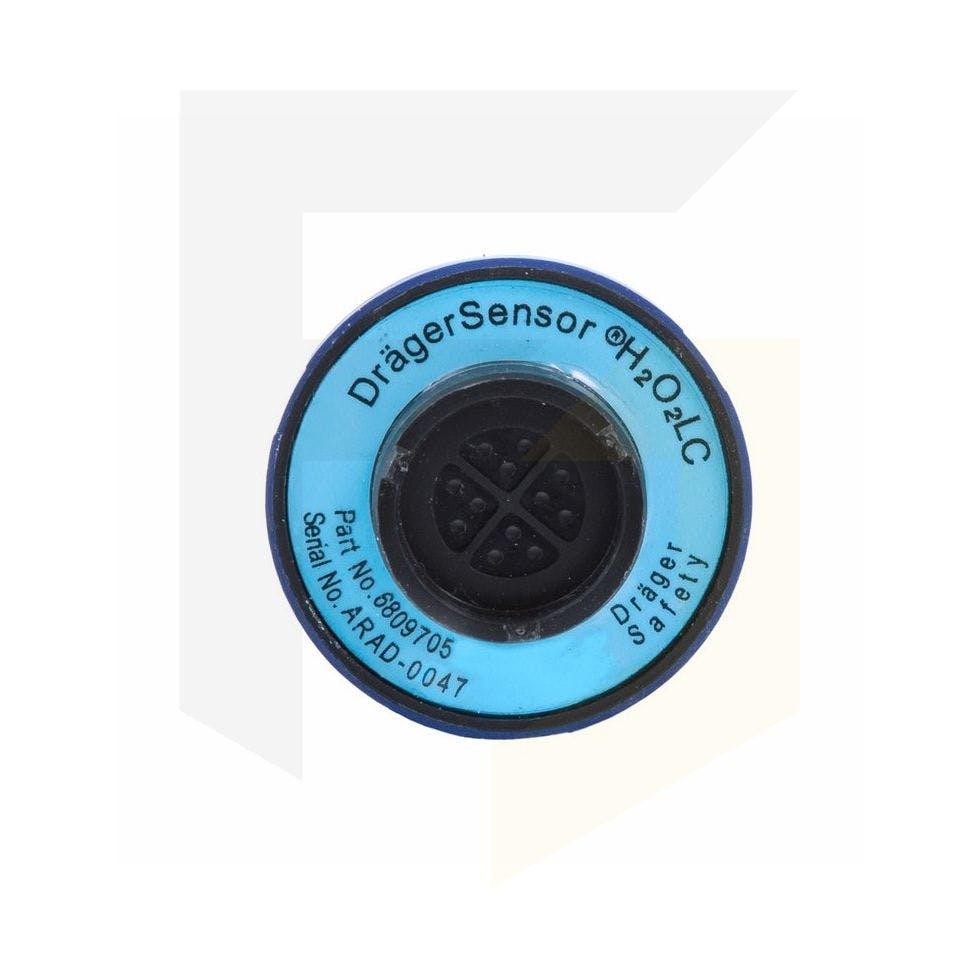

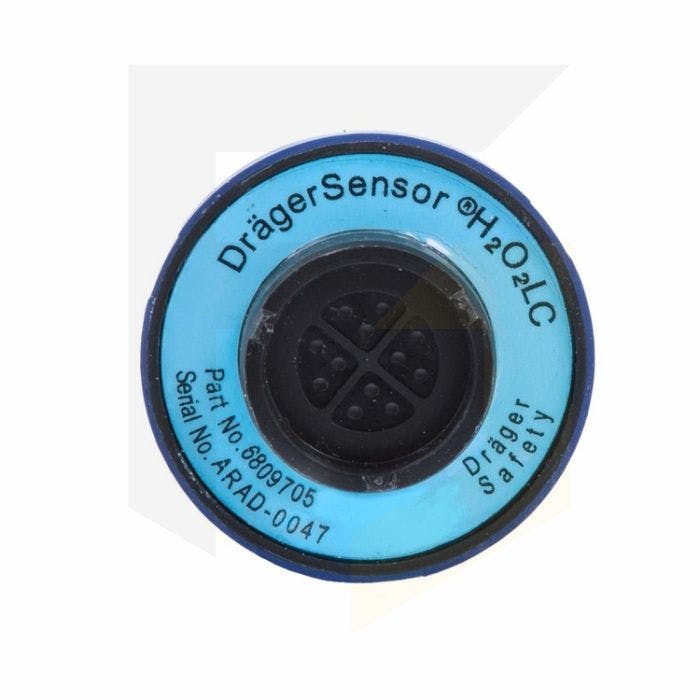

Drager Hydrogen Peroxide Sensor (H2O2) LC

PRODUCT CODE:: 6809705

Detect high concentrations of hydrogen peroxide (H202) with this electrochemical sensor. Ideal gas detector sensor for Drager fixed gas systems.

£1,022.82 inc VAT

£852.35

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager Sensor Hydrogen Peroxide (H2O2) LC

This Drager Sensor detects levels of low concentration Hydrogen Peroxide (H2O2) in the ambient air. It's an electrochemical sensor, suitable for use in Drager's Fixed Gas Detection Systems, including the PointGard 2100. More information can be found in the technical note in our downloads section.

Specification

Default Settings	Measured Gas: Hydrogen Peroxide Display: (H2O2) Chem. Symbol: H2O2 CAS number: 7722-84-1
Measuring Range Limit	Default: 5ppm Adjustment Range Min/Max: 1/300ppm
Calibration Interval	Default: 6 months Adjustment Range Min/Max: 1 day/12 months
Warm-up Time	Ready for operation after max.: 30 mins Ready for calibration after max.:720 mins When using SensorReady: <5 minutes
*Detection Limit:**	0.1ppm
*Measurement Accuracy (measurement uncertainly (of meas. value) or minimum (whichever is greater value))**	≤ ±5 % ≤ ±0.05ppm
*Alarm response time (on gas exposure with 5x alarm threshold, ^t0...20 with 1.6x alarm threshold, ^t0...63**	≤5 seconds ≤15 seconds
Loss of sensitivity, per year	≤ –3 %
Expected Service Life (in ambient air)	>36 months
Environmental conditions	Temperature, min./max.: –0/65°C (–32/149°F) Rel. humidity, min./max.: 5/95% Ambient pressure: ±3 %
Stored Conditions	Packed (min./max) 0/40°C (32/104°F)
Cross-Sensitivities	Existing - please refer to manufacturer
