FGD Flame IR3-H2 Simulator Kit (Aluminum)

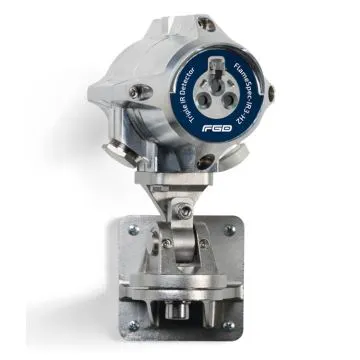

This simulator kit includes a flame simulator for the IR3-H2 flame detector (aluminum), a simulator carrying case and strap, a cover tool and a charger. The IR3-H2 flame detector picks up hydrogen fires only.

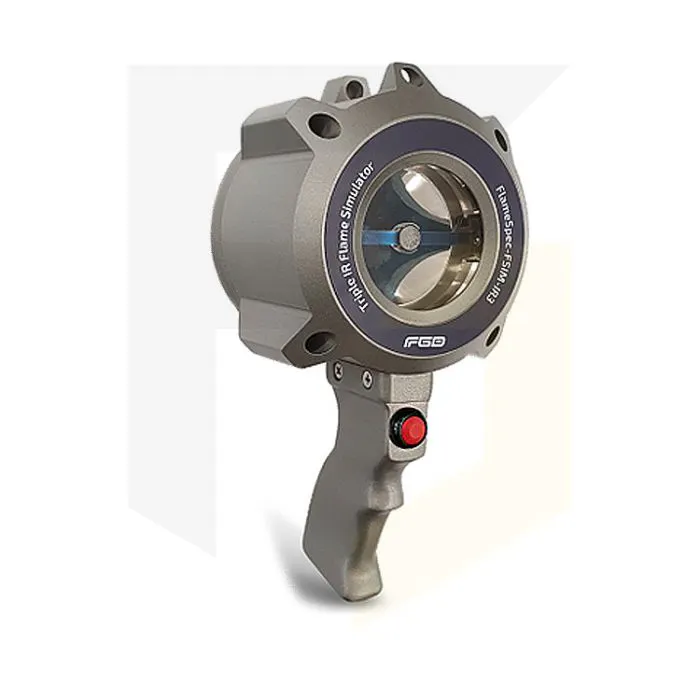

FGD Flame Simulators are designed to test FlameSpec flame detectors and ensure they are performing accurately and adequately. The flame simulators are economic and ideal for ongoing maintenance. They are lightweight and very easy to use. They can be used in a hazardous area and can test in distances of up to 23 feet away from the detectors, reducing the need for scaffolding.
These are ideal for applications where commissioning and periodic system testing is required for the detectors. There are three versions available, please see below kits and part numbers. Please refer to the datasheet for additional information on detector sensitivities, operational distances and electrical specifications.
- More than 1000 activations between charges so uptime is high
- Performs automatic self-tests of optics, windows, electronics and software
- Can be manually put into alarm through FGD communicator software or by short-circuiting the Manual BIT terminal/24 VDC terminal for one second
- Designed to complement inbuilt features by providing a full external loop test capability
Please refer to the datasheet for more information on operational and electrical specifications. | |
Size |
3.9 x 3.9 x 7.8” (100 x 100 x 200mm) |
Weight |
3.96 lbs (1.8kg) |
Simulator Enclosure Material |
Painted Aluminum LM 25 |
Ingress Protection |
IP65 (NEMA 4X) |
Humidity |
Up to 99% (RH), non-condensing |
Operating Temperature |
Min: –4°F (–20°C) |
Approvals |
Explosion Proof ATEX Ex II 2 G Ex db ib op is IIC T6 Gb |
Warranty |
3 years |
