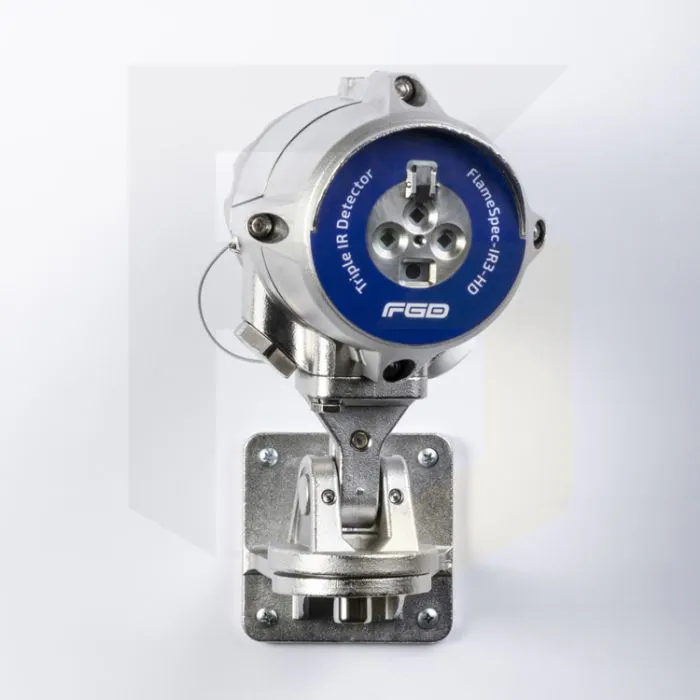

FGD FlameSpec IR3-HD Flame Detector (M25)
The FlameSpec IR3-HD provides ultra-fast response and reliable detection of fire. The IR3 detects all types of hydrocarbon fires (visible and non-visible). The high definition video provides video output of a monitored area with clear imaging.
It addresses slow growing fires as well as fast eruptions of fire using their IR3 technology and additionally will also be able to detect within 40 milliseconds of fireballs or explosions and only 1.3 seconds and 50 feet away from a standard fire (for 1 ft2 n-heptane pan fire at up to 50 ft. distance).
The flame detectors from FGD can carry out a Built-In-Test (BIT) which is an automatic and manual internal self-test of the window cleanliness and general operation. This ensures that the monitors are reliably detecting and reactive.
Please refer to the datasheet for more information on immunity and response characteristics.
The HD version of this flame detector will automatically record fire events (1 min pre-alarm / up to 3 min post-alarm) and can provide an insight into a hazardous situation before entering. It shows clear imaging of fire events up to 100 ft. (30m)
- Can be used in all weather and light conditions
- High immunity to false alarms (see the datasheet for detailed information)
- Both include a window heater to avoid any condensation or icing
- Data/Event logger capability where alarms, faults and other relevant events are logged to a non-volatile memory
- The field of view for IR detection is 90° Horizontal and 75° Vertical
Size |
7.87 x 5.12 x 5.12″ (200 x 130 x 130 mm) |
Weight |
Detector (Stainless Steel 316): 9.8 lbs. (4.4 kg) |
Temperature Range |
Operating: -67°F to +185°F (-55°C to +85°C) |
Humidity |
Up to 99% (RH), non-condensing |
Ingress Protection |
IP66 & 68; NEMA 4X & 6P |
Warranty |
5 Years |
Approvals |
Explosion Proof IECEx FMus & FMc EAC CU TR Performance MED |
