PRODUCT CODE
FLS-UV-IR-F-AS11
£2,772.00 £2,310.00

The FGD FlameSpec-UV-IR-F flame detector provides detection of a variety of fires including hydrocarbon fires (visible and non-visible), as well as Hydrogen fires.  It also has a spectrum response of IR radiation in the 4.0-5-0 μm.

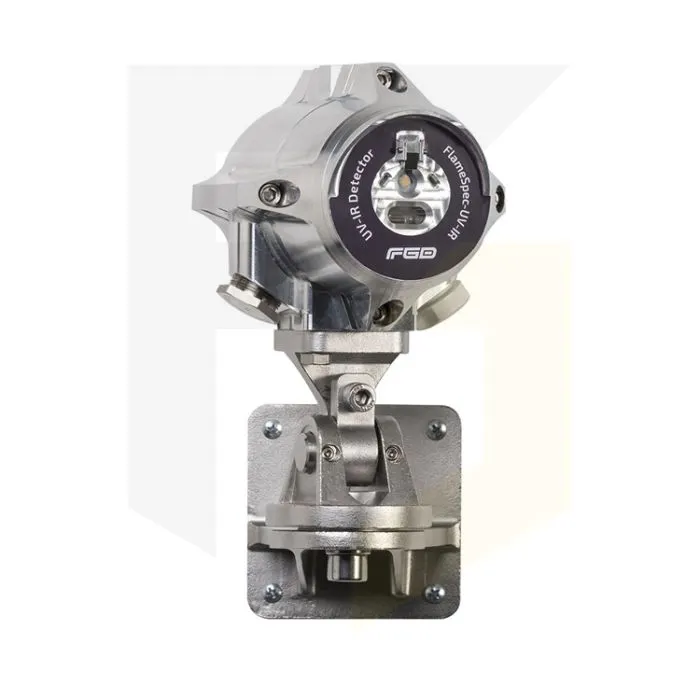

FGD FlameSpec UV-IR-F Flame Detector (M25)

FGD FlameSpec UV-IR-F Flame Detector (M25)

The FlameSpec UV-IR-F is an ultra-fast flame detector, capable of operating at a wavelength of 4.0-5-0 μm, as opposed to 3.0-4-0 μm.  It detects hydrocarbons flame only.
Please note: the UV-IR-F model does not see hydroxyl and hydrogen fires.

All FGD flame detectors from Fire and Gas Detection Technologies are reliable and can address fast eruptions of fire down to slow, growing fires thanks to the UV-IR technology used.  They have a high immunity to false alarms but are also highly sensitive to genuine fires up to 100 feet (30m) away or 1 foot for a n-heptane pan fire.  Please refer to the product datasheet in our downloads section for more information on the detection time, distance, immunity and response times.

Key Features
  • Operable in all weather and light conditions
  • Provide UV and IR warning levels of 0-20mA (current output warning when elevated UV or IR radiation is detected)
  • Include a window heater to avoid any condensation or icing
  • Carry out a Built-In-Test (BIT) which is an automatic and manual internal self-test of the window cleanliness and general operation
  • Data/Event logger capability where alarms, faults and other relevant events are logged to a non-volatile memory
  • The field of view for IR detection is 90° Horizontal and 80° Vertical
Specifications

Please refer to the Datasheet for a full specification and differences between models

Fire Detection Time Delay

0-30 seconds

Size

5.51 x 3.54 × 3.54″ (140×90×90mm)

Weight

6.6 lbs. (3.0 kg)

Temperature Range

Operating: -67°F to +167°F (-55°C to +75°C)
Option: -67°F to +185°F (-55°C to +85°C)
Storage: -67°F to +185°F (-55°C to +85°C)

Humidity

Up to 99% (RH), non-condensing

Ingress Protection

IP66 & 68 (2m, 24hr); NEMA 4X & 6P

Warranty

5 Years

Approvals for UV-IR

Explosion Proof
ATEX: II 2 G D
Ex db IIC T5 Gb or Ex db eb IIC T5 Gb and Ex tb IIIC T95°C Db-55°C<Ta<75°C
Ex db IIC T4 Gb or Ex db eb IIC T4 Gb and Ex tb IIIC T105°C Db-55°C<Ta<85°C

IECEx
Ex db IIC T5 Gb -50°C≤Ta≤75°C

Ex db IIC T4 Gb -50°C≤Ta≤85°C



FM & FMC
Class I, Div. 1, Groups B, C & D; T4
Class I, Zone 1, AEx/Ex db IIC T4 Gb
T4-50°C≤Ta≤85°C
T5-50°C≤Ta≤75°C



Performance

ANSI FM 3260
EN 54-10

Functional Safety (pending)

SIL2, per IEC 61508

DNV GL
Designed to meet standard 2.4 for open desk locations
Temperature class D; Vibration Class A, B and C


EAC TR CU
