PRODUCT CODE
GM-S5000

GM S5000 by MSA is a Gas Monitor for the detection of oxygen, combustible and toxic gases in the toughest of applications ranging from -55°C to +75°C. For more information on the configuration of this product contact our sales team on 0141 771 7749.

* Required Fields

    £4,344.00 £3,620.00

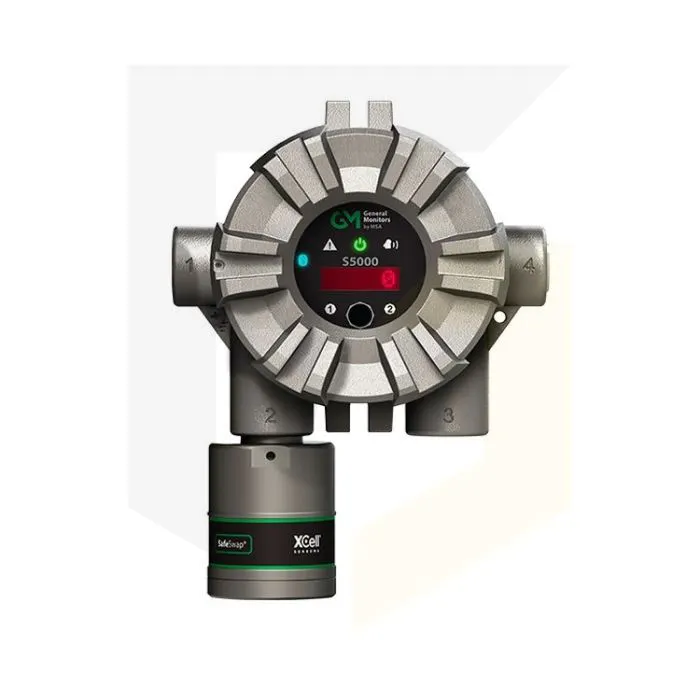

    GM S5000 Gas Monitor by MSA

    GM S5000 Gas Monitor by MSA

    The S5000 gas monitor by General Monitors is the most robust gas detector on the market, developed for detecting oxygen, combustible and toxic gases in extreme weather and environmental conditions. The S5000 is capable of being used in the toughest of applications ranging from -55°C to +75°C demonstrating it is one of the most reliable gas detectors available. The touch button interface being the first in the industry, allows for a tool free user experience and separates the S5000 from its competition.

    The GM S5000 self-checks 4x per day resulting in worry free operation, better stability and increased calibration cycles (up to 18 months for H2S and CO) thanks to MSA’s patented TruCal Technology just like the MSA Ultima X5000. Diffusion supervision ensures sensor inlets are not blocked and impacting detection as an acoustic signal is sent every 6 hours enabling gas to reach the sensor.

    The unit will go into fault mode if the sensor inlet is blocked until the obstruction is cleared, then returns to normal operation once the obstruction is removed. Gas sensors can be replaced quickly without turning off the device due to MSA’s SafeSwap technology reinforcing the unique benefits of this product.

    The GM S5000 can be used for various applications such as: refineries, CNG maintenance facilities, fuel loading facilities, petrochemical, oil well logging, LNG/LPG processing and storage, drilling and production platforms and compressor stations.

    Please make use of the ATO Configurator in the downloads section to build your own S5000 specific to the needs of your application.

    Key Features
    • Dual sensing capabilities
    • Gas sensors can be remotely mounted up to 100m away
    • Wireless technology
    • Customisable Tag attachment
    • Identical footprint to S4000 Series
    • Status indicators – Power, Fault and Alarm conditions
    Specifications

    Product Specifications

    Combustible Gas Sensor Type

    Catalytic Bead (Passive Comb, XCell Comb) Infrared (IR400)

    Toxic Gas Sensor Type

    Carbon Monoxide CO (XCell Toxic)

    Carbon Monoxide CO H2-Resistant (XCell Toxic) Hydrogen Sulphide H2S (Passive MOS, XCell Toxic) Oxygen O2 (XCell O2)

    Sulphur Dioxide SO2 (XCell SO2)

    Sensor Measuring Ranges

    Carbon Monoxide CO (XCell Toxic)

    Carbon Monoxide CO H2-Resistant (XCell Toxic)

    Hydrogen Sulphide H2S (Passive MOS, XCell Toxic)

    Oxygen O2 (XCell O2)

    Sulphur Dioxide SO2 (XCell SO2)

    Typical Sensor Life

    5 years – catalytic bead, MOS, XCell Sensor

    10 years - infrared

    Sensor Performance

    T90 (Typical)

    Repeatability

    Zero Drift (per year)

    Passive Comb

    <30 sec

    +/- 3% LEL

    <5% LEL

    Passive MOS

    <60 sec

    +/- 2 ppm

    <0.1 ppm

    IR400

    <3 sec

    +/- 3% LEL

    <2% LEL

    XCell Comb

    <30 sec

    +/- 1% LEL

    <5% LEL

    XCell H2S

    <23 sec

    +/- 3%

    <1% full scale

    XCell CO

    <11 sec

    +/- 3%

    <1% full scale

    XCell O2

    <11 sec

    ≤ +/- 0.1% Vol

    0.2% Vol

    XCell SO2

    <6 sec

    +/- 1%

    ≤1%FS per mo

    Approvals Certification

    Divisions (US/Canada)

    Class I, Div 1&2, Groups A, B, C & D T5/T4; Class II, Div 1&2, Groups E, F & G, T6; Class III Type 4X, IP66



    US Zones

    Class I, Zone 1 AEx db IIC T5 Gb Class I, Zone 2 AEx nA nC IIC T4 Gc Zone 21 AEx tb IIIC T85°C Db



    Canadian Zones

    /ATEX/IECEx Ex db IIC T5 Gb Ex nA nC IIC T4 Gc Ex tb IIIC T85°C Db

    (see manual for complete CSA listings)

    CE Marketing Directives

    Complies with EMC, RED, ATEX

    Warranty

    S5000 transmitter: 2 years XCell Sensors: 3 years Passive Comb, Passive MOS, IR400: 2 years

    Approvals

    CSA, ATEX, IECEx,INMETRO, ABS, DNV-GL Marine, CE Marking. Complies with C22.2 No. 152, FM 6320, ANSI/ISA/CSA/IEC/EN 60079-29-1, ANSI/ISA 12.13.01. Suitable for SIL 2.

    Dimensions

    Housing (W x H)

    W/ Passive Sensor

    W/ Digital sensor

    6.37’’ x 5.38’’ [162 mm x 137 mm]

    6.37’’ x 7.62’’ [162 mm x 193 mm

    6.37’’ x 10.4’’ [162 mm x 265 mm]

    Lid (Depth)

    4.25’’ [108 mm]

    Weight

    8.0 lbs (3.6kg) - 316 SS

    Environment Specifications

    Operating Temperature Range

    Transmitter: -55°C to + 75°C

    CB (sintered, Zones): -40°C to +70°C

    CB (screened, Div): -40°C to +75°C

    MOS (sintered, Zones): -40°C to +70°C

    MOS (screened, Div): -40°C to +75°C

    IR (CSA): -40°C to +75°C

    IR (ATEX/IECEx): -60°C to +75°C

    XCell (Comb): -55°C to +60°C

    XCell (Toxic/O2): -40°C to +60°C

    Storage Temperature Range

    -50°C to +85°C (housing, IR400 and passive sensors) -40°C to +60°C (XCell sensors)

    Operating Humidity Range

    10 to 95% (XCell sensors, IR400)

    10 to 90% (Passive Comb)

    0 to 95% (Passive H2S)

    Mechanical Specifications

    Input Power

    24 VDC nominal, 12 to 30 VDC

    Signal output

    Dual 4-20 mA current source, HART, Modbus, Bluetooth. Optional: w/o Bluetooth

    Relay ratings

    5A @ 30VDC; 5A @220 VAC (3X) SPDT – fault, warn, alarm

    Relay modes

    Common, discrete, horn

    Nominal Max Power (W/ Relays)

    Passive Comb 6.0 W

    Passive MOS 10.8 W

    IR400 8.9 W

    XCell Comb 6.0 W

    XCell Toxic & O2 3.6 W

    IR400 + XCell Comb 11.8 W

    IR400 + XCell Toxic orO2 9.6 W

    Dual XCell Toxic or O2 4.3 W

    Dual XCell Comb 8.4 W

    XCell Comb + XCell Toxic or O2 6.7 W

    Status Indicators

    4-digit scrolling LED, icons depicting fault, warn, alarm, Bluetooth, 1 and 2 to indicate sensor reading displayed

    RS-485 Output

    Modbus RTU, suitable for linking up to 128 units or up to 247 units with repeaters

    Baud rate

    2400, 4800, 9600, 19200, 38400, 115200

    HART

    HART 7, HART device description language available

    Faults monitored

    Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, calibration faults, analog output mismatch fault

    Cable requirements

    3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Accommodates up to 12 AWG Refer to manual for mounting distances
