GMI PS500 Multi Gas Detector (Pumped and Diffusion) with Datalogging and Long-Duration Battery
GMI PS500 Multi Gas Detector (Pumped and Diffusion) with Datalogging and Long-Duration Battery GMI PS500 Multi Gas Detector (Pumped and Diffusion) with Datalogging and Long-Duration Battery

Product Code -

Price From: £1,104.00 exc VAT £1,104.00 inc VAT £1,324.80

Price as configured: exc VAT £0.00 inc VAT £0.00

Available configurations include:
- LEL/O2/H2S/CO & SO2
- LEL/O2/H2S/CO & CO2
- LEL/O2/H2S/CO & NH3 (Pumped Only)

Price as configured: exc VAT £0.00 inc VAT £0.00

Availability: In stock

Description / Features / Spec

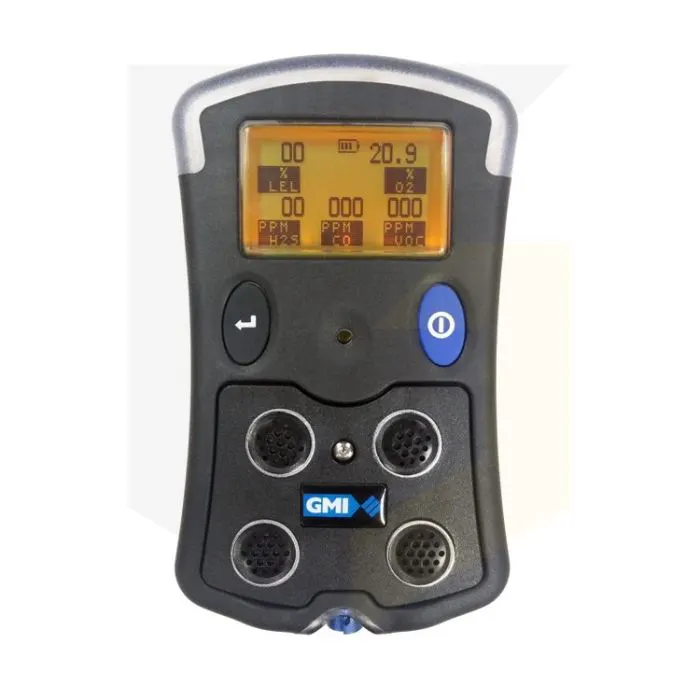

GMI PS500 Multi Gas Detector (Pumped and Diffusion) with Datalogging and Long-Duration Battery

The GMI PS500 is a portable 5 gas monitor, designed to be used in confined space applications.  It comes in a number of different configurations including the following:

Available in Pumped & Diffusion

  • LEL/O2/H2S/CO & VOC
  • LEL/O2/H2S/CO & SO2
  • LEL/O2/H2S/CO & CO2

Available in a pumped model only is LEL/O2/H2S/CO & NH3.  Should you wish to receive a quotation for an alternative configuration then please contact us on 0141 771 7749 or [email protected].  There are over 15 'plug and play' smart sensors available and this gives the users flexibility.

The PS500 has a simple userface and can withstand most tough industrial environments.  Depending on the application the pump can be easily turned on or off.

Key Features

  • Compatible with GMI's automatic bump and calibration station
  • Includes audible and visual alarms
  • Datalogging function allows data to be retained for calibration certificates, data management and event logging
  • The unit is robust and is rated to IP65 (dust tight and water resistant)
  • Casing is made of a high impact rubberised polycarbonate material



140 x 85 x 45mm / 5.5" x 3.3" x 1.7" (H x W x D)


0.4kg (14oz)


0 to 98% non-condensing


  • Timed: 24 hours of timed logs at 1 log per minute
  • Session: Minimum of 180 logs
  • Calibration: Minimum of 8 calibration logs

Battery Life

NiMH rechargeable battery - 12 hr. minimum with pump


Maximum tubing length - 30m / 98 ft.  (Response times increased by approx. 1 second for every meter / 3 ft. of tubing used)


2 years


  • *UL 913 Class I, Div 1 Groups A,B,C, D
  • MED (0038/YY) - Module B & E
  • CE 0518
  • ATEX II 2 G EEx iad IIC T3 / T4

*Excludes NDIR sensor option
