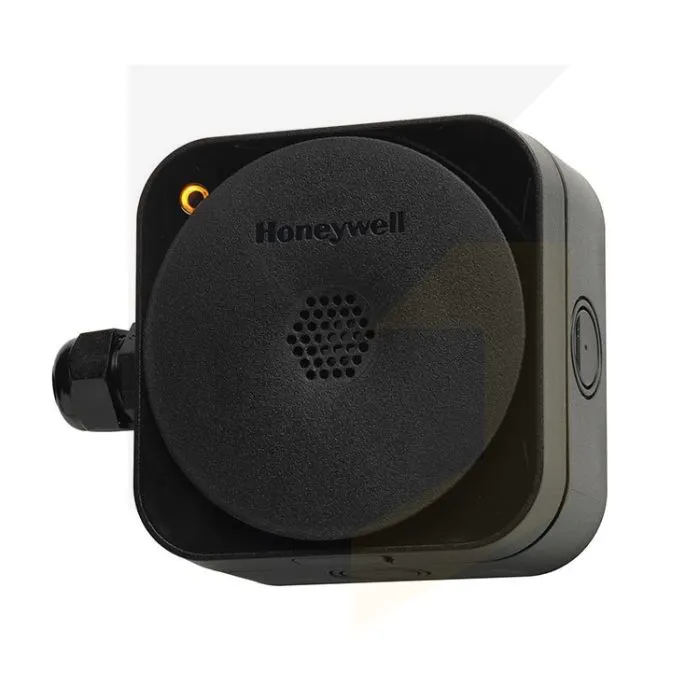

Sensepoint XCL 4-20mA Charcoal Bluetooth (without Relay)
The Sensepoint XCL 4-20mA Charcoal Bluetooth (without Relay) is an IP65 rated fixed point gas leak detection system designed by Honeywell in order to meet the requirements of commercial and light industrial applications. It is quick to install the system as everything that is required comes in the packaging and the inclusion of Bluetooth gives the system greater functionalities. The system is designed with familiar smartphone technology which makes maintenance simple and can save both time and money.
The system can be typically used in applications such as laboratories and hospitals. The datasheet includes more information on the applications for the Sensepoint XCL 4-20mA Charcoal Bluetooth. The 4-20mA output is an analogue signal and is the standard communication method between the device and gas detector control panel. The Bluetooth features allow the system to connect to a user’s smartphone via the dedicated app. This means the user can perform certain tasks such as being able to view diagnostic information.
The Sensepoint XCL 4-20mA Charcoal Bluetooth without relay uses a multi-colour visual indicator to alert the user of the status of the system to warn of danger and to identify the detectors that need attention. This would make the system user friendly and easy to understand. The system has a choice of sensors available and they include flammable, oxygen or toxic and you can get in touch with us if you would like more information on those.
Available options include;
Part Number |
Description |
SPLCF6BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , Catalytic Sensor 0 to 100% LEL(CH4 calibrated), BLE enabled, Charcoal |
SPLCO1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , Oxygen 0 to 25% vol , BLE enabled, Charcoal |
SPLCC1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA ,CO 300ppm (adjustable 50-1000ppm) , BLE enabled, Charcoal |
SPLCH1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , H2S(L) 50ppm (adjustable 10-50ppm) , BLE enabled, Charcoal |
SPLCH2BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , H2S(H) 100ppm (adjustable 50-200ppm) , BLE enabled, Charcoal |
SPLCG1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA ,, H2 1000ppm (fixed), BLE enabled, Charcoal |
SPLCN1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , NO2 20ppm (adjustable 5-50ppm), BLE enabled, Charcoal |
SPLCA1BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , NH3(L) 100ppm (adjustable 50-200ppm), BLE enabled, Charcoal |
SPLCB3BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , CO2 5000 ppm (adjustable 1000 -5000 ppm), BLE enabled, Charcoal |
SPLCB4BAXCXNZZ |
Sensepoint XCL, 4 to 20 mA , CO2 5 % v/v (adjustable 1.0 % v/v -5% v/v), BLE enabled, Charcoal |
- The design aesthetics allows the system to blend into the environment
- Cost effective
- The dedicated app is available to download on both Android and Apple devices
- The Bluetooth functionality removes the need to physically connect to the system
- The system works with industry standard controllers including the Touchpoint Plus
Please refer to the datasheet for more information |
|
Dimensions |
113 x 113 x 59 mm (4.4 x 4.4 x 2.3 in) |
Weight |
500 g (1.1 lb) |
Casing material |
Polycarbonate (Charcoal) |
Lifetime |
10 years (excludes sensor) |
Connection type |
Pluggable rising clamp style
|
Available sensors: Flammable, Toxic Gases and Oxygen Ranges |
|
Power supply (Nominal DC Input Voltage) |
24 V DC† |
Nominal AC Input Voltage |
24 V AC‡, 50/60 Hz |
Maximum Inrush Current |
850 mA |
Output (Analog Output) |
0 to 22 mA |
Digital Output |
Modbus RTU |
Relay Output |
2 relays rated at 24 V DC / 240 V AC, 5 A |
Maximum Power Consumption (mA Version) |
< 1.2 W (toxic), < 1.7 W (flammable and CO2) |
Modbus Versions |
< 0.7 W (toxic), < 1.2 W (flammable and CO2) |
Relay Versions |
Additional 0.6 W total |
Connection Type |
Pluggable rising clamp style, 0.5 to 1.5 mm2 , 20 to 16 AWG. |
User Interface Visual Indicator |
|
Wireless Interface |
Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m away (mobile device dependent). Use a compatible smartphone or other mobile device running Android 4.3 or above. |
Operating Temperature |
−20 to 50°C (−4 to 122 °F) 0 to 30°C |
Storage Temperature |
(32 to 86 °F) |
Humidity |
15 to 90% RH (non-condensing) |
Atmospheric Pressure |
90 to 110 kPa |
Approvals Electrical Safety |
|
EMC |
EN 50270 |
Radio |
RED, FCC |
Other |
UL2075 (CO and CH4), AS 1668.2 |
- † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
- ‡ All versions: 20 to 27 VAC
