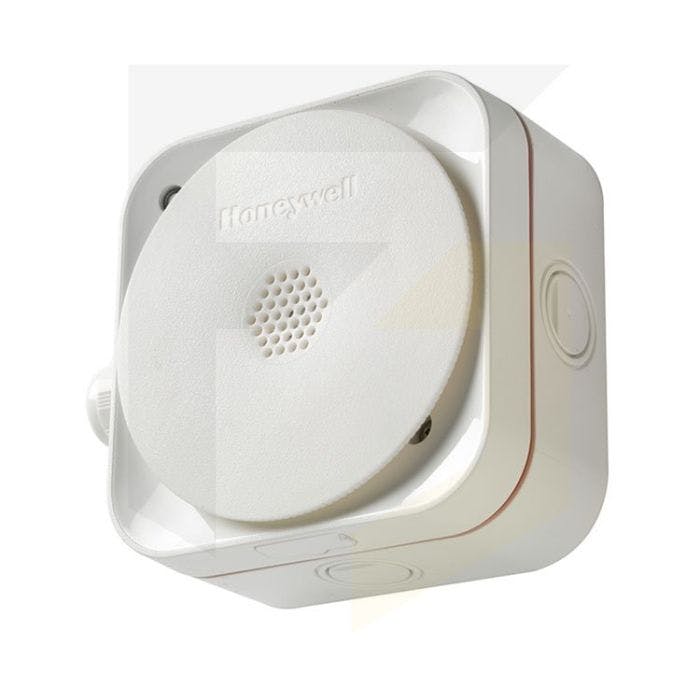

Honeywell Sensepoint XCL Bluetooth/4-20mA/White

PRODUCT CODE:
HONEYWELL-SENSEPOINT-XCL-420-WHITE

The Sensepoint XCL 4-20mA Bluetooth White has been designed to meet the needs of commercial and light industrial applications as a fixed gas leak detection system.
Loading...
£492.00
Final product price inc VAT

Product description

Sensepoint XCL 4-20mA Bluetooth White

The Sensepoint XCL 4-20mA Bluetooth White is a fixed-point gas leak detector that is manufactured to meet the requirements of both commercial and light industrial applications. The system is easy to operate and straightforward to maintain saving users time as a result. It can be configured with a wide range of control systems as it has an industry standard 4-20mA source output.  It also comes with factory set alarm points.

This system is IP65-rated which means it is dust and water resistant providing users reassurance that the device is protected against dust and against water projected from a nozzle.

The lifespan of the device is 10 years (excluding the sensors), which makes the Sensepoint XCL 4-20mA Bluetooth a more long-term solution for an organisation’s gas leak detection needs.  There are also other variations of the Sensepoint XCL 4-20mA Bluetooth White available and more information can be found below.

The casing material of the Sensepoint XCL 4-20mA Bluetooth White is made of polycarbonate and the system comes with a quick start guide and an M20 gland. Accessories that are available for this system include duct mount kit and a rugged field communicator.  For more information on the range of accessories please get in touch with us.

Available options include;

Part Number

Description

SPLCF6BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , Catalytic Sensor 0 to 100% LEL(CH4 calibrated), BLE enabled, White

SPLCO1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , Oxygen  0 to 25%  vol , BLE enabled, White

SPLCC1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA ,CO  300ppm (adjustable 50-1000ppm) , BLE enabled, White

SPLCH1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , H2S 50.0ppm , BLE enabled, White

SPLCH2BAXWXNZZ

Sensepoint XCL, 4 to 20 mA ,  H2S(H) 100ppm (adjustable 50-200ppm) , BLE enabled, White

SPLCG1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA ,,  H2 1000ppm (fixed), BLE enabled, White

SPLCN1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , NO2 20ppm (adjustable 5-50ppm), BLE enabled, White

SPLCA1BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , NH3(L) 100ppm (adjustable 50-200ppm), BLE enabled, White

SPLCB3BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , CO2 5000 ppm (adjustable 1000 -5000 ppm), BLE enabled, White

SPLCB4BAXWXNZZ

Sensepoint XCL, 4 to 20 mA , Co2 5 % v/v (adjustable 1.0 % v/v -5% v/v), BLE enabled, White

Key Features

  • Works with the Touchpoint Plus and other industry standard controllers
  • The system comes with a gassing port allowing one to bump test it if they are installed in difficult to access locations
  • Applications include hospitals, retail sites and hotel and leisure – please see the datasheet for more information
  • Ideal for public environments
  • Can be used with the dedicated smartphone app to perform various tasks
Specification

Please refer to the datasheet for more information

Dimensions

113 x 113 x 59 mm (4.4 x 4.4 x 2.3 in)

Weight

500 g (1.1 lb)

Casing material

Polycarbonate (white)

Lifetime

10 years (excludes sensor)

Connection type

Pluggable rising clamp style

  • 0.5 to 1.5 mm2
  • 20 to 16 AWG

Available sensors: Flammable, Toxic Gases and Oxygen Ranges


  • Combustible: 0 to 100 % LEL (factory calibrated to Methane)
  • O₂: 0 to 25% vol
  • CO: 300 ppm (adjustable between 50 and 1000 ppm)
  • H₂: 1000 ppm
  • H₂S Low Range: 50 ppm (adjustable between 10 and 50 ppm)
  • H₂S High Range: 100 ppm (adjustable between 50 and 200 ppm)
  • NO₂: 20 ppm (adjustable between 5 and 50 ppm)
  • NH₃: 200 ppm (adjustable between 50 and 200 ppm)
  • CO2 (ppm range): 5,000 ppm (adjustable between 1,000 and 5,000 ppm)
  • CO2 (% vol range): 5.0% vol (adjustable between 1.0 and 5.0% vol)

Power supply (Nominal DC Input Voltage)

24 V DC†

Nominal AC Input Voltage

24 V AC‡, 50/60 Hz

Maximum Inrush Current

850 mA

Output (Analog Output)

0 to 22 mA

Digital Output

Modbus RTU

Relay Output

2 relays rated at 24 V DC / 240 V AC, 5 A

Maximum Power Consumption (mA Version)

< 1.2 W (toxic), < 1.7 W (flammable and CO2)

Modbus Versions

< 0.7 W (toxic), < 1.2 W (flammable and CO2)

Relay Versions

Additional 0.6 W total

Connection Type

Pluggable rising clamp style

  • 0.5 to 1.5 mm2
  • 20 to 16 AWG

User Interface Visual Indicator
  • Multi-colour LED light ring
  • Green: normal§
  • Flashing red: Alarm
  • Flashing green and yellow: Warning
  • Flashing yellow: Fault
  • Solid yellow: Inhibited
  • Flashing blue: Bluetooth pairing in progress
  • Solid blue: Bluetooth connection established

Wireless Interface

Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m away (mobile device dependent). Use a compatible smartphone or other mobile device running Android 4.3 or above.

Operating Temperature

−20 to 50°C (−4 to 122 °F) 0 to 30°C

Storage Temperature

(32 to 86 °F)

Humidity

15 to 90% RH (non-condensing)

Atmospheric Pressure

90 to 110 kPa

Approvals Electrical Safety
  • EN/UL/IEC61010-1
  • CSA-C22.2 No. 61010-1-12

EMC

EN 50270

Radio

RED, FCC

Other

UL2075 (CO and CH4), AS 1668.2
  • † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
  • ‡ All versions: 20 to 27 VAC
Spares

  • Accessories

    SPXCLCAL - Sensepoint XCL Calibration/Flow Cap

    SPXCLDMK - Sensepoint XCL Duct Mount Kit

    SPXCLRGP - Sensepoint XCL Fixed Remote Gassing Port

    SPXCLGLD - Sensepoint XCL M20 cable glands, 10 pack

    188-200-050 - Rugged Android Hand-Held Smart Device with Camera

    188-200-060 - Rugged Android Hand-Held Smart Device without Camera

    188-200-070 - Rugged Hand-Held Smart Device Yellow Leather Case

    188-200-080 - Rugged Hand-Held Smart Device Cradle

    188-200-090 - Rugged Hand-Held Smart Device Clip for Case or Cradle

    188-200-100 - Rugged Hand-Held Smart Device Docking Station

    188-200-110 - Rugged Hand-Held Smart Device Charging Cable

    188-200-120 - Rugged Hand-Held Smart Device EU/UK/US/AU Charger

    188-200-130 - Rugged Hand-Held Smart Device Vehicle Charger

  • Sensors

    SPXCLZZF6SS - Sensepoint XCL Replacement Sensor - Flam Catalytic

    SPXCLZZO1SS - Sensepoint XCL Replacement Sensor - O2

    SPXCLRLC1SS - Sensepoint XCL/XRL Replacement Sensor - CO

    SPXCLRLH1SS - Sensepoint XCL/XRL Replacement Sensor - H2S (Low and High Range)

    SPXCLRLG1SS - Sensepoint XCL/XRL Replacement Sensor - H2

    SPXCLRLN1SS - Sensepoint XCL/XRL Replacement Sensor - NO2

    SPXCLRLA1SS - Sensepoint XCL/XRL Replacement Sensor - NH3

  • Spares

    SPXCLFLT - Sensepoint XCL Replacement Filter - Pack of 10 ea.

    SPXCLSK1 - Sensepoint XCL Service Kit

    SPXCLSCC - Sensepoint XCL Sensor Cover - Charcoal

    SPXCLSCW - Sensepoint XCL Sensor Cover - White

    SPXCLDCC - Sensepoint XCL Decal Cover - Charcoal

    SPXCLDCW - Sensepoint XCL Decal Cover - White
