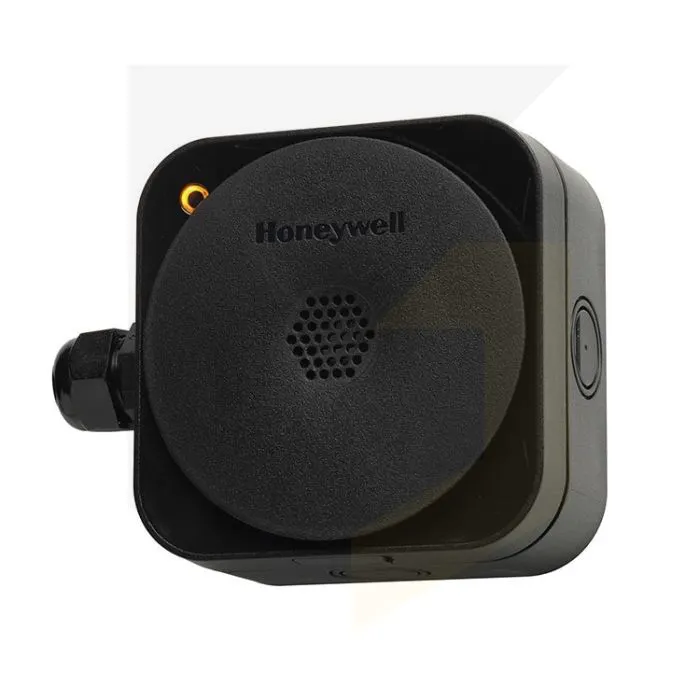

Sensepoint XCL Charcoal Bluetooth with Modbus
The Sensepoint XCL Charcoal Bluetooth (with Modbus) is a fixed-point gas leak detection device manufactured by Honeywell in order to meet the needs of both commercial and light industrial applications. The use of the Bluetooth functionality allows you to install, commission, manage and generate reports from their smartphone with the dedicated Sensepoint app.
The device may be used in certain applications from cosmetic labs to commercial kitchens and fuel stations. For more information on where the Sensepoint XCL Bluetooth may be used please contact us or view the datasheet provided. The system allows for reporting to be automated as the application provides diagnostic data and other information of importance. This allows for administration time to be reduced.
The use of a multi-coloured indicator allows individuals to see the status of the detectors. The system also has an ingress protection of IP65 which means that it is both dust and water resistant. To get more out of the device there are accessories available such as the calibration cap. To find out the full range of accessories please get in touch with us.
The system has been designed to blend into the user’s environment as it was made with aesthetics as a priority.
Available options include;
Part Number |
Description |
SPLCF6BMXCXNZZ |
Sensepoint XCL, Modbus , Catalytic Sensor 0 to 100% LEL(CH4 calibrated), BLE enabled, Charcoal |
SPLCO1BMXCXNZZ |
Sensepoint XCL, Modbus , Oxygen 0 to 25% vol , BLE enabled, Charcoal |
SPLCC1BMXCXNZZ |
Sensepoint XCL, Modbus ,CO 300ppm (adjustable 50-1000ppm) , BLE enabled, Charcoal |
SPLCH1BMXCXNZZ |
Sensepoint XCL, Modbus , H2S 50.0ppm , BLE enabled, Charcoal |
SPLCH2BMXCXNZZ |
Sensepoint XCL, Modbus , H2S(H) 100ppm (adjustable 50-200ppm) , BLE enabled, Charcoal |
SPLCG1BMXCXNZZ |
Sensepoint XCL, Modbus ,, H2 1000ppm (fixed), BLE enabled, Charcoal |
SPLCN1BMXCXNZZ |
Sensepoint XCL, Modbus , NO2 20ppm (adjustable 5-50ppm), BLE enabled, Charcoal |
SPLCA1BMXCXNZZ |
Sensepoint XCL, Modbus , NH3(L) 100ppm (adjustable 50-200ppm), BLE enabled, Charcoal |
SPLCB3BMXCXNZZ |
Sensepoint XCL, Modbus , CO2 5000 ppm (adjustable 1000 -5000 ppm), BLE enabled, Charcoal |
SPLCB4BMXCXNZZ |
Sensepoint XCL, Modbus , CO2 5 % v/v (adjustable 1.0 % v/v -5% v/v), BLE enabled, Charcoal |
- Designed to be mounted on a wall ensuring it does not get in the way of one’s daily operations
- Ability to use the system with a smartphone
- Quick to get the system up and running
- Cost effective solution for commercial and light industrial gas detection needs
Please refer to the datasheet for more information |
|
Dimensions |
113 x 113 x 59 mm (4.4 x 4.4 x 2.3 in ) |
Weight |
500 g (1.1 lb) |
Casing material |
Polycarbonate (Charcoal) |
Lifetime |
10 years (excludes sensor) |
Connection type |
|
Available sensors: Flammable, Toxic Gases & Oxygen ranges
|
|
Power supply (Nominal DC Input Voltage) |
24 V DC† |
Nominal AC Input Voltage |
24 V AC‡, 50/60 Hz |
Maximum Inrush Current |
850 mA |
Output (Analog Output) |
0 to 22 mA |
Digital Output |
Modbus RTU |
Relay Output |
2 relays rated at 24 V DC / 240 V AC, 5 A |
Maximum Power Consumption (mA Version) |
< 1.2 W (toxic), < 1.7 W (flammable and CO2) |
Modbus Versions |
< 0.7 W (toxic), < 1.2 W (flammable and CO2) |
Relay Versions |
Additional 0.6 W total |
Connection Type |
Pluggable rising clamp style
|
User Interface Visual Indicator |
|
Wireless Interface |
Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m away (mobile device dependent). Use a compatible smartphone or other mobile device running Android 4.3 or above. |
Operating Temperature |
−20 to 50°C (−4 to 122 °F) 0 to 30°C |
Storage Temperature |
(32 to 86 °F) |
Humidity |
15 to 90% RH (non-condensing) |
Atmospheric Pressure |
90 to 110 kPa |
Approvals Electrical Safety |
|
EMC |
EN 50270 |
Radio |
RED / FCC |
Other |
|
- † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
- ‡ All versions: 20 to 27 VAC
