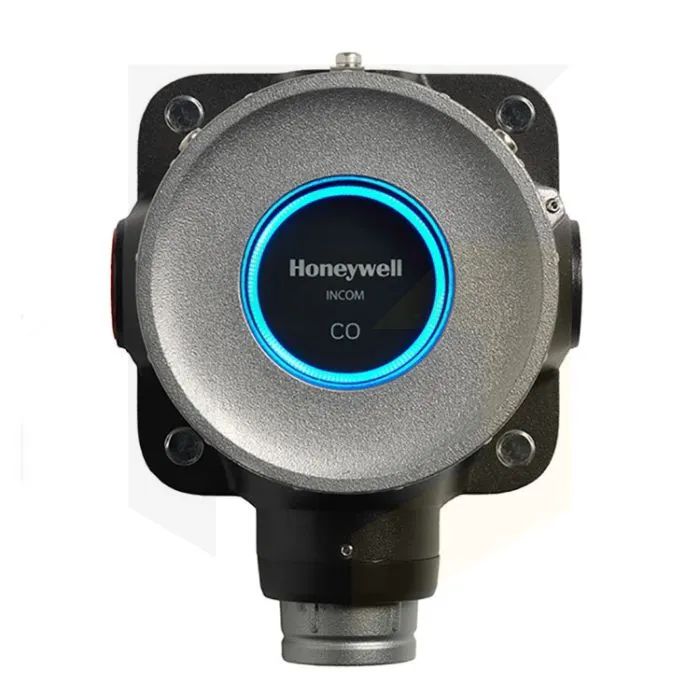

Sensepoint XRL Bluetooth Charcoal 4-20mA
The Honeywell Sensepoint Bluetooth Charcoal 4-20mA is a fixed-point gas leak detection system that has been manufactured to meet the requirements of industrial applications. The case material of the device is made from aluminium and the system uses a multi coloured LED indicator that changes colour to alert the user of the status of the detector and to identify which detectors need attention or if they are warning one of danger.
The advantages of using this system is that it is quick and easy to install which can save valuable time. The time spent on detector maintenance is reduced thanks to the devices ability to connect to a user-friendly smartphone app. To initially calibrate the device all that is required is the dedicated Sensepoint mobile application and a calibration gas cylinder removing the need. It’s easier to carry this out on your own and may eliminate the need for walkie-talkie guidance from another person.
The smartphone-based experience of the Sensepoint XRL Bluetooth Charcoal 4-20mA allows for quicker calibration, bump testing and configuration. The system operates at a temperature of −40 to 65 °C (−40 to 140 °F) and is NEMA 4X/IP66 protected allowing the device to be used outdoors. The device does have a range of accessories that are available including weather protection and collecting cone. Get in touch with us for a full range and more information.
Available options include;
Part Number |
Description |
SPLIO1BAXCMAZZ |
XRL, 4-20mA, O2 0 to 25% vol, ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIC1BAXCMAZZ |
XRL, 4-20mA, CO 300ppm (adjustable 50 & 1000 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIH1BAXCMAZZ |
XRL, 4-20mA, H2S 50ppm (adjustable 10 & 50 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIH2BAXCMAZZ |
XRL, 4-20mA, H2S 100 ppm (adjustable 50 & 200 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIG1BAXCMAZZ |
XRL, 4-20mA, H2 1000 ppm , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIN1BAXCMAZZ |
XRL, 4-20mA, NO2 20 ppm , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
SPLIF6BAXCMAZZ |
XRL, 4-20mA, Catlaytic 100% LEL( adjustable between 20 & 100% LEL) , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Charcoal, BLE Enabled |
- Clean aesthetics
- Compatible with the Touchpoint Plus controller
- Can be calibrated by one person
- System has a 10-year lifespan (not including the sensor)
- Uses Bluetooth Low Energy (BLE)
Dimensions |
118 x 159 x 93 mm / ( 4.4 x 6.2 x 3.6 in ) |
Weight |
1400 g (3.1 lb) |
Casing Material |
Aluminium alloy LM20 (charcoal) |
Ingress Protection Rating |
IP66, NEMA 4X |
Lifetime |
10 years (excludes sensor) |
Available sensors, flammable, toxic gases & oxygen ranges |
|
Power Supply DC Input Voltage |
24 V DC† |
AC Input Voltage |
24 V AC‡, 50/60 Hz |
Inrush Current |
850 mA |
Analog Output |
0 to 22 mA |
Digital Output |
Modbus RTU |
Maximum Power Consumption (mA Version) |
< 1.5 W (toxic), < 2.6 W (flammable) |
Modbus Versions |
< 1.0 W (toxic), < 2.0 W (flammable) |
Connection Type |
Pluggable rising clamp style
|
User Interface Visual Indicator |
|
Wireless Interface |
Bluetooth 4.0 (Bluetooth Low Energy). |
Operating Temperature |
−40 to 65 °C (−40 to 140 °F) |
Storage Temperature |
0 to 30 °C (32 to 86 °F) |
Humidity |
0 to 99% (non-condensing) |
Atmospheric Pressure |
90 to 110 kPa |
|
|
EMC |
EN 50270:2015 |
Radio |
RED, FCC, IC |
Hazardous Area |
|
Gas Performance |
CSA C22.2 No.152-M1984, UL 2075, AS 1668.2 |
- † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
- ‡ All versions: 20 to 27 VAC
- § LED behavior in normal condition can be changed by the user: green confidence flash, solid green or off.
