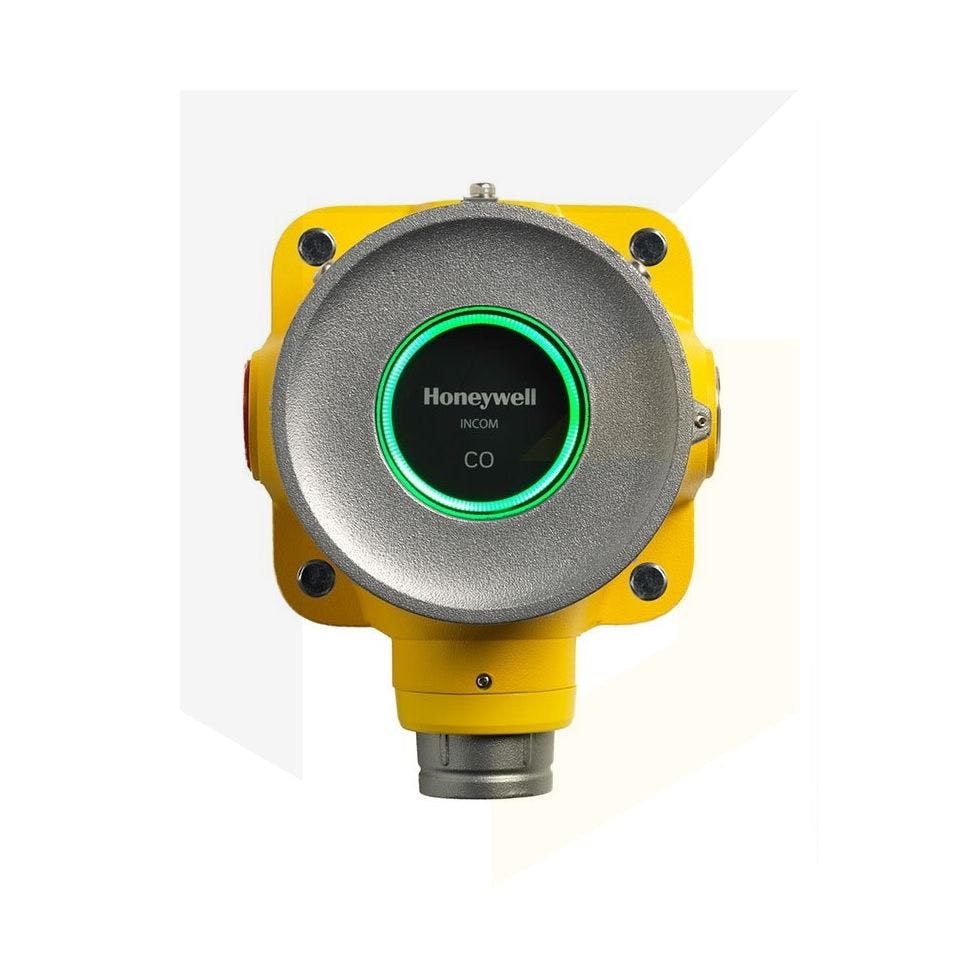

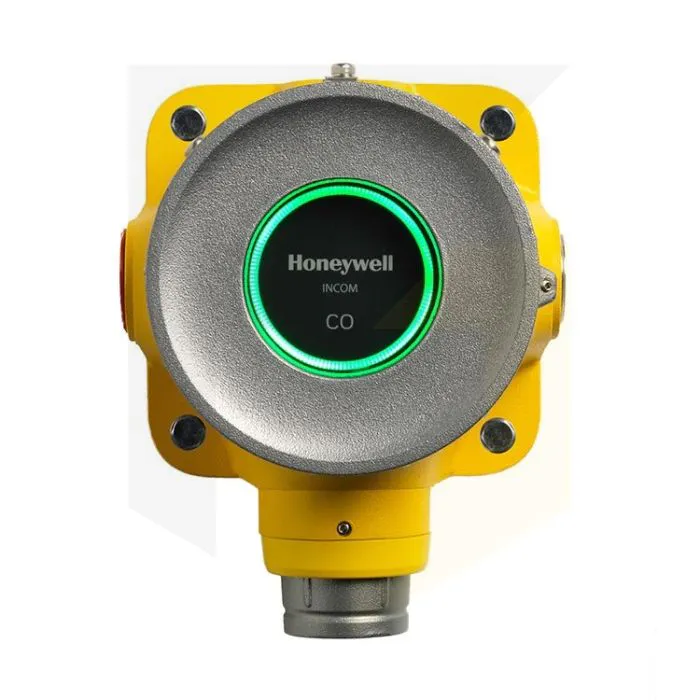

Honeywell Sensepoint XRL - Bluetooth/Yellow/Modbus

PRODUCT CODE:
HONEYWELL-SENSEPOINT-XRL-YELL-MOD

The Sensepoint XRL Bluetooth Yellow with Modbus is a system designed by Honeywell to meet the needs of industrial applications as a fixed-point gas leak detector.

Loading...
£856.00
Final product price inc VAT

Product description

Sensepoint XRL Bluetooth Yellow (with Modbus)

The Sensepoint XRL Bluetooth Yellow (with Modbus) is a system designed by Honeywell to meet the needs of industrial applications. The system is designed as a fixed-point gas leak detector with Bluetooth functionality allowing you to pair the system with a smartphone using the dedicated mobile app. This allows users of the system to be approximately 10 metres away and still be able to maintain and configure the device.

The inclusion of the modbus allows the Sensepoint XRL to transmit information to other systems. The Sensepoint XRL itself has a lifespan of 10 years (not including the sensor) making it a more permanent solution compared to other devices. One person can carry out calibration without them having to open the system and this saves time.  This functionality also removes the need for hot work permit.

The Sensepoint XRL Bluetooth Yellow with modbus can also be used with the Honeywell Touchpoint Plus controller and it perfectly complements the Sensepoint system. The Sensepoint XRL does have accessories available such as the flow housing and duct mount kit. For the full range and more information please contact our Sales Team. The IP66 rating means that the device can be used in an outdoor setting as it is dust and water resistant.

This system can be used in manufacturing facilities and factories, fuelling depots, petrochemical plants, vehicle test facilities, battery charging facilities and water treatment plants.

Available options include;

Sensepoint XRL, Bluetooth, Yellow, Modbus, ATEX/IECEx

Part Number

Description

SPLIO1BMXYMAZZ

XRL, Modbus, O2 0 to 25% vol, ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIC1BMXYMAZZ

XRL, Modbus, CO 300ppm (adjustable 50 & 1000 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIH1BMXYMAZZ

XRL, Modbus, H2S 50ppm (adjustable 10 & 50 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIH2BMXYMAZZ

XRL, Modbus, H2S 100 ppm (adjustable 50 & 200 ppm) ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIG1BMXYMAZZ

XRL, Modbus, H2 1000 ppm , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIN1BMXYMAZZ

XRL, Modbus, NO2 20 ppm , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

SPLIF6BMXYMAZZ

XRL, Modbus, Catlaytic 100% LEL( adjustable between 20 & 100% LEL) , ATEX/IECEx, NEMA 4X, IP66, 2 x M20, Yellow, BLE Enabled

Key Features

  • Familiar smartphone technology
  • Easy to read detector status – multi coloured
  • Bluetooth functionality allows one to use the smartphone app to maintain and configure the system from up to 10 m away
  • Can be managed without making a physical connection
Specification

Dimensions

118 x 159 x 93 mm ( 4.4 x 6.2 x 3.6 in )

Weight

1400 g (3.1 lb)

Casing Material

Aluminum alloy LM20 (yellow)

Ingress Protection Rating

IP66 (NEMA 4X)

Lifetime

10 years (excludes sensor)

Available sensors flammable, toxic gases and oxygen ranges
  • Combustible: O to 100 % LEL (adjustable between 20 and 100% LEL, Factory calibrated to Methane)
  • O₂: 0 to 25% vol
  • CO: O to 300 ppm (adjustable between 50 and 1000 ppm)
  • H₂: O to 1000 ppm
  • H₂S Low Range: 0 to 50 ppm (adjustable between 10 and 50 ppm)
  • H₂S High Range: 0 to 100 ppm (adjustable between 50 and 200 ppm)

Power Supply DC Input Voltage

24 V DC†

AC Input Voltage

24 V AC‡, 50/60 Hz

Inrush Current

850 mA

Analog Output

0 to 22 mA

Digital Output

Modbus RTU

Maximum Power Consumption (mA Versions)

< 1.5 W (toxic), < 2.6 W (flammable)

Modbus Versions

< 1.0 W (toxic), < 2.0 W (flammable)

Connection Type

Pluggable rising clamp style

  • 0.5 to 2.5 mm2
  • 20 to 13 AWG

User Interface / Visual Indicator
  • Multi-colour LED light ring
  • Flashing green: Normal§
  • Flashing red: Alarm
  • Flashing green and yellow: Warning
  • Flashing yellow: Fault
  • Solid yellow: Inhibited
  • Flashing blue: Bluetooth pairing in progress
  • Solid blue: Bluetooth connection established

Wireless Interface

Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m (30 ft) away (mobile device dependent). Use a compatible smartphone or other mobile device running Android 4.3 or above.

Operating Temperature

−40 to 65 °C (−40 to 140 °F)

Storage Temperature

0 to 30 °C (32 to 86 °F)

Humidity

0 to 99% (non-condensing)

Atmospheric Pressure

90 to 110 kPa

Certifications Electrical Safety
  • EN/IEC/UL 61010-1
  • CSA C22.2 No. 61010-1-12

EMC

EN 50270:2015

Radio

RED, FCC, IC

Hazardous Area
  • ATEX
  •  II 2 GD
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85 °C Db
  • Tamb −40 to +65 °C
  • IECEx
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85 °C Db
  • Tamb −40 to +65 °C
  • cULus
  • Class I, Division 1 & 2, Groups B, C and D
  • Class II, Division 1 & 2, Groups E, F and G
  • Class I, Zone 1, AEx db IIC T6
  • Zone 21, AEx tb IIIC T85°C, IP6X
  • Ex db IIC T6 GbX
  • Ex tb IIIC T85°C DbX
  • Tamb −40 to +65 °C, Temp Code T6

Gas Performance

CSA C22.2 No.152-M1984, UL 2075, AS 1668.2
  • † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
  • ‡ All versions: 20 to 27 VAC
  • § LED behavior in normal condition can be changed by the user: green confidence flash, solid green or off
Spares

  • Accesories

    SPXRLCAL - SPXRL-Calibration Cap

    SPXRLFLW - SPXRL-Flow Housing

    SPXRLDMK - SPXRL-Duct Mount Kit

    2308B0923 - Pole Mount Bracket Kit

    SPXCDWP - Weather Protection Cap

    SPXCDCC - Collecting Cone for use with lighter than air gases

    188-200-010 - Rugged Android Hand-Held Smart Device. CID1, Zone 1, ATEX, IECEx, NEC, with Camera

    188-200-020 - Rugged Android Hand-Held Smart Device. CID1, Zone 1, ATEX, IECEx, NEC, without Camera

    188-200-030 - Rugged Android Hand-Held Smart Device. CID2, Zone 2, ATEX, IECEx, NEC, with Camera

    188-200-040 - Rugged Android Hand-Held Smart Device. CID2, Zone 2, ATEX, IECEx, NEC, without Camera

    188-200-050 - Rugged Android Hand-Held Smart Device with Camera

    188-200-060 - Rugged Android Hand-Held Smart Device without Camera

    188-200-070 - Rugged Hand-Held Smart Device Yellow Leather Case

    188-200-080 - Rugged Hand-Held Smart Device Cradle

    188-200-090 - Rugged Hand-Held Smart Device Clip for Case or Cradle

    188-200-100 - Rugged Hand-Held Smart Device Docking Station

    188-200-110 - Rugged Hand-Held Smart Device Charging Cable

    188-200-120 - Rugged Hand-Held Smart Device EU/UK/US/AU Charger

    188-200-130 - Rugged Hand-Held Smart Device Vehicle Charger

  • Sensors

    SPXRLMAO1A - SPXRL-Module Set-mA-O2-ATEX/IECEx

    SPXRLMAC1A - SPXRL-Module Set-mA - CO-ATEX/IECEx

    SPXRLMAH1A - SPXRL-Module Set-mA - H2S Low Range-ATEX/IECEx

    SPXRLMAH2A - SPXRL-Module Set-mA - H2S High Range-ATEX/IECEx

    SPXRLMAG1A - SPXRL-Module Set-mA - H2-ATEX/IECEx

    SPXRLMAN1A - SPXRL-Module Set-mA - NO2-ATEX/IECEx

    SPXRLMAS1A - SPXRL-Module Set-mA - SO2-ATEX/IECEx

    SPXRLMAL1A - SPXRL-Module Set-mA - Cl2-ATEX/IECEx

    SPXRLMAF1A - SPXRL-Module Set-mA - Flammable Cat-ATEX/IECEx

    SPXRLMMO1A - SPXRL-Module Set-Modbus - O2-ATEX/IECEx

    SPXRLMMC1A - SPXRL-Module Set-Modbus - CO-ATEX/IECEx

    SPXRLMMH1A - SPXRL-Module Set-Modbus - H2S Low Range-ATEX/IECEx

    SPXRLMMH2A - SPXRL-Module Set-Modbus - H2S High Range-ATEX/IECEx

    SPXRLMMG1A - SPXRL-Module Set-Modbus - H2-ATEX/IECEx

    SPXRLMMN1A - SPXRL-Module Set-Modbus - NO2-ATEX/IECEx

    SPXRLMMS1A - SPXRL-Module Set-Modbus - SO2-ATEX/IECEx

    SPXRLMML1A - SPXRL-Module Set-Modbus - Cl2-ATEX/IECEx

    SPXRLMMF1A - SPXRL-Module Set-Modbus - Flammable Cat-ATEX/IECEx

    SPXZZRLF6SS - SPXRL-Replacement Sensor-Cat

    SPXCLZZO1SS - Sensepoint XCL/XRL Replacement Sensor - O2

    SPXCLRLC1SS - Sensepoint XCL/XRL Replacement Sensor - CO

    SPXCLRLH1SS - Sensepoint XCL/XRL Replacement Sensor - H2S (Low and High Range)

    SPXCLRLG1SS - Sensepoint XCL/XRL Replacement Sensor - H2

    SPXCLRLN1SS - Sensepoint XCL/XRL Replacement Sensor - NO2

    SPXZZRLS1SS - Sensepoint XRL Replacement Sensor - SO2

    SPXZZRLL1SS - Sensepoint XRL Replacement Sensor - Cl2

  • Spares

    SPXRLSK1 - SPXRL-Service Kit 2

    SPXRLSCP - SPXRL-Sensor Cover Spare

    SPXRLSCC - SPXRL-Sensor Trim Ring Spare-CHR

    SPXRLSCY - SPXRL-Sensor Trim Ring Spare-YEL

    SPXRLCOV - SPXRL-Top Cover Spare

    SPXRLSPN - SPXRL-Stopping Plug-3/4" NPT

    SPXRLSPM - SPXRL-Stopping Plug-M20
