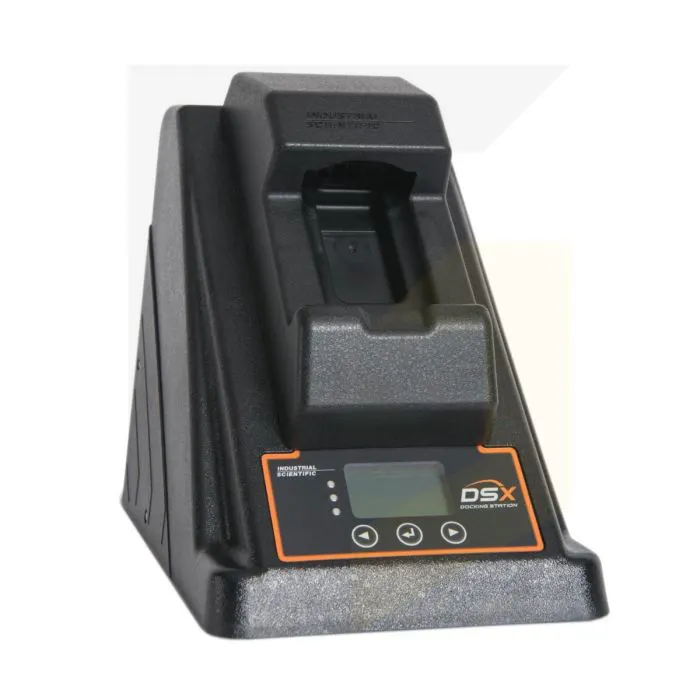

Industrial Scientific DSX Docking Station for Tango TX1
The DSX StandAlone Docking Station for the Tango TX1 is the most-simple DSX docking station that requires no PC or network configurations. The DSX has charging, maintenance and reporting capabilities such as bump testing and calibration with certificates, automated recording and auto-detection of calibration gas type. The device comes with 3 inlet ports and is powered and a mains cable. The DSX is also covered by an Industrial Scientific 2-year warranty.
INCLUDED IN THE BOX |
iGas card-reader and tubing assembly, cable retainer rubber pads and cable ties, power supply, power cord, fresh air fitting, USB data storage device, diffusion insert, pumped insert |
DIMENSIONS |
GasBadge Pro, Tango TX1: 22.7 x 16.9 x 27.3 cm (8.92 x 6.65 x 10.75 in) Ventis MX4, Ventis Pro Series: 24.9 x 16.9 x 27.3 cm (9.83 x 6.65 x 10.75 in) MX6 iBrid: 25.3 x 16.9 x 27.3 cm (9.96 x 6.65 x 10.75 in) SafeCore: 27.3 x 16.9 x 29.2 cm (10.75 x 6.65 x 11.5 in) |
WARRANTY |
Two-year warranty – DSX (Standalone) and DSX-L (Local Server) Guaranteed For Life™ Program** – DSXi (Cloud-connected) |
INSTRUMENTS SUPPORTED |
Ventis MX4, Ventis Pro Series, MX6 iBrid, Tango TX1, GasBadge Pro, SafeCore |
GAS INLETS |
3-Port Version: One ”fresh” air port, two calibration gas ports 6-Port Version: One ”fresh” air port, five calibration gas ports (for Ventis, MX6 iBrid, and SafeCore only) |
PUMP FLOW RATE |
: 1.2 SCFH (550 mL/min) |
COMMUNICATION: |
10/100 Ethernet support, RJ-45 Category 5 Connection |
DISPLAY |
128 x 64 Dot Matrix LCD – Multilingual modes English, Spanish, French, German and Portuguese*** |
OPERATING TEMPERATURE RANGE |
0 ºC to 50 ºC / 32 ºF to 122 ºF |
OPERATING HUMIDITY RANGE |
0% to 80% relative humidity (RH) up to 30 ºC (86 ºF), decreasing linearly to 50% RH at 50 ºC (122 ºF) |
EXTERNAL POWER SUPPLY RATINGS |
Supply voltage: 100-240 VAC/12 VDC Frequency range: 50-60 Hz / Current rating: 5A |
|
*DSX Docking Station Kits Include: Choice of Standalone or Cloud-connected 3-port DSX Docking Station, 116L calibration gas (appropriate mix) with demand flow regulator with iGas® pressure switch, North American power cord, USB storage device (Standalone only).
**Specific terms of the Guaranteed for Life™ Program are included with all products and are available upon request. ***DSX-L (Local Server) does not support Portuguese. |
