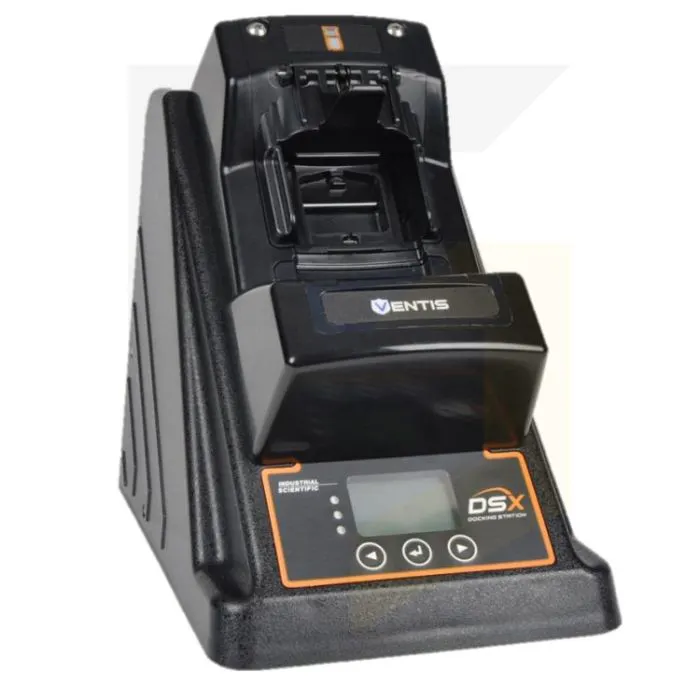

Industrial Scientific DSX Docking Station for Ventis MX4 and Pro5
The DSX StandAlone Docking Station is the most-simple DSX docking station for the Ventis range and requires no PC or network configurations. The DSX can charge devices and perform a wide range of maintenance and reporting functions such as bump testing and calibration with certificates, automated recording and auto-detection of calibration gas type. The device comes with 3 inlet ports and is powered by a mains cable. The DSX is covered by the Industrial Scientific 2-year warranty.
INCLUDED IN THE BOX |
iGas card-reader and tubing assembly, cable retainer rubber pads and cable ties, power supply, power cord, fresh air fitting, USB data storage device, diffusion insert, pumped insert |
DIMENSIONS |
GasBadge Pro, Tango TX1: 22.7 x 16.9 x 27.3 cm (8.92 x 6.65 x 10.75 in) Ventis MX4, Ventis Pro Series: 24.9 x 16.9 x 27.3 cm (9.83 x 6.65 x 10.75 in) MX6 iBrid: 25.3 x 16.9 x 27.3 cm (9.96 x 6.65 x 10.75 in) SafeCore: 27.3 x 16.9 x 29.2 cm (10.75 x 6.65 x 11.5 in) |
WARRANTY |
Two-year warranty – DSX (Standalone) and DSX-L (Local Server) Guaranteed For Life™ Program** – DSXi (Cloud-connected) |
INSTRUMENTS SUPPORTED |
Ventis MX4, Ventis Pro Series, MX6 iBrid, Tango TX1, GasBadge Pro, SafeCore |
GAS INLETS |
3-Port Version: One ”fresh” air port, two calibration gas ports 6-Port Version: One ”fresh” air port, five calibration gas ports (for Ventis, MX6 iBrid, and SafeCore only) |
PUMP FLOW RATE |
: 1.2 SCFH (550 mL/min) |
COMMUNICATION: |
10/100 Ethernet support, RJ-45 Category 5 Connection |
DISPLAY |
128 x 64 Dot Matrix LCD – Multilingual modes English, Spanish, French, German and Portuguese*** |
OPERATING TEMPERATURE RANGE |
0 ºC to 50 ºC / 32 ºF to 122 ºF |
OPERATING HUMIDITY RANGE |
0% to 80% relative humidity (RH) up to 30 ºC (86 ºF), decreasing linearly to 50% RH at 50 ºC (122 ºF) |
EXTERNAL POWER SUPPLY RATINGS |
Supply voltage: 100-240 VAC/12 VDC Frequency range: 50-60 Hz / Current rating: 5A |
|
*DSX Docking Station Kits Include: Choice of Standalone or Cloud-connected 3-port DSX Docking Station, 116L calibration gas (appropriate mix) with demand flow regulator with iGas® pressure switch, North American power cord, USB storage device (Standalone only).
**Specific terms of the Guaranteed for Life™ Program are included with all products and are available upon request. ***DSX-L (Local Server) does not support Portuguese. |
