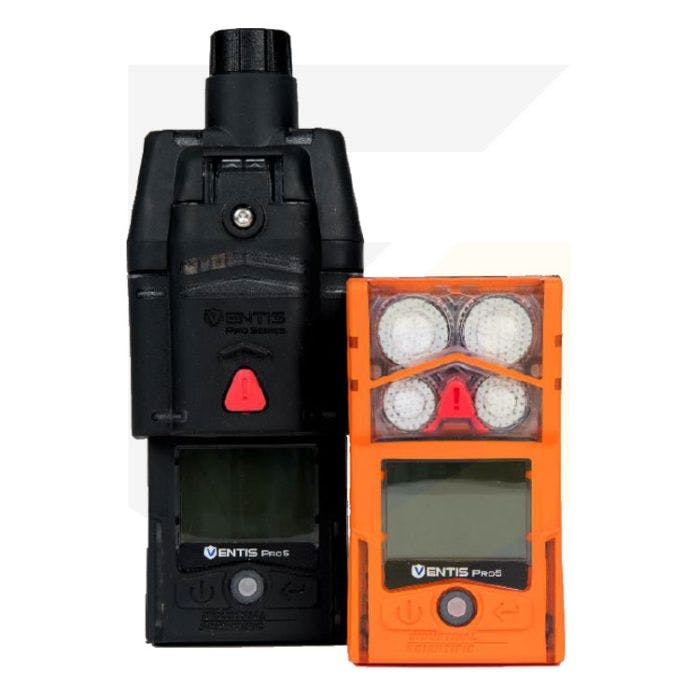

Industrial Scientific Ventis Pro 5 (Diffusion) Multi-Gas Monitor (Orange) Lens Wireless
The Ventis Pro5 is a multi-gas monitor that can detect up to five of the following gases: LEL (Methane), LEL (Pentane), H2S, SO2, CO, Cl2, HCN, NO2, NH3, O2, PH3. With the ability to connect to up to 4 modes of connectivity, the Ventis Pro5 is a flexible monitor to suit a range of personnel and applications, providing real-time alerts to reduce risk and cost.
Industrial Scientific pride themselves on this monitor being "the most flexible monitor on the market". The Ventis Pro5's can automatically connect via WIFI, satellite, cellular or to peers on-site through LENS Wireless which can be customised between workers and sites, creating unique and personal connectivity that is suited specifically to each application. This allows the Ventis Pro5 to reduce risk and cost across operations on-site as they are multipurpose across the whole site, ranging from personal monitoring to confined space monitoring, reducing the number of monitors needed.
The real-time alerts within the Ventis Pro5 provides crucial information such as who needs assistance, where, and why. With this function, workers can feel safe and confident. Furthermore, 'EVACUATE' and 'VENTILATE' instructions are provided in relevant situations, further helping to reduce human error in emergencies.
The Ventis Pro5 can be configured personally via the "Build your Own Sensor Configuration", allowing users to choose four sensors and a final DualSense TM sensor. Furthermore, the custom configuration can also be applied to the pump, battery, charger, colour and language. If customisation is something that you are interested in, please get in touch with one of our sales team via the online chat function or contact us on 0141 7717749, where we can assist you with creating your customised Ventis Pro5 monitor.
- Programmatically assign functions to trace back monitors after alarms have been activated or went missing.
- 'Screen hide' function to further simplify the user experience based on worker’s needs.
- Key functions include real-time gas readings, man down, 'EVACUATE', 'VENTILATE' and panic alarms which can alert all personnel who may be in danger.
- Triple alarm system consisting of Ultra-bright LEDs, loud noise and vibrating alarm.
- Physically protected by a durable and protective polycarbonate rubber overmold.
- The screen is a Backlit Liquid Crystal Display (LCD).
- Comes with a 1P68 rating meaning the monitor is dust/dirt and sand tight, can survive in 1.5m deep water (up to 30 mins) and is ingress protected.
- Adheres to the Guaranteed for Life Warranty, ensuring the longevity of protection and safety.
- iNet Exchange compatible.
Supplied with Monitor |
Calibration Cup (without pump), Sample Tubing (with pump), Reference Guide. |
Dimensions |
103 x 58 x 30 mm (4.1 x 2.3 x 1.2 in) without pump, lithium-ion battery version 172 x 67 x 66 mm (6.8 x 2.6 x 2.6 in) with pump, lithium-ion battery version. |
Weight |
182 g (6.4 oz) without Pump, lithium-ion battery version 380 g (13.4 oz) with Pump, lithium-ion battery version. |
Sensors |
Combustible gases/methane – Catalytic Bead O2, CO, CO/H2 low, H2S, NO2, SO2 – Electrochemical. |
Measuring Ranges |
Combustible Gases: 0-100% LEL in 1% increments Methane (CH4): 0-5% of vol in 0.01% increments Oxygen (O2): 0-30% of vol in 0.1% increments Carbon Monoxide (CO/H2 low): 0-1,000 ppm in 1 ppm increments Carbon Monoxide (CO): 0-1,000 ppm in 1 ppm increments Hydrogen Sulfide (H2S): 0-500 ppm in 0.1 ppm increments Nitrogen Dioxide (NO2): 0-150 ppm in 0.1 ppm increments Sulfur Dioxide (SO2): 0-150 ppm in 0.1 ppm increments |
Power Source/Run Time |
Rechargeable slim extended lithium-ion battery (18 hours typical @ 20 ºC) without Pump
Rechargeable lithium-ion battery (12 hours typical @ 20 ºC) without Pump
Rechargeable extended-range lithium-ion battery (20 hours typical @ 20 ºC) without Pump (12 hours typical @ 20 ºC) with Pump Replaceable
AAA alkaline battery (8 hours typical @ 20 ºC) without Pump (4 hours typical @ 20 ºC) with Pump |
Temperature Range |
-20 °C to 50 °C (-4 °F to 122 °F) *** |
Humidity Range |
15% to 95% Non-condensing (continuous). |
Certifications |
INGRESS PROTECTION IP66/67 ANZEx: Ex ia s Zone 0 I/IIC T4 ATEX: Ex ia IIC T4 Ga and Ex ia I Ma; Equipment Group and Category II 1G/I M1
China CMC: Metrology approval China CPC: CPA 2017-C103 China Ex: Ex ia IIC T4 Ga; Ex ia d I Mb China KA: Approved for Underground Mines with CO, H2 S, O2 and CH4 China MA: Approved for Underground Mines with CO, H2 S, O2 and CH4 (Note: Diffusion 17144453 pack only) CSA: Cl I, Div 1, G A-D, T4; Ex d ia IIC T4 EAC: PB Ex d ia I X/1Ex d ia IIC T4 X IECEx: Ex ia IIC T4 Ga INMETRO: Ex ia IIC T4 Ga KC: Ex d ia IIC T4 KIMM: Ex d ia IIC T4 MED: Portable Multi-Gas Detector; Category 2 (MED 96/98/EC; MED 2012/32/EU Marine Directive) Li-ion MSHA: 30 CFR Part 22; Permissible for underground mines; Li-ion PA-DEP: BFE 46-12 Permissible for PA Bituminous Underground Mines; Charger/docking station accessories; Category 1 SANS: SANS 1515-1; Type A; Ex ia I/IIC T4; Li-ion TIIS: Ex ia IIC T4 X UL: Cl I, Div 1, Groups A-D, T4; Zone 0, AEx ia IIC T4; Cl II, Gr F-G (Carbonaceous and Grain dust) |
Language |
English (1), French (2), Spanish (3), German (4), Italian (5), Dutch (6), Portuguese (7), Russian (9), Polish (A), Czech (B), Chinese (C), Danish (D), Norwegian (E), Finnish (F), Swedish (G), Japanese (J). |
|
* These specifications are based on performance averages and may vary by instrument.
**The 4-year warranty is strictly limited to the enumerated components in devices manufactured after December 31, 2019. Warranted components in devices manufactured before January 1st, 2020 are warranted for two (2) years from the device’s date of manufacture.
*** Operating temperatures above 50 °C (122 °F) may cause reduced instrument accuracy. Operating temperatures below -20 °C (-4 °F) may cause reduced instrument accuracy and affect display and alarm performance. See Product Manual for details. |
