PRODUCT CODE
059-B116-000
£5,432.40 £4,527.00
Detect more than 200 volatile organic compounds (VOCs) with the MiniRAE 3000+ Non-Wireless from RAE Systems. Ideal instrument for leak detection and applications where hazardous materials are present.


Additional services

  • £125.00
Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.

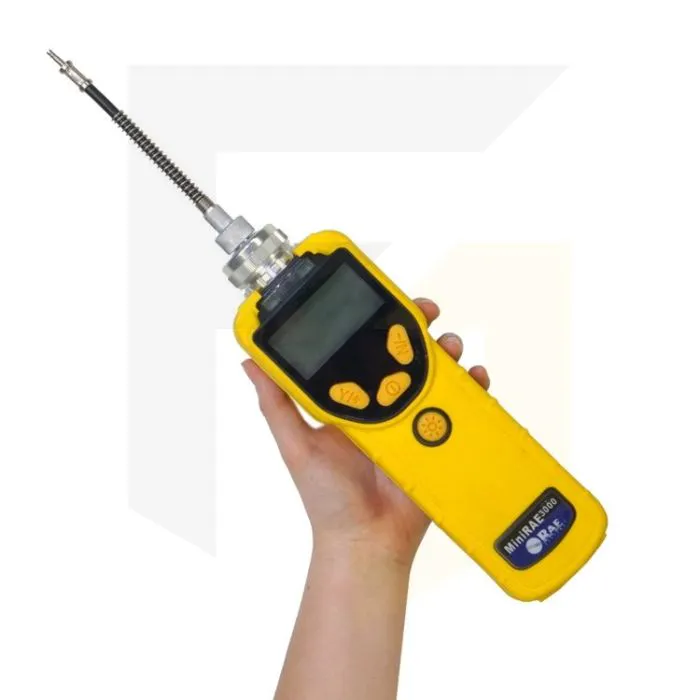

MiniRAE 3000 (Model PGM-7320) Photoionisation (PID) Detector

MiniRAE 3000+ (PGM-7320) Photoionisation (PID) Detector with 10.6eV lamp / Non- Wireless

The MiniRAE 3000+ is a photoionisation (PID) detector from RAE Systems.  It's capable of detecting more than 200 volatile organic compounds (VOCs) with an extended measuring range of 0-15,000 ppm and 10.6 eV lamp.

This PID gas detector is ideal for tough industries including leak detection and use of hazardous materials.  The proven PID technology includes a patented sensor which has an extremely fast response time and accounts for humidity compensation.  You can view real-time sensor readings.

RAE System's MiniRAE 3000+ is easily maintainable with interchangeable battery packs, automatic lamp recognition and easy access to the sensor.  It uses advanced technology and has some advantageous features.  It has a tough but flexible inlet Flexi-probe, a built-in sample pump and a double alarm system.  Alarms include a 95dB audible alarm and bright red flashing alarm.



Key Features
  • Simple to use and easy to access, even with gloves on
  • Large graphical display with user-friendly screens
  • Integrated flashlight increases visibiltiy in dark conditions
  • Supports 12 different languages
  • IP67 housing makes it waterproof and easy to clean
  • Includes a protective, but removable, rubber boot
Specifications
What's Included

• MiniRAE 3000 Monitor, Model PGM-7320
• Datalogging with ProRAE Studio Package for Windows™ 98,2000, NT, ME & XP
• Charging/download adapter
• RAE UV lamp, as specified
• Flex-I-Probe
• External filter
• Rubber boot
• Alkaline battery adapter
• Lamp-cleaning kit
• Tool kit
• Operation CD-ROM
• Operation & Maintenance manual
• Soft leather case

Gas 1 VOCs
Range (ppm) 0 to 999.9
Resolution (ppm) 0.1
Response Time (T90) < 3 sec
Gas 2 VOCs
Range (ppm) 1000 to 15,000
Resolution (ppm) 1
Response Time (T90) < 3 sec
Size 10" L x 3.0" W x 2.5" H (25.5 cm x 7.6 cm x 6.4 cm)
Weight 26 oz (738 g)
Sensors Photoionization sensor with standard 10.6 eV lamp
Battery
  • Alkaline battery adapter
  • External field-replaceable lithium-ion battery pack
Operating Time 16 hours of operation (12 hours with alkaline battery)
Display Graphic  4 lines, 28 x 43 mm, with LED backlight for enhanced display readability
Keypad 1 operation and 2 programming keys, 1 flashlight on/off
Direct Readout
  • VOCs as ppm by volume
  • High values
  • STEL and TWA
  • Battery and shutdown voltage
  • Date, time, temperature
Alarms
  • 95dB buzzer (at 12"/30 cm) and flashing red LED to indicate exceeded preset limits
  • High: 3 beeps and flashes per second
  • Low: 2 beeps and flashes per second
  • STEL and TWA: 1 beep and flash per second
  • Alarms latching with manual override or automatic reset
  • Additional diagnostic alarm and display message for low battery and pump stall
EMI/RFI
  • Highly resistant to EMI/RFI
  • Compliant with EMC directive (2004/108/EC); R & TTE directive (1999/5/EC)
IP Rating
  • IP-65 (unit running): protected against dust, protected against low-pressure jets of water from all directions
  • IP-67 (unit off and without flexible probe): protected against dust, protected against immersion between 15cm and 1m depth.
Data Logging Standard 6 months at one-minute intervals
Calibration 2-point or 3-point calibration for zero and span. Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates
Sampling Pump
  • Internal, integrated flow rate at 500 cc/min
  • Sample from 100' (30m) horizontally and vertically
Low Flow Alarm Auto shut-off pump at low-flow condition
Communication Download data and upload instrument setup from PC through charging cradle
Certifications
  • US and Canada: Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D
  • Europe: ATEX II 2G EEx ia IIC T4
Operating Temperature -4° to 122° F (-20° to 50° C)
Humidity 0 to 95% relative humidity (non-condensing)
Attachments Durable bright yellow rubber boot
Warranty 3 years for 10.6 eV lamp, 1 year for pump, battery, sensor and instrument
