- Description / Features / Spec

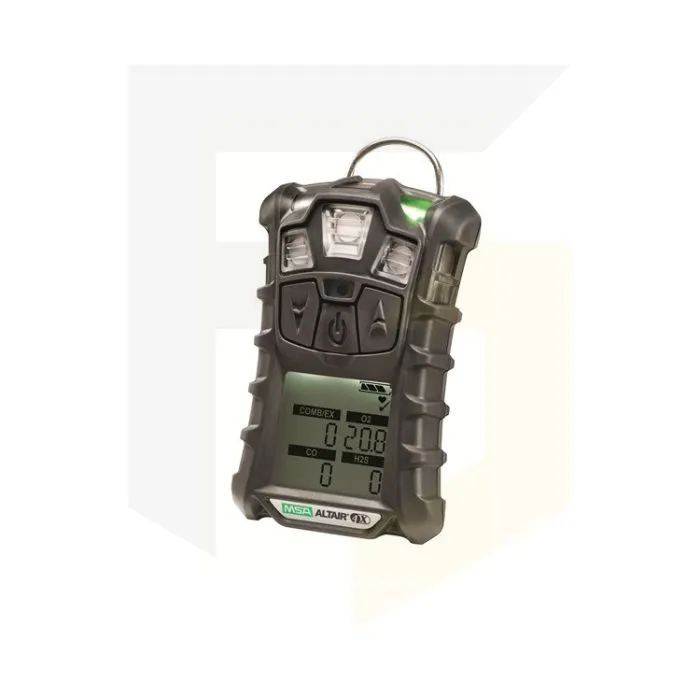

MSA ALTAIR 4X Gas Detector - LEL & Butane / O2 / CO & H2S
Please note that the MSA Altair 4X has now been phased out. Replacement parts will still be available until further notice. Please see the MSA ALTAIR 4XR as a replacement device (P/n 10178573).
The Altair 4X is a robust and accurate multi gas detector from MSA. It’s ideal for applications including oil, gas, and petrochemicals, pharmaceuticals, chemicals, confined space, fire service, municipal works and also mining.
This particular monitor features the following XCell sensors: Combustible Gases (LEL calibrated to Butane), Hydrogen Sulphide (H2S), Carbon Monoxide (CO) and also Oxygen (O2). The Carbon Monoxide sensor is H2 resistant.
MSA’s Altair 4X features two exclusive safety features: MotionAlert and InstantAlert.
MotionAlert alerts others when a user becomes disabled or motionless whereas the InstantAlert is more manual. This is a button which must be physically pressed by the user to alert others to a hazardous situation.
- Polycarbonate, rugged housing – designed to pass a 20ft drop test
- Buttons are large and easy to use
- LCD backlit display
- Datalogging capability – adjustable, 50 hours minimum
- Standard 500 events recorded in event log
- Easy bump-check mode with 24-hour checkmark indicator
- Compatible with Galaxy Test System
- 0 to 100% LEL
- 0 to 30 Vol.-% O2
- 0 – 1999 ppm CO
- 0 – 200 ppm H2S
- 1% LEL
- 0.1 Vol.-% O2
- 1 ppm CO .
- 1 ppm H2S
Dimensions 4.4” x 3.0” x 1.31” Weight 7.9 oz Alarms
- Audible (>95 dB at 1 ft)
- Visual (4 ultra-bright LEDs)
Battery Rechargeable li-polymer Charging Time <4 hours Operating Period -20°C to +50°C; -40°C to +60°C – Short Period Operation Humidity 15 – 90 % RH non-condensing IP Rating IP-67 Sensor Lifetime Typical life of more than four years Standard Warranty 3 years (Option to extend by 1 year) Approvals
- US - ETL Class I, Div. 1, Groups A,B, C&D Tamb=-40°C to +54°C ETL Class, II, Div.1, Groups E,F&G Class III, Div. 1 Tamb=-40°C to +54°C; T4
- ATEX - II 2G Ex ia d IIC T4, -40°C to +60°C, IP67 (Zone 1 with combustible sensor installed)
- Canada - CSA Class I, Div. 1, Groups, A,B,C&D CAN/CSA C22.2 152; 12.13.01-2000 ETL Class II, Div.1, Groups E,F&G Class III, Div. 1, Tamb=-40°C to +54°C; T4
- IEC - Ex ia IIC T4, -40°C to +60°C, (Zone 0 with no combustible sensor installed), Ex ia d IIC T4, -40°C to +60°C (Zone 1 with combustible sensor installed
- Australia/New Zealand - Ex ia s IIC T4, -40°C to +60°C, IP67 (Zone 0)
- Altair 4X Detector
- Charging cradle
- Plug options
- User Manual
- Calibration Certificate
- Calibration cap and tubing
