- Description / Features / Spec

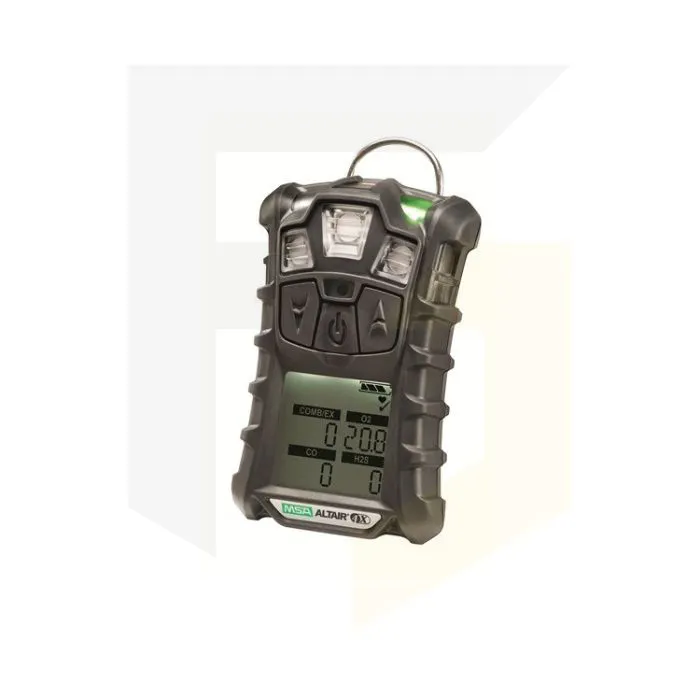

MSA ALTAIR 4X Gas Detector - LEL & Pentane / O2 / CO/NO2
Please note: this product is now obsolete.
The Altair 4X is ideal for applications including oil, gas, and petrochemicals, pharmaceuticals, chemicals, confined space, fire service, municipal works and also mining.
This robust monitor features XCell sensor technology and has the ability to accurately measure Combustible Gases (LEL – calibrated to pentane), Oxygen (O2), and Carbon Monoxide (CO) and also Nitrogen Dioxide (NO2). The CO sensor is also H2 resistant.
The MotionAlert and InstantAlert functions are exclusive to the Altair 4X and ideal for confined space applications. When a user becomes disabled and motionless others will be alerted through the MotionAlert function. InstantAlert is more manual and is a button which can be pressed to alert others to a hazardous situation.
- Rugged polycarbonate housing – has passed a 20ft drop test
- Large, easy-to-use buttons
- LCD backlit display
- Datalogging capability – adjustable, 50 hours minimum
- Standard 500 events recorded in event log
- Easy bump-check mode with 24-hour checkmark indicator
- Compatible with Galaxy Test System
- 0 to 100% LEL
- 0 to 30 Vol.-% O2
- 0 – 1999 ppm CO
- 0 – 50 ppm NO2
- 1% LEL
- 0.1 Vol.-% O2
- 1 ppm CO .
- 0.1 ppm NO2
Dimensions 4.4” x 3.0” x 1.31” Weight 7.9 oz Alarms
- Audible (>95 dB at 1 ft)
- Visual (4 ultra-bright LEDs)
Battery Rechargeable li-polymer Charging Time <4 hours Operating Period -20°C to +50°C; -40°C to +60°C – Short Period Operation Humidity 15 – 90 % RH non-condensing IP Rating IP-67 Sensor Lifetime Typical life of more than four years Standard Warranty 3 years (Option to extend by 1 year) Approvals
- US - ETL Class I, Div. 1, Groups A,B, C&D Tamb=-40°C to +54°C ETL Class, II, Div.1, Groups E,F&G Class III, Div. 1 Tamb=-40°C to +54°C; T4
- ATEX - II 2G Ex ia d IIC T4, -40°C to +60°C, IP67 (Zone 1 with combustible sensor installed)
- Canada - CSA Class I, Div. 1, Groups, A,B,C&D CAN/CSA C22.2 152; 12.13.01-2000 ETL Class II, Div.1, Groups E,F&G Class III, Div. 1, Tamb=-40°C to +54°C; T4
- IEC - Ex ia IIC T4, -40°C to +60°C, (Zone 0 with no combustible sensor installed), Ex ia d IIC T4, -40°C to +60°C (Zone 1 with combustible sensor installed
- Australia/New Zealand - Ex ia s IIC T4, -40°C to +60°C, IP67 (Zone 0)
- Altair 4X Detector
- Charging cradle
- Plug options
- User Manual
- Calibration Certificate
- Calibration cap and tubing
