PRODUCT CODE
10211185
£596.39 £496.99

This supersedes the MSA Altair 4X (pn: 10110715) gas detector.

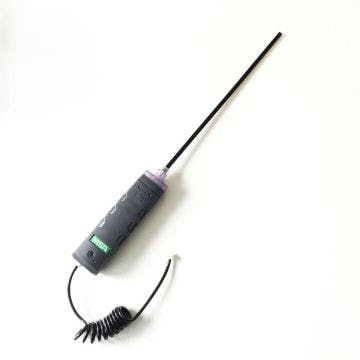

Combine with the MSA ALTAIR Pump Probe for pumped applications.

Visit our YouTube Channel for handy MSA Altair 4XR video tutorials and reviews.

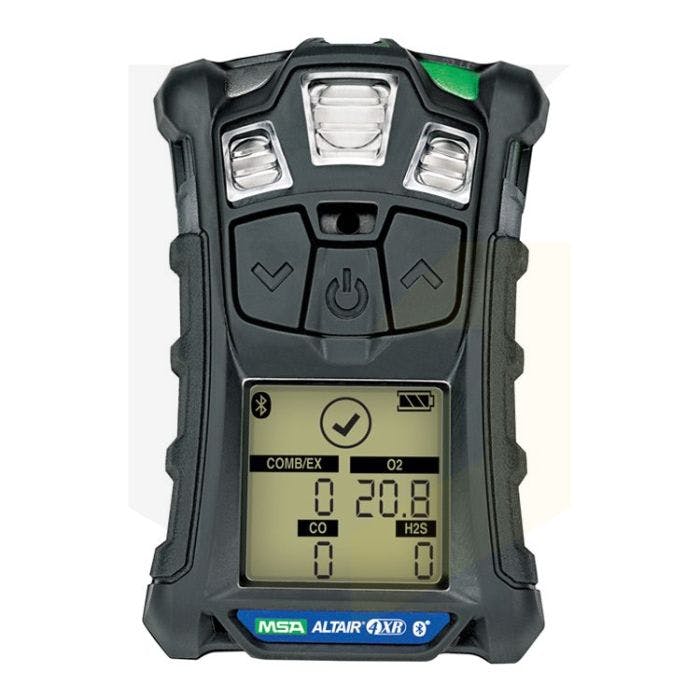

MSA Altair 4XR Multigas Detector (LEL/O2/CO/H2S) Charcoal

MSA Altair 4XR Multigas Detector (LEL/O2/CO/H2S) Charcoal

The MSA Altair 4XR multi-gas detector can detect combustible gases, oxygen, carbon monoxide and hydrogen sulphide levels with XCell sensors.  This particular version has charcoal housing.  It’s a reliable, rugged and real-time instrument.

This multi-gas detector is suitable for use in industries including fire service, contracting, industrial, mining, oil and gas and utilities.  The compliance feature allows you to see at a glance whether or not your MSA multi-gas detector has been bump tested.

Compared to the MSA Altair 4X multi-gas detector, the 4XR is still compatible with the MSA Galaxy GX2 stand.  The MSA Altair 4XR box includes the device itself, a charger, a calibration cap and a short piece of tubing.

This Altair 4XR can be used with the MSA ALTAIR Pump Probe for pumped applications.

Key Features
  • Datalogging function has ability to log more than 500 event logs
  • Tested to survive 25 drops from 4 feet (1.2m) and an incidental 25ft (7.5m) drop on to concrete
  • IP rating 68, which means it can stand dust and water ingress at 2 meters for at least 1 hour
  • MotionAlert feature, when activated, tells others that the user has become immobile
  • InstantAlert feature, when activated, notifies others of a potentially dangerous situation
  • Other sensors are available with different versions of the MSA Altair 4XR
Specifications

Dimensions

4.4 x 3.0 x 1.4” (11 x 7.6 x 3.5cm)

Weight

8 oz (228g)

Measurement   Ranges

  • LEL (Pen) – 0-100%
  • O2 – 0-30%
  • CO – 0-1999 ppm
  • H2S – 0-200 ppm

Resolution

  • LEL – 1%
  • O2 – 0.1%
  • CO – 1 ppm
  • H2S – 1 ppm

Battery

Rechargeable Li-polymer Battery with 24-hour runtime   and <4 hour charge time

Temperature   Range

  • –40 °F to +140 °F
  • –40 °C to +60 °C

Relative   Humidity

  • 5 % – 95 % intermittent
  • 15 % – 90 % non-condensing

Warranty

4 years instrument and sensor warranty

Certifications

Europe
Directive 2014/34/EU (ATEX): II 1G Ex ia da IIC T4 Ga,   –40°C to +60°C, IP68
CE 0080
Directive 2014/30/EU (EMC): EN50270 Type 2, EN61000-6-3

North   America - USA
Class I, Division 1, Groups A, B, C & D Class   II,
Division 1, Groups E, F & G Class III, Division   1
Ambient temperature: –40°C   to +60°C; T4

Canada CSA
CAN/CSA C22.2 No. 152 Combustible Gas
Detection Instruments C22.2 No. 152
Performance Ambient Temperature: –20°C to +54°C;   T4
C22.2 No. 157 Intrinsic Safety Ambient Temperature: –40°C to +54°C;   T4

IEC
IECEx
Ex ia da IIC T4 Ga, –40°C to   +60°C, IP68
