MSA ALTAIR io360 - Area Monitor (Black)

PRODUCT CODE:
MSA-io360-AM

MSA Safety's ALTAIR io360 Area Monitor, capable of detecting up to 4 gases is now available for pre order. Please bear in mind as this is a newly released product lead times may be longer than usual. Contact our sales team on 0141 771 7749 for advice on lead times.

Please note this product is currently discontinued.

Loading...

Product description

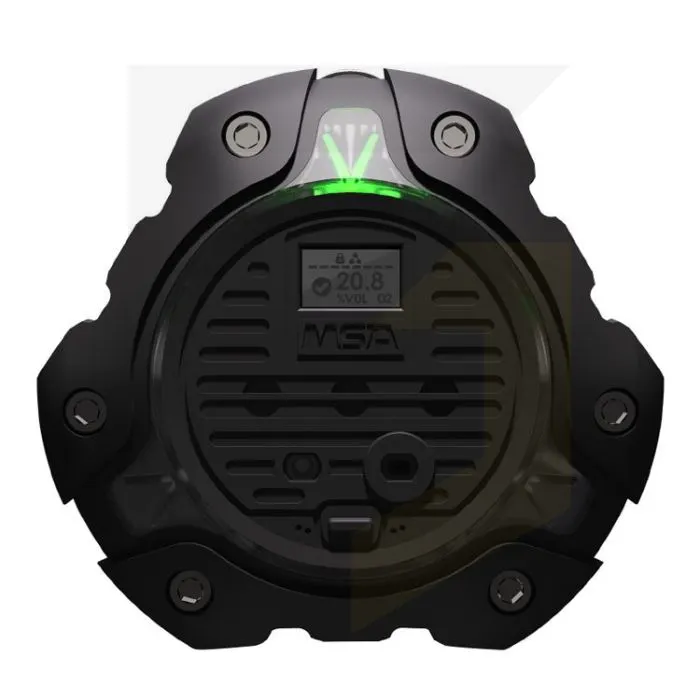

MSA ALTAIR io360 Area Monitor

MSA’s ALTAIR io360 is the future in area monitoring technology. This new monitor provides 4 gas detection in high risk areas such as perimeters, confined spaces and general area monitoring. Focus on safety more than maintenance with the extremely long battery life in the ALTAIR io360.

Please Note: this is the black version, for the green visit here.

Future of Area Monitoring

The ALTAIR io360 is the most advanced area monitor available on the market. With an expected runtime of 50-60 days when monitoring 4 gases and an expected 80-85 days when monitoring 1-3 gases. MSA uses disposable batteries for this, providing a lower cost of ownership. Additionally, costly downtime is minimised, thanks to the Monitor notifying you remotely or locally that batteries need replaced.

Rugged and Reliable

Providing IP68 robustness and using MSA’s high quality XCell sensors, you can expect a high level of performance from the ALTAIR io360. It has been tested for working in the toughest of environments and is submergible to 6.6 ft (2 m) for up to 60 minutes. Also, the io360 has been drop tested at 10 ft (3 m) further showing its reliability.

Simple Setup and Usability

This product has been developed to ensure setup is simple for any user, making setup as easy as setting up a smart home device. Thanks to the MSA HUB users can connect to 32 ALTAIR io360 Gas Detectors in order to share alarms, extend ranges and form mesh networks.

Better Sensors and Better Performance

MSA’s XCell Sensors are used for the ALTAIR io360, providing accuracy and stability. Combustible and toxic sensors have an expected lifetime of 4 years and they also provide an end-of-life warning, again assisting with minimising downtime.

Key Features

  • IP68 Rated
  • Device is hangable with its integrated D-ring
  • Compact and lightweight being 1.6lb (0.73 kg)
  • Easily create networks with Safety io Grid mobile app
Specification

ALTAIR io360 Area Gas Monitor

Warranty

4 years

Oxygen Sensor: 2 years

Low-energy Combustible: 1 year

Durability

Drop Test: 10ft (3m)

Ingress Protection: IP68

Temperature

Normal Operating: –4° to 131° F (–20° to 55° C)

Extending Operating: –40° to 131° F (–40° to 55° C) Storage: 32 to +95 °F (0 to 35 °C)

Humidity

Intermittent: 5% - 95%

Non-condensing: 15% - 90%

Power

Batteries: 3 replaceable lithium thionyl chloride batteries



Runtime: nominally 50-60 days 4-gas, 80-85 days without combustible sensor

Physical

Weight: 1.6 lb. (0.7 kg)



Dimensions: 5.2” x 5.6” x 2.7” (132 x 142 x 69 mm)

Alarms

Audible: 90 Db @ 1 ft. (0.3 m)



Visual: RGB LED

Data Logging

Periodic, Event, Instrument, Calibration logs stored on detector (at least 2 months) and sent to Safety io Grid.

Range

Up to 1000 ft. (~300 m) line of site HUB to detector 2 mesh hops to extend range.

Radio

915 MHz, Bluetooth, RFID

Sensors

Gas                     LEL

O₂

CO

H₂S

Range

0-100%

0-30%

0-1999 ppm

0-200 ppm

Resolution

1%

0.1%

1 ppm

1 ppm

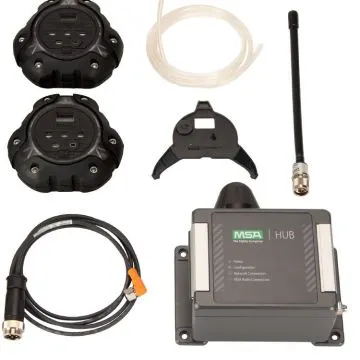

MSA HUB Specifications

Warranty

4 years

Durability

Ingress Protection IP67

Temperature Range

4° to 140° F (–20° to +60° C) for hazardous locations

Humidity

10 to 90% relative humidity, non-condensing

Power

Nominal: 24 V DC Line power

Range: 6 V to 32 V

Physical

Weight: 3 lb. (1.4 kg)

Dimensions: 7.5” x 7.7” x 3.9”

(190mm x 195mm x 99mm)

Radio

915 MHz, Bluetooth, Cellular 2G/3G/4G, 2.4 GHz Wi-Fi (a,b,g,n)

Ethernet

10/100 mbit
