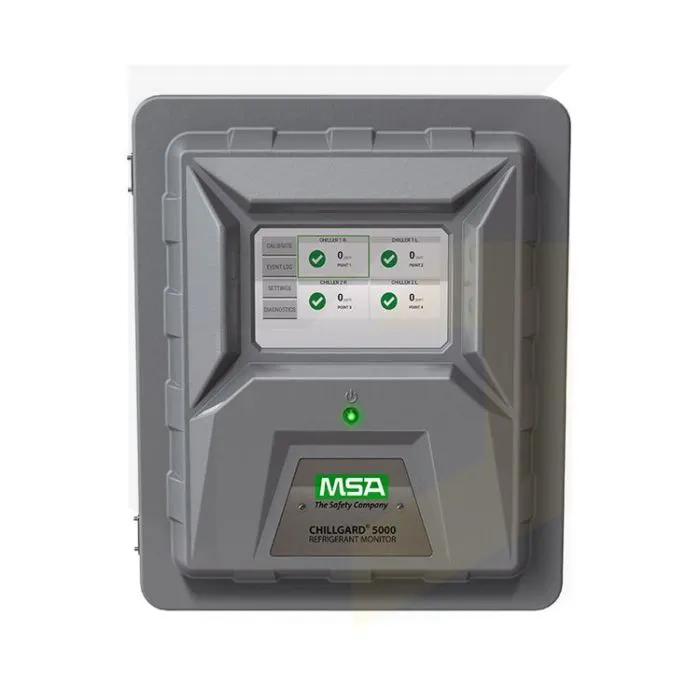

MSA Chillgard 5000 – Refrigerant Leak Detector (0-1000ppm)
The Chillgard 5000 is the most versatile and sensitive refrigerant leak detector on the market and can detect as low as 1ppm due to its patented photoacoustic infrared technology (PAIR), providing the quickest response for costly refrigerant gas leaks.
It is compliant with ASHRAE 15 meaning the device will activate both a visual and audible alarm inside and outside of the mechanical room as well as activating mechanical ventilation. The Chillgard 5000 contains 3 levels of alarm, 5 internal relays for fault and a horn option. The 7” touchscreen interface makes the Chillgard 5000 simple to operate and allows for text to be displayed in 6 languages. With a one-touch calibration mode the maintenance of this monitor is simple.
The versatility and stability of this device is unmatched, as it allows you to monitor up to 6 refrigerants and can be configured with up to 16 sampling points. Additional to this, results are not impacted by environmental conditions such as: humidity and temperature. The Chillgard 5000 can operate in temperatures ranging from 0° to 50° C.
For information regarding the usage of this device refer to the Application brochure in the downloads section.
- Password protection
- Predict, diagnose and replace modules in the field
- One-touch calibration
- BACnet and Modbus digital communication
Usage |
Indoor use only |
Overvoltage |
Category II |
Pollution |
Degree 2 |
AC Power |
100–240 Vac, 50/60 Hz, 200VA |
Operating Temperature |
32° to 122° F (0° to 50° C) |
Operating Altitude Limit |
9762 ft. (2975 m) |
Operating Humidity |
0 to 95%, noncondensing |
Ingress Protection |
IP54 |
Size |
15.6 in. x 13.6 in. x 7.6 in. (39.6 cm x 34.5 cm x 19.3 cm) H x W x D |
Weight 4-Point Unit 8-Point Unit 16-Point Unit |
14 lbs. (6.4 kg) 15 lbs. (6.8 kg) 17 lbs. (7.7 kg) |
Sensor Type |
Photoacoustic Infrared |
Sample Line Tubing Polyurethane Tubing
Metal Tubing |
0.25" OD (0.635 cm) x 0.1875" (0.48 cm) or 0.125" ID (0.3175 cm)
0.25" OD (0.635) |
Sample Line Monitoring Distance |
Up to 400 ft. (121 m) for optimum performance, will support up to 1250 ft. (381 m) |
Gases |
R11, R12, R22, R123, R134A, R401A, R404A, R407A, R407C, R407F, R410A, R422A, R422D, R427A, R507, R1233zd(E), R1234yf, R1234ze, R-513A, R-514A |
Measuring Range |
0-1000ppm |
Sensitivity (Min detection) |
1ppm for all listed gases |
Accuracy (linearity) |
0–50 ppm ±1 ppm, 51–1000 ppm ±10% of reading |
Sensor Response Time |
90% of gas reading <70 sec |
Relays |
5 Form C, 8A 250VAC/24VDC resistive SPDT for Fault, Caution Level, Warning Level, Alarm Level and External Horn |
Audible alarm |
95 ±5 dB(A) at 24 in. (61 cm) maximum |
Communication Outputs |
4–20 mA sourcing, 250 Ohm load; 0 – 10 V , 2 K Ohm minimum load; RS485 Modbus RTU; RS-485 BACnet MS/TP |
Warranty |
2 years |
Approvals |
UL 61010-1 (3rd Edition) CAN/CSA-C22 No. 61010-1-2012 IEC/EN 61010-1:2010 (3rd Edition) |
