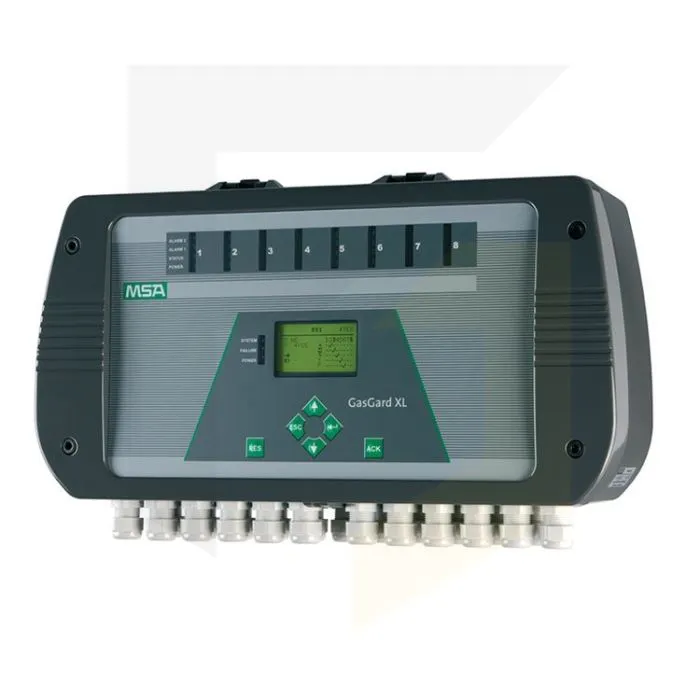

MSA GasGard XL - Multi Channel Wall Mount Controller
The GasGard XL designed by MSA as a wall mount controller with up to 8 channels for the monitoring of oxygen, toxic and flammable gases. The GasGard XL is suited to a variety of industrial applications and provides the upmost protection from potentially hazardous environments with its versatility and robust housing, made from ABS fire retardant plastic.
Real time information is displayed through the multi-lingual LCD display, allowing target gas levels and system diagnosis to be shown at a glance. Inputs can be mixed, supporting mA and mV input signals, meaning users can configure up to 8 remote gas sensors, dependent on the amount of input cards installed. This device is easily configured via USB or RS485 Modbus and this can be done by laptop at the wall mounted unit. The GasGard XL has the capability to operate with numerous remote gas sensors (PrimaX Series and many more) as well as catalytic sensors (Series 47k).
- 2 levels of alarm for each channel
- Buzzer capable of 85 dB
- Transfer event logs conveniently via USB or ethernet
- 2 or 3 wire sensors compatible
- IP56 Rated
- LED indicators for each channel
Power Supply |
85 VAC–265 VAC 50/60 Hz |
Sensor Power Supply |
constant current 80 mA–430 mA 18–32 VDC |
Connection Modes |
2, 3 wires |
Terminal Board |
Sensor connection for wires up to 2.5 mm² |
Input Signals |
0–200 mV DC, 4–20 mA |
Alarm Thresholds |
ALARM 1 (Warning) adjustable from 5 to 100% f.s. (80 % LEL for ATEX version) ALARM 2 (Alarm) adjustable from 5 to 100% f.s. (80 % LEL for ATEX version) |
Electronic Speed of Responsive |
< 1s to reach 100 % f.s. |
Span/Zero Drift |
< ±0.5 % f.s. ±1 digit/month |
Accuracy/ Repeatability |
< ±1% f.s. ±1 digit |
Operating Temperature |
–10 °C – +50 °C |
Storage Temperature |
–20 °C – +75 °C |
Ambient Humidity |
90 % RH non condensing |
Ingress Protection |
IP56 |
Approvals |
ATEX 2014/34/EU, EN 50270 (EMC), EN 61010-1 (Low Voltage Directive), EN 60079-29-1, CSA, CCCF |
Dimensions (W x H x D) |
515 x 277 x 129 mm |
Weight |
5 kg 8 kg (with battery |
Housing Material |
ABS plastic high resistant fire-retardant grade UL-94V-0 |
Backup Battery |
2.2 Ah (optional) |
