MSA M1 SCBA Basic Kit

PRODUCT CODE:: 10200950

The M1 SCBA from MSA offers greater modularity, enhanced hygiene and improved ergonomics. This is a basic kit configuration, please send an enquiry to [email protected] to create a custom configuration. Alternatively, you can call our helpful sales team on 0141 771 7749.

£1,988.40 inc VAT

£1,657.00

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

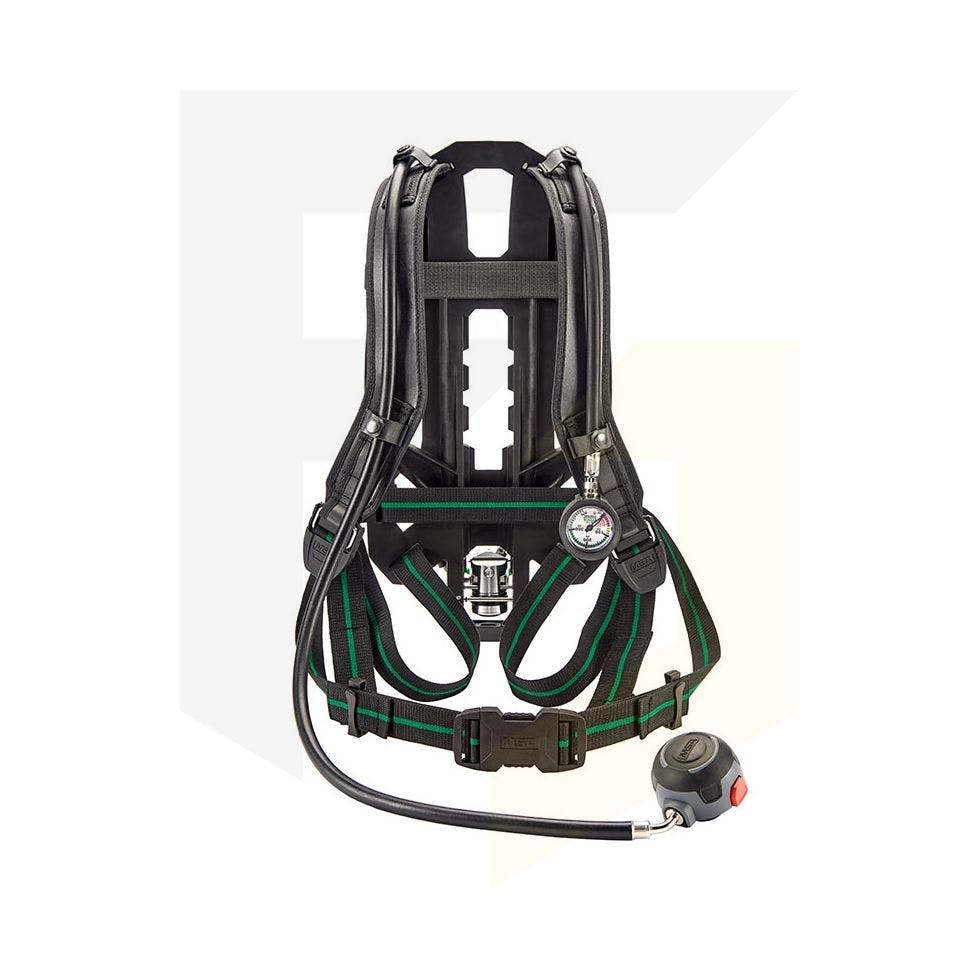

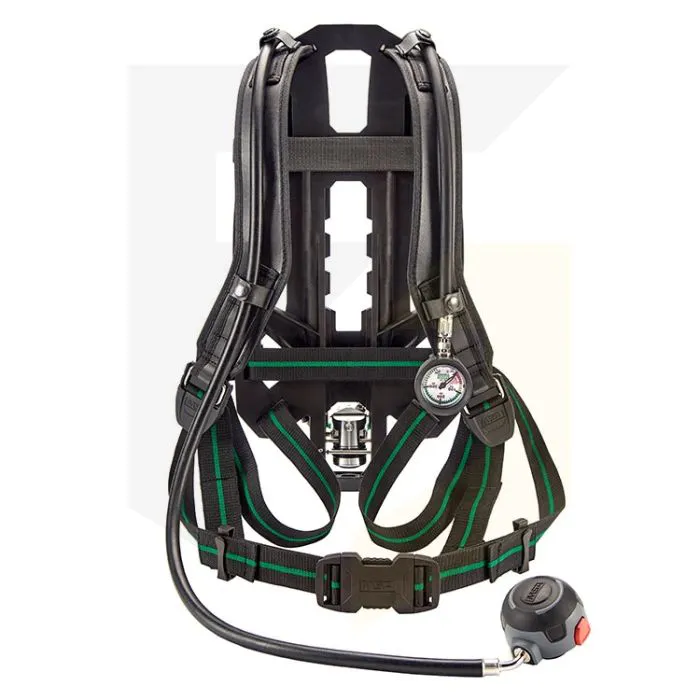

MSA M1 Self-Contained Breathing Apparatus

The M1 SCBA from MSA offers greater modularity, enhanced hygiene and improved egonomics. It is very easy to assemble and don and its unique padded harness S-shape design prevents pressure points and reduces slipping. Disassembly and assembly of components are simple and upgrades can be installed in the field.

This M1 SCBA set is the lightest SCBA with height adjustment on the market and uses a hip belt for evenly distributing weight. The innovative material of masl, lung-governed demand valve and pneumatics increase chemical resistance and protection against permeation.

Easily clean and disinfect your M1 SCBA with no difficult to reach areas on the backplate and the dust and water repellent harness. All components are designed for a longer life and the SCBA is easily upgraded or serviced without special tools.

Specification

Approvals and Antistatic Properties
Approvals	EN 137 type 1 and 2
Antistatic Properties	ATEX II 1G IIC T6 II 1D IIIC –40°C <= Ta <= +60°C
Components and Material
Backplate	Basic Optional swivel Optional swivel, height adjustment	Glass fibre reinforced polyamid, flame retardant and conducting surface
Harness	Basic	Polyamid webbing coated with CR rubber, flame retardant, tear resistant and conducting surface
	Advance	Core: Flame retardant polyethylen foam padding Outer shell: Coated aramid textile, flame retardant, tear resistant and conducting with layered band made from polyamid webbing coated with CR rubber
	Attachment Points (Optional)	Stainless steel
Hip Belt	Basic	Aramid textile
	Advance	Core: Flame retardant polyethylen foam padding Outer shell: Coated aramid textile, flame retardant, tear resistant and conducting with layered band made from polyamid webbing coated with CR rubber
Cylinder Strap	Band	Aramid textile
Buckles	Plastic	Glass fibre reinforced polyamid, flame retardant
	Metal	Stainless steel
Accessories	Chest strap	MAC (Modacryl) – blended fabric with aramid
	Hose holder	Polyamid webbing coated with CR rubber, flame retardant, tear resistant and conducting surface
	Rescue handle	Aramid textile
	Bumper	TPE (thermoplastic elastomer)
Pneumatics	Pressure reducer Primary low-pressure warning device Mechanical gauge Optional alphaCLICK II (high pressure quick connect to cylinder) Optional QuickFill (direct pressure connection for fast cylinder refill while donned) Optional additional medium pressure lines for rescue operation, Classic or SingleLine, CleanConnect (optional flush function)
Manifold	Standard gauge (gauge, whistle, one medium pressure coupling) Combi gauge (gauge, whistle, one or two medium pressure couplings) SingleLineSCOUT (gauge, whistle, one or two medium pressure couplings, no-motion alarm) Control Module (gauge, digital display, no-motion alarm, optional telemetry)
Demand Valve	Short or long medium pressure hose Connectors: Push-to-connect (AS), M45x3 (AE), ESA Optional bypass (only for AS)
Weight
Backplate with Harness and Pneumatics
Approx. 3.6kg	Backplate with swivel, Advance harness, single cylinder strap, plastic buckles, demand valve holder AS, PR18 with threaded connection, standard manifold
Approx. 3.9kg	Backplate with swivel and height adjustment, Advance harness, single cylinder strap, plastic buckles, 2 attachment points, demand valve holder AS, PR18 with threaded connection, SL with combi gauge (2 medium pressure couplings)
Approx. 4.0 kg	Backplate with swivel, Advance harness, single cylinder strap, plastic buckles, 2 attachment points, chest strap, demand valve holder AS, PR18 with alphaCLICK II (w/o cylinder adapter), standard manifold, rescue hose with flush function
Approx. 4.6kg	Backplate with swivel and height adjustment, Advance harness, single cylinder strap, metal buckles, 2 attachment points, rescue handle, chest strap, demand valve holder AS, PR18 with alphaCLICK II (with cylinder adapter), SL with combi gauge (2 medium pressure couplings), rescue hose with flush function
Full Face Mask and Lung-Governed Demand Valve (LGDV)
Approx. 650g Approx. 300g	G1 full face mask type AS with rubber harness
	M1 LGDV type AS with short medium pressure line
Complete SCBA System
Approx. 11 kg	Backplate with swivel, Advance harness, single cylinder strap, plastic buckles, demand valve holder AS, PR18 with threaded connection, standard manifold, M1 LGDV, G1 full face mask, charged cylinder 6.8l/300bar
Pressure Range and Air Flow Capacity
Pressure Reducer
Medium pressure range	Approx. 6.0 bar up to 8.0 bar	Approx. 6.4 bar @ 20 bar Approx. 7.7 bar @ 300 bar
Air-flow capacity	Approx. 600 l/min up to 1.000 l/min	Approx. 600 l/min @ 20 bar Approx. 1.000 l/min @ 300 bar
Lung-Governed Demand Valve
Medium Pressure Range	Approx. 3.5 bar up to 10.0 bar
Air-flow capacity (constant positive pressure inside the mask)	Approx. 600 l/min @ 300 bar Approx. 350 l/min @ 20 bar
