PRICES START FROM £1375.88 - ADD REQUIRED SENSORS BY SENDING AN ENQUIRY

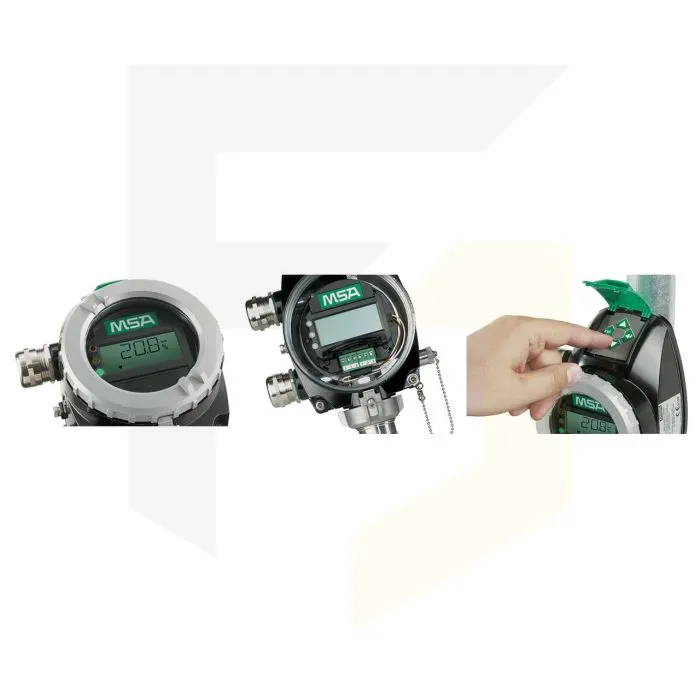

The MSA PrimaX P is a flameproof gas transmitter that detects oxygen, combustible gases and toxic gases and is suited for indoor and outdoor locations. The PrimaX P comes in an aluminium enclosure in comparison to its counterpart the PrimaX I that is in a plastic enclosure. The large LCD screen and status LEDs provide information quickly and clearly, making the setup and maintenance of the PrimaX P simple.
It can be easily attached to an integral mounting plate ensuring installation is quick and easy and its external 4-way keypad makes navigation simple. The PrimaX P uses a 4/20 mA output signal and is factory calibrated so it is delivered ready to be installed.
OUR DATA SHEETS BELOW PROVIDE A MORE IN DEPTH LOOK AT THE PRIMAX IR.
PrimaX P Data Sheet
PrimaX P Quick Start Guide
PrimaX P Operating Manual
Oxygen & Toxic |
Electrochemical Catalytic |
Typical response time |
τ₉₀ ≤ 20 sec. (Combustible) τ₉₀ ≤ 25 sec. (O₂) τ₉₀ ≤ 20 sec. (CO) τ₉₀ ≤ 12 sec. (H₂S) |
Sensor operating life |
up to 3 years in clean air |
Operating temperature* |
–40 °C to +70 °C (–40 °F to +160 °F) |
Operating humidity range |
15% to 90% RH non-condensing |
Operating pressure range |
80–120 kPa |
Supply voltage |
19.2 to 28 VDC (24 VDC nominal) |
Output signal |
4–20 mA (max. load 300 ohm) |
Power consumption |
3 watt typical at 24 VDC |
Terminals |
3 or 4 wire – up to 2.5 mm2 |
Display |
Alphanumeric LCD |
LED Status Indicators |
Green, yellow, and red |
HART Digital protocol |
Diagnostics and confirmation |
Relay Output |
Alarm and Fault – 2 A/30 VDC SPDT |
Weight |
1.6 kg (3.5 lbs) |
Dimensions |
220 x 162 x 100 mm (H x W x D) |
Material |
Powder coated aluminium |
Cable gland thread |
3/4" NPT or M25 x 1.5 mm2 |
Approvals |
ATEX/IECEx Gas – II 2G Ex d ia [ia] IIC T4 Gb Dust – II 2D Ex tb ia [ia] IIIC T130°C Db EN 60079-29-1, EN 50104, EN45544
UL Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III
Other Approvals CSA, CMC, CCCF, EAC, INMETRO, HART registered, BG RCI |
Safety Integrity Level |
SIL 2 |
