MSA Senscient ELDS – Open Path Gas Detector
The MSA Senscient ELDS is an open path gas detector which can detect a range of combustible and toxic gases such as: Ammonia (NH3), Carbon Dioxide (CO2), Ethylene (C2H4), Hydrogen Chloride (HCI), Hydrogen Fluoride (HF), Hydrogen Sulphide (H2S), Methane (CH4) and Sour Gas (H2S+CH4). It offers one of the greatest breakthroughs in gas detection technology with the patented Harmonic Fingerprint and SimuGas.

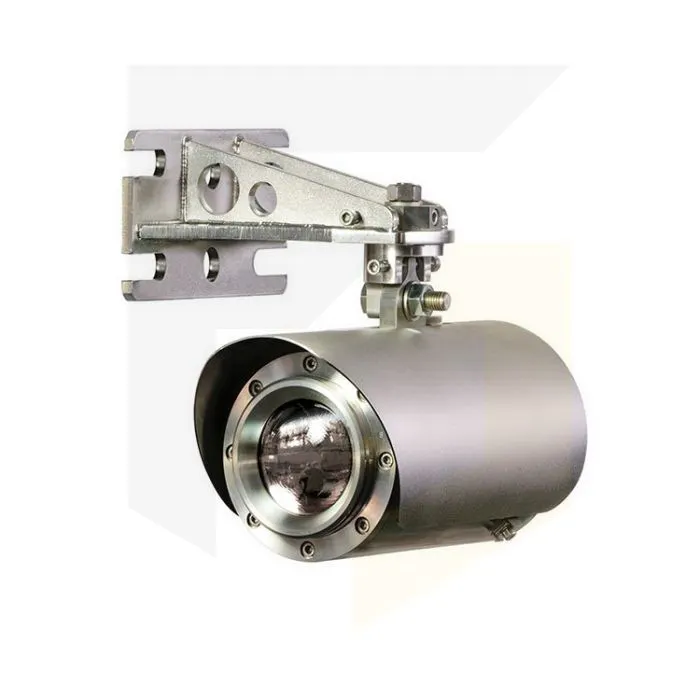

Every system will consist of a transmitter sending an eye safe laser signal to a receiver. Any target gas falling into the beam will alter the laser signal to generate the harmonic fingerprint, resulting in false alarms being virtually non-existent. The SimuGas technology eliminates the need for manual calibration providing a daily auto gas test, in turn reducing maintenance costs and increasing employee safety. The Senscient ELDS Ammonia detector operates up to 120m, providing smaller installation costs than many fixed-point gas detection systems available on the market. This device is suited to both onshore and offshore environment as it’s made with 316L stainless steel.
- Increased safety with the fastest speed of response <3 Sec (specific to flammable gases)
- Elimination of false alarms from interference gases as experienced with many other fixed gas detectors (NH3 specific)
- Lock Cell providing a real target gas sample which eliminates laser drifts
- No consumable parts and no on-going cost for replacing sensing elements
- Class 1 eye safe tuneable lasers
- Suitable for usage in SIL 2 Systems
- IP66-67 protection NEMA Type 4/4X/6
- Bluetooth allowing for troubleshooting and events to be logged and downloaded without the need for physical involvement
Size |
Tx/Rx 140 MM DIA. X 300 MM [5.5” DIA X 11.8”] |
Weight |
Tx/Rx 12 KG [26.5 LB] EACH (C/W BRACKET) |
Gas |
Ammonia (NH3) |
Ranges |
0-200 ppm.m – (5/40m Range only) 0-1000 ppm.m 0-5000 ppm.m 0-15000 ppm.m |
Format |
Individual Transmitter (Tx) & Receiver (Rx) |
Path Length |
5-40 m OR 40-120 m (16-131 FT OR 131-394 FT) |
Response Time |
T90 ≤ 3 Seconds |
Repeatability |
<± 5% FSD |
Linearity |
<± 5% FSD |
Enclosure Material |
316L Stainless Steel |
Lens Material Tx |
Faceted Optical Glass |
Lens Material Rx |
Aspheric optical glass |
Operating Temperature |
-55°C To +60°C (Ambient) [-67°F To 140°F] |
Humidity |
0 - 100% Rh (Non-Condensing) |
Vibration |
10 - 150 Hz, 2 g |
EMC |
EN50270 |
Sun / Deluge Protection |
Tx & Rx Supplied With Sun Shield/Deluge Protection |
Mounting |
Tx & Rx supplied with mounting brackets incorporating fixing holes / slots for flat surface or metal pole mounting. (note: mounting poles should be of 4” to 6” [100mm to 150mm] diameter. Fixing bolts / u bolts are not supplied) |
Alignment |
± 0.5° |
Obscuration |
Operates Up To 95% |
Heated Optics |
Tx & Rx lenses are continuously heated |
Laser Beam |
CLASS 1 (EYE SAFE) IEC 60825-1 |
FDA Accession No. |
1410373-000 (FOR IMPORTS INTO USA) |
Calibration |
Factory calibrated for life |
Diagnostics |
Low Signal, Beam Block, Inhibit, Fault, Over Range |
Operating Voltage |
Tx & Rx +24VDC (+18 TO +32 V DC) |
Power Consumption |
Tx = 12 W (MAX), Rx = 10 W (MAX) |
Outputs (Analog x 2) |
4-20 mA, Configurable For 2 Wire Isolated Or Single Wire, Sink Or Source. |
Low Signal |
3 mA (CONFIGURABLE 1 TO 4 mA) |
Beam Block |
2.5 mA (configurable 0 to 3.5 mA) |
Inhibit |
2 mA (configurable 1 to 3.5 mA) |
Fault |
0.5 mA (configurable 0 to 1 mA) |
Over Range |
21.5mA (configerable 20 to 21.9 mA) |
Digital Output |
HART 7.1 & MODBUS RTU supported |
Approvals |
CSA AND UL: Class I Div 1 Groups B, C & D T5 Class II Div 1 Groups E, F & G T5 Class III Div 1 Ex D IIb + H2 T5 Class I, Zone 1, AEx D iib + H2 T5 Tamb = -40°C To +60°C [-40°F To 140°F] Entry: 3/4” Npt
ATEX / IECEX: II 2 GD Exd IIB + H2 T5 Tamb -40°C TO +60°C Gb [-40°F TO 140°F] Ex tb IIIC T100°C [212°F] Tamb = -40°C TO +60°C [-40°F TO 140°F] Db IP66/67 ENTRY: M25
Customs Union Of Russia, Kazakhstan & Belarus: EAC EX TR CU CoC IExdIIBT5/H2X ENTRY: M25
INMETRO: Ex d IIB + H2 T5 Gb Ex tb IIIC T100°C Db IP66/67 Tamb: -40°C TO +60°C [-40°F TO 140°F] ENTRY: M25
GOST-K: EAC Ex TR CU Coc IExdIIBT5/H2X Entry: M25
GOST-R: EAC Ex TR CU Coc IExdIIBT5/H2X Entry: M25 |
