MSA SUPREMA Touch - Gas Control System (Pre-Configured)

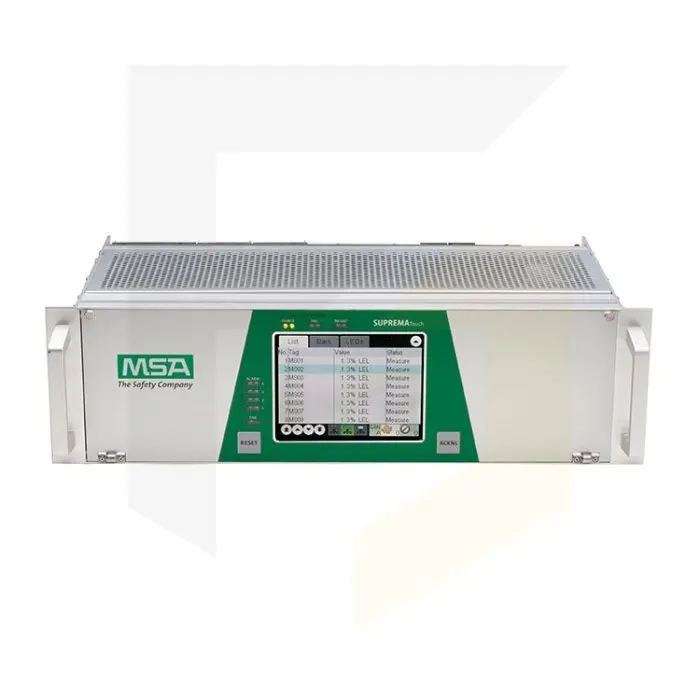

The SUPREMATOUCH is an easy to operate fire and gas detection controller that is compatible with a range of flammable & toxic gas, fire, smoke, oxygen and heat detectors. The SUPREMATOUCH suited to a variety of industries and applications and is designed for a 19” rack (industry standard) but also available in wall mount version. It features a multi-lingual, user friendly touch screen display, meaning operation of this system is simple.
Its modular design ensures this controller can fit most installations, while also being compatible with existing SUPREMATOUCH installations. It can support up to 256 sensor inputs and 512 relay outputs and able to fulfil the requirements of the most demanding applications.
The newly improved log book identifies and displays any issues occurring on the touch screen display, improving the efficiency and effectiveness in the maintenance of this system. The SUPREMA Manager software gives users all the functionalities from the SUPREMATOUCH display straight to a PC via a USB connection. This allows for reporting to be sent to documentation and graphic visualisation & modification of multi-level relay logic shown in a tree view.
To add to this the calibration software enables the user to calibrate sensors and produce informative calibration reports. Inputs and outputs can now be wired up to distances of 2km due to the satellites allowing for a decentralised configuration and reducing the cost of wiring. Reduce the overall cost of ownership with this controller while also owning a system that almost matches the functionality of many PLCs.
- Enables intuitive operation through its multi-lingual touchscreen
- Redundant input card ensures SIL3 compatibility
- Less plant shutdowns
- Remote, one-man and group calibration available via the compatible software
- Setup time reduced by the SUPREMA Manager software
- No programming skills required to configure
- Optional HART support
- Supports Micro SD cards
- Parametrise or configure offline
- Fully compatible with MSA’s full range of fire & gas detectors
Enclosure |
Standard 19” rack 3U high (up to 8 racks per system) |
System |
Satellites for decentralised input and outputs up to a distance of 5000 m Optional redundant configuration Event and fault diagnosis logging |
Inputs |
Up to 256 sensor inputs and 64 switch inputs per system Up to 80 inputs per rack |
Outputs |
Up to 512 relay outputs and 256 analogue outputs per system Up to 400 outputs per rack Switched open-collector driver (24 V, 300 mA) Relays – SPCO or SPST redundant (230 V, up to 5A) Optional solid-state relays for low current applications Software-control of switched outputs/relays:
Alarm multiplication |
Power Supply |
Operating voltage range – 18 to 32 VDC Optional rack power supply – 85 to 265 VAC, 250 W, 50/60 Hz Power supply connections for internal, external and battery backup (24 VDC) with automatic switch-over |
Controls and indicators |
Alarm reset and acknowledge keys Switch inputs for remote reset and acknowledge Front panel LEDs for alarms 1, 2, 3 and 4, signal fail, inhibit, power and system fail 3 level password or keyswitch for secure access control |
Detectors |
Catalytic or IR for combustible 4–20 mA transmitters, transmitters with HART ability Electrochemical for toxic and oxygen Conventional smoke, heat and fire detectors |
Approvals |
|
Interfaces |
Optional interfaces to external bus systems (Modbus RTU and TCP, Profibus) x RS-232 and 1 x USB electrically isolated interfaces for data transfer Ethernet, microSD card Printer report of system events (standard ASCII, 80 CHR) |
PC Software |
SUPREMA Manager SUPREMA Calibration Both ATEX approved and Win7&10 compatible |
