PRODUCT CODE
MSA-ULTIMAX-S
£0.00 £0.00

The Ultima X Series gas monitors detect combustible, toxic gases and oxygen. Enquire for this device or get in touch with our sales team to configure the best suited device for your gas detection needs on 0141 771 7749.

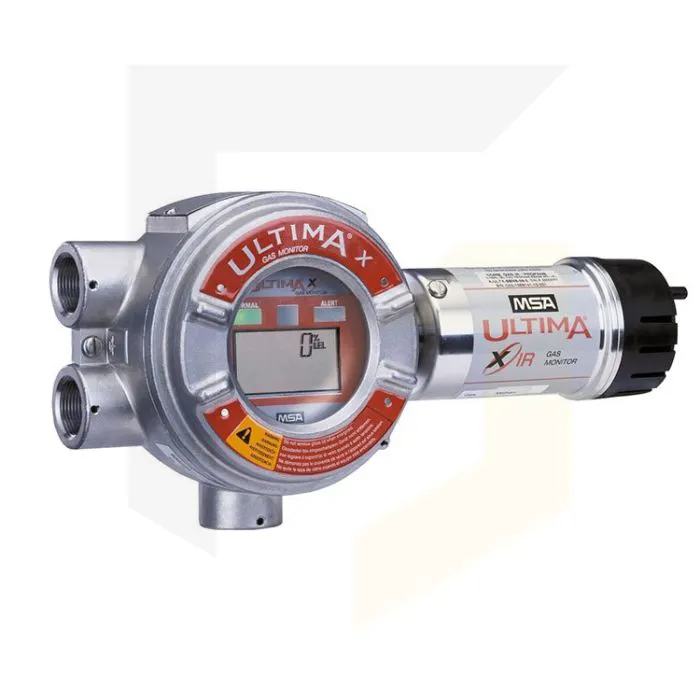

MSA Ultima X Series Gas Monitors

MSA Ultima X

The Ultima X Series range of gas monitors are for the detection of combustible gases as well as oxygen and toxic gases. They have an extremely robust stainless-steel casing that is explosion proof and can be used across a variety of indoor and outdoor locations. The Ultima X Series can act as a monitor on its own or be a part of a control system with its 4-20mA, HART output capabilities and the option of ModBUS RTU communication.

The Ultima X Series withholds calibration data within, via its Smart Sensor modules allowing pre-sets to be created for catalytic and toxic sensor settings. This device can also be calibrated live in the field, and this can be done tool free, while the device is still in power.

The Ultima X Series also has a more upgraded version available known as the Ultima X5000, which Is seen as the future of fixed gas detection due to its advanced technology. Enquire for this device or get in touch with our sales team to configure the best suited device for your gas detection needs on 0141 771 7749.

Find the GM S5000 Fixed Gas Detector here.

Key Features
  • Servicing simplified as designed with single-board
  • Compensates for temperature and humidity
  • Highly visible quick-check LEDs
  • 3 Sensors capability
Specifications

Gas Types

Combustible, toxics and oxygen

Temperature Range

–40°C to +60°C (–40°F to +140°F) (typical, range for some gases may differ)

Drift

Zero Drift

Span Drift



< 5% per year, typical

<10% per year, typical

Accuracy

Repeatability



± 1% Full Scale or 2 ppm, typical

Linearity

± 2%Full Scale or 2 ppm

(O₂, CO), typical

± 3% Full Scale

(>50% LEL combustibles)

±10% Full Scale or 2 ppm

(non-CO toxics), typical

Response Times

τ20 oxygen and toxics

τ50 oxygen and toxics

τ50 combustibles

τ90 combustibles

τ90 XIR



<12 seconds (typically 6 seconds)

<30 seconds (typically 12 seconds)

< 8 seconds

<20 seconds

< 5 seconds (without sensor guard)

Humidity

15%– 95% RH, non-condensing

Sensor Life

Oxygen and toxics

Combustibles



1 years typical

2 years typical

Power Input

24 VDC (oxygen)

24 VDC @ 450 mA maximum

(combustibles)

24 VDC @750 mA maximum (XIR)

Wiring Requirements

Combustibles (incl. XIR)

Oxygen and toxics

Oxygen and toxics



3-wire

2-wire; no LEDs or relays

3-wire; LEDs and/or relays

Signal Output

ULTIMA XE



4–20 mA 2-wire current sink

4–20 mA 3-wire current source

Relay Contacts

Rating

Alarm



Fault



5 A @ 220 VAC; 5 A @ 30 VDC normally energised/de-energised, SPDT, upscale/downscale, latching/nonlatching normally energised, SPDT, non-latching

Cable Entries

Four, 3/4 inch NPT or 25 mm

Physical

Weight

Dimensions

Material



4.7 kg

261 x 160 x 99 mm (H x W x D)

316 Stainless Steel

Approvals

ULTIMA XE/XIR/X³

ULTIMA XE/XIR/X³

and Remote Sensor ULTIMA XE/XIR/X³



CE LowVoltage Directive: 2014/35/EU

CE ATEX Directive: 2014/34/EU

CE EMC Directive: 2014/30/EU

II 2G Ex d IIC T5Gb (main enclosure)

II 2G Ex d IIC T4Gb (sensor excluding IR)

II 2G Ex d IIC T5Gb (IR sensor)

II 2G Ex ia IIC T4Gb (sensor with safety barrier) –40°C Ta +60°C

EC-Type Examination Certificate

ULTIMA XE/XIR





ULTIMA Calibrator

ULTIMA Controller

DMT 02 ATEX E 202 X

Performance approval EN 60079-29-1:2007 EN 50104:2010 (PFG-No. 41301103P) EN 50271:2010

II 2G Ex ia IIC T4Gb

II 2G Ex ib IIC T3Gb

Warranty

24 months on all components including IR sensor (does not include catalytic or electrochemical sensor modules)
