PRODUCT CODE
MSA-ULTIMAX5000-1

The MSA Ultima X5000 is developed for the Detection of oxygen, toxic, and combustible gases and can support 2 Digital sensors or 1 IR detector and 1 digital sensor simultaneously with 4 wire connections.

For more information regarding configurations get in touch with our sales team 0141 771 7749.

* Required Fields

    £3,702.00 £3,085.00

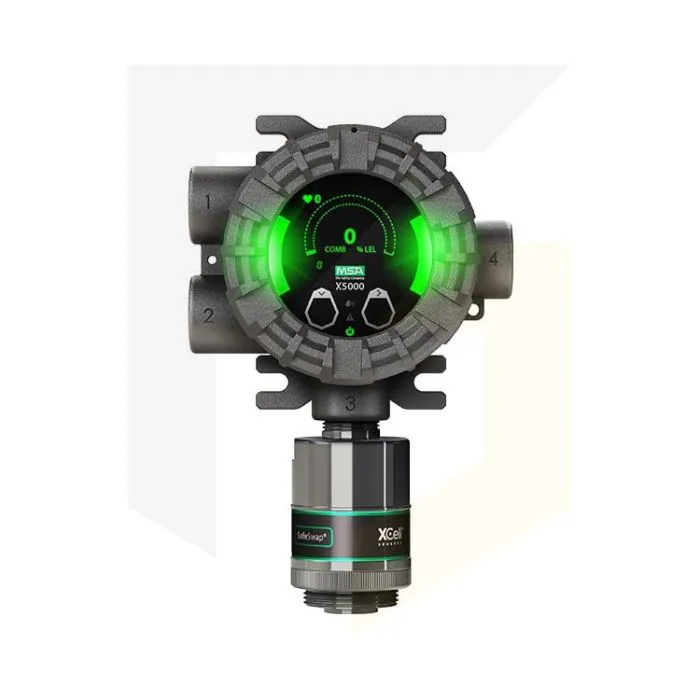

    MSA Ultima X5000 - Gas Monitor / 1 Sensor with Relay

    MSA Ultima X5000 - Gas Monitor / 1 Sensor with Relay

    The MSA Ultima X5000 is the future of Gas Detection for oxygen, toxic, and combustible gases. With a newly advanced OLED Display capable of 9 languages, it is easy to read and navigate due to the industry-first touch screen interface, allowing for a tool free user experience. MSA’s patented XCell sensors with TruCal increase calibration cycles for as long as 18 months (H2S & CO specific). The Ultima X5000 supports up to 2 Digital sensors or 1 IR detector and 1 digital sensor simultaneously with 4 wire connections (Configurable with 1 or 2 sensors).

    MSA’s patented TruCal Technology in the Ultima X5000 self-checks 4x every day resulting in stress free operation, better stability and extended calibration cycles. TruCal compensates for factors that may cause electrochemical sensor drift by continually monitoring sensor integrity and compensating for factors that may impact this (H2S & CO TruCal sensors only), truly separating itself from competition.

    An acoustic signal is sent every 6 hours ensuring the sensor inlets are not blocked, allowing gas to reach the sensor, known as diffusion supervision. If blocked the unit will go into fault mode, then return to normal operation once the blockage is removed. Sensors can be selected without Diffusion Supervision

    SafeSwap ensures the gas sensors can be replaced quickly and safely without turning off the device. Sensors can be mixed and matched to meet your gas detection needs, further displaying the unique benefits of this product. This device is fully configurable allowing it to be tailored to your specific needs and can be used across a variety of applications. Get in touch with our sales team to build your own configuration.

    Key Features
    • Bright green, yellow and red status LEDs for extreme visibility
    • Real time data in your hand via Bluetooth wireless technology
    • Reduce time of setting up by at least 50% through the X/S connect app
    • Check status and receive alerts up to 75ft (23m) away
    • Adjust settings/alarms/setpoints
    • Fits existing MSA X series wall mounts
    • Sensor readings adjusted in line with environmental factors
    • 3-year warranty & expected life of around 5-years for XCell sensors
    • Corrosion resistant 316L stainless steel
    • IP66 Rated
    Specifications

    Combustible Gas Sensor Type

    • Catalytic Bead (XCell Comb)
    • Infrared (XIR PLUS)

    Toxic Gas & Oxygen Sensor Type

    • Carbon Dioxide CO2 (XIR Plus)
    • Carbon Monoxide CO (XCell Toxic)
    • Carbon Monoxide CO H2-Resistant (XCell Toxic)
    • Hydrogen Sulphide H2S (XCell Toxic)
    • Oxygen O2 (XCell O2)
    • Sulphur Dioxide SO2 (XCell SO2)

    Sensor Measuring Ranges

    • Combustible: 0-100% LEL
    • CO2: 0-2%, 0-5% Vol
    • CO: 0-100, 0-500, 0-1000 ppm
    • CO-H2Resist: 0-100 ppm
    • H2S: 0-10, 0-50, 0-100 ppm
    • O2: 0-25%
    • SO2: 0-25 ppm

    Typical Sensor Life

    5 years – XCell Sensors

    10 years - infrared

    Sensor Performance

    T90 (Typical)

    Repeatability

    Zero Drift (Per Year)

    XIR Plus Comb

    < 2 sec.

    < +/- 1% LEL

    n/a

    XIR Plus CO2

    < 6 sec.

    < +/- 1% Vol

    n/a

    XCell Comb

    < 22 sec.

    < +/- 3% LEL

    ≤ 5% LEL

    XCell CO

    < 9 sec.

    < +/- 1%

    ≤ 1% full scale

    XCell H2S

    < 23 sec.

    < +/- 1%

    ≤ 1% full scale

    XCell O2

    < 11 sec.

    < +/- 0.1% Vol

    ≤ 0.2% Vol

    XCell SO2

    < 6 sec.

    +/- 1%

    ≤ 1%FS per mo.

    Approvals Classification

    Divisions (US/Canada)

    Class I, II, III; Div 1&2, T4/T5/T6;

    Zones (Global)

    Ex db nA IIC T5 Gb (Class I, Zone 1/ Zone 2)

    Ex tb IIIC T85°C Db (Class II, Zone21)

    Enclosure rating

    Type 4X, IP66

    Markings vary by component. See Manual for

    specific component markings.

    Warranty

    • X5000 Transmitter: 2 years
    • XIR PLUS: 10 years source, 5 years electronics
    • XCell Sensors: 3 years

    Approvals

    CSA, ATEX, IECEx, Inmetro, DNV Marine, CE

    Marking.

    Complies with C22.2 No. 152, FM 6320

    RED, FCC, Suitable for SIL 2

    Operating Temperature Range

    XCell: -40°C to +60°C

    XIR PLUS: -40°C to +60°C

    (may differ by gas, see manual)

    Storage Temperature Range

    40°C to +60°C

    Relative Humidity

    (non-condensing)

    • 10-95% (XCell Toxics & O2 )
    • 0-95% (XCell Comb)
    • 15-95% (XIR PLUS)

    Input Power

    11 to 30 VDC, 3 wire, <5W nominal

    Signal Output

    Dual 4-20 mA current source, HART

    Bluetooth

    (optional)

    Bluetooth Low Energy (BLE) v4.3 or higher

    Relay Ratings

    • 5A @ 30VDC; 5A @220 VAC
    • (3X) SPDT – fault, warn, alarm

    Relay Modes

    Common, discrete, horn

    Nominal max

    Power

    (w/ relays)

    • XIR PLUS 6.7W
    • XCell Comb 4.9W
    • XCell Toxic & O2 2.8W
    • XIR PLUS and XCell Comb 10.9W
    • XIR PLUS and XCell Toxic & O2 7.0W
    • Dual XIR PLUS 11.6W
    • Dual XCell Toxic & O2 3.6W
    • Dual XCell Comb 10.6W
    • Dual XCell Comb and XCell Toxic & O2 5.3W

    EMC Directive

    Complies with EN 50270, EN 61000-6-4,

    EN 61000-6-3

    Display

    Organic LED (multi-lingual) with Contrast Ratio of

    2000:1 and View Angle of 160°

    Hart

    HART 7, HART device description language

    available

    Faults Monitored

    Low supply voltage, RAM checksum error, flash

    checksum error, EEPROM error, internal circuit

    error, relay, invalid sensor configuration, sensor

    faults, calibration faults, general system)

    Wiring Requirements

    3-wire (single sensor) or 4-wire (dual sensor)

    shielded cable.

    Refer to manual for mounting distances and wire gauge.

    HOUSING (W X H)

    w/ XCell Sensor

    w/ XCell Sensor &

    XIR Sensor



    5.88” x 5.71” [150 mm x 145mm]

    5.88” x 10.15” [150 mm x 258 mm]

    13.42” x 10.15” [341 mm x 258 mm]

    Lid (Depth)

    w/ Relay Board

    w/o Relay board

    • 4.86” [123mm]
    • 3.86” [98 mm]

    Weight

    8.8 lbs (4 kg) - 316 SS
