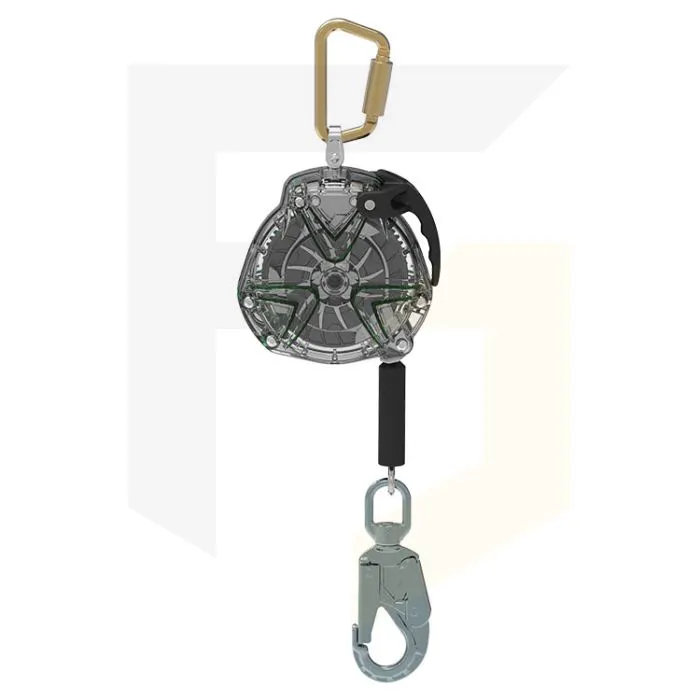

MSA V-TEC Self-Retracting Lifeline - 6 m (20 ft) with Galvanised Steel Cable
MSA V-TEC SRL - 6m is a self-retracting lifeline with a controlled cable retraction which prevents excessive lifeline retraction and helps protect internal components from damage.
This MSA V-TEC SRL has a clear casing which allows for a simple and quick inspection of the inside. It's easily transported thanks to the included carry handle.
There is no calibration required thanks to the spiral radial energy-absorbing technology. Downtime is also minimised as this unit can be serviced in the field.
It's an extremely reliable and robust SRL built with stainless steel and high quality engineered plastics.
Material |
|
Case |
Polycarbonate |
Pawls |
Hardened Stainless Steel |
Chassis |
Stainless Steel |
Fasteners |
Stainless Steel |
Retraction Spring |
Stainless Steel |
Drum Module |
PC-ABS (Polycarbonate / ABS blend) with aluminium threaded plate |
Cable Lifeline |
Galvanised or Stainless Steel |
Locking Mechanism |
Stainless Steel & Manganese Bronze Core |
Snap Hook |
Forged Zinc-plated steel / Stainless steel with load indicator |
Technical Specifications |
|
Length |
6m (20 ft.), 10m (30 ft.) or 15m (50 ft.) |
Lanyard Type |
Ø5mm galvanised or stainless steel cable (7x19 |
Size |
6m (20 ft.) :190 x 175 x 110 mm (HxWxD)
10m (30 ft.) :220 x 115 x 220 mm (HxWxD)
15m (50 ft.) :220 x 115 x 220 mm (HxWxD) |
Net Weight |
6m (20 ft.) : 4 kg10m
(30 ft.) : 7 kg15m
(50 ft.) : 7,6 kg |
Weight Range |
60 – 140 kg (including tools) |
Temperature Range |
-40 °C to 54 °C |
Performance |
|
Static Strength |
15 kN |
Maximum Arrest Distance |
2 m |
Maximum Arresting Force |
6 kN |
Approvals |
EN 360:2002
CNB/P/11.062 |
