- Description / Features / Spec

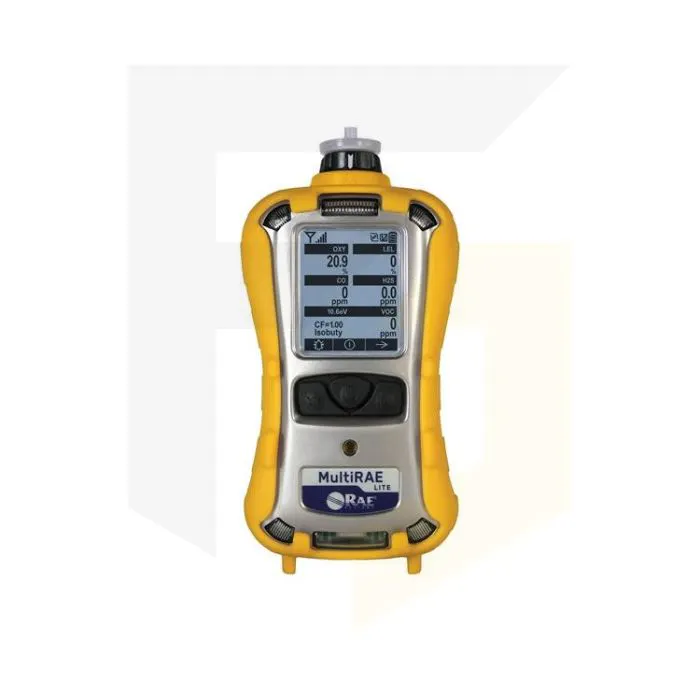

MultiRAE Lite Diffusion / CO2 / LEL /CO / O2 / Li-ion / Non-Wireless (PGM-6208)
The MultiRAE Lite is ideal for personal protection and multi gas leak detection in industries including chemicals, food and beverage, oil and gas (downstream), telecommunications and wastewater treatments. It’s a highly versatile monitor from RAE Systems.
It’s a multi gas detector with a broad range of sensors available and is able to monitor up to six gases. This particular model is a diffusion type and can safely detect the following gases: Carbon Dioxide (CO2), Combustible Gases (LEL), Carbon Monoxide (CO) and also Oxygen (O2).
In order to carry out bump tests and calibration checks the MultiRAE Lite can be used with the AutoRAE2 which is also available from Frontline Safety.
- Intelligent sensors store calibration data
- Graphical LCD is easy to see
- Simple user interface
- Easy maintenance. Replaceable sensors, pump, and plug-and-play battery
- Datalogging capability – continuous (6 months for 5 sensors, 24 x 7)
- Range of languages available
- 0 to 50,000 ppm CO2 NDIR
- 0 to 100% LEL (1% LEL))
- 0 to 500 ppm CO
- 0 to 30% Vol. O2
- 100 ppm CO2
- 1 % LEL
- 1 ppm CO
- 0.1% Vol. O2
Dimensions (W x H x D) 6.9” x 3.8” x 2.2” (175 x 96.5 x 56 mm) Weight 26.8 oz. (760g) Battery Options
- Rechargeable Li-ion battery (~18 hr runtime, <6hr recharge time)
- Extended duration Li-ion (~28 hr runtime, <9hr recharge time)
- Alkaline adapter with 4 x AA batteries (~8 hr runtime)
Sampling Diffusion Alarms
- Audible (95 dB @ 30 cm)
- Visible (flashing bright red LEDs)
- On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C) Humidity 0% to 95% relative humidity (non-condensing) IP Rating IP-65 Hazardous Location Approvals
- CSA: Class I, Division 1, Groups A, B, C and D, T4
- ATEX: 0575 II 2G Ex ia d IIC T4 Gb
- IECEx: Ex ia d IIC T4 Gb
CE Compliance (European Conformity)
- EMC directive: 2004/108/EC
- R&TTE directive: 1999/5/EC
- ATEX directive: 94/9/EC
- Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
- One year on all other sensors, pump, battery, and other consumable parts
- MultiRAE Lite monitor with sensors and battery as specified and protective rubber boot
- Travel charger and adapters for PC communications, AC, calibration and alkaline battery
- PC communications cable
- Toolkit with Hex tool and Philips screwdriver
- Quick Start Guide and CD with documentation
- ProRAE Studio II Instrument Configuration & Data Management Software
- Calibration and test certificate
- Warranty/registration card
