- Description / Features / Spec

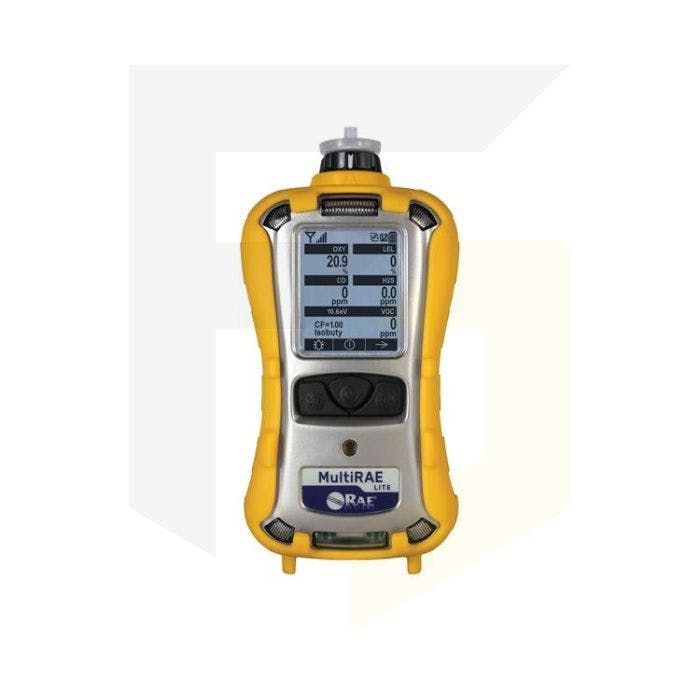

MultiRAE Lite Pumped / CO2 / LEL /CO / O2 / Li-ion / Non-Wireless (PGM-6208)
The MultiRAE Lite is a highly versatile monitor from RAE Systems and is ideal for personal protection and multi gas leak detection in industries including chemicals, food and beverage, oil and gas (downstream), telecommunications and wastewater treatment. It can also be used in fire overhaul.
It’s a multi gas detector with the ability to detect up to six gases. This particular model has a pump function and features the following sensors: Carbon Dioxide (CO2), Combustible Gases (LEL), Carbon Monoxide (CO) and also Oxygen (O2).
With the broadest sensor range in its class the MultiRAE Lite can be configured to meet your requirements. An additional piece of kit available for this detector is the AutoRAE 2 which carries out full bump tests and calibration checks.
- Sensors are intelligent and store calibration data
- Large graphical LCD display
- Easy-to-use interface
- Easy maintenance. Replaceable sensors, pump, and plug-and-play battery
- Datalogging capability – continuous (6 months for 5 sensors, 24 x 7)
- Multiple languages available
- 0 to 50,000 ppm CO2 NDIR
- 0 to 100% LEL (1% LEL))
- 0 to 500 ppm CO
- 0 to 30% Vol. O2
- 100 ppm CO2
- 1 % LEL
- 1 ppm CO
- 0.1% Vol. O2
Dimensions (W x H x D) 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm) Weight 31 oz. (880 g) Battery Options
- Rechargeable Li-ion battery (~12 hr runtime, <6hr recharge time)
- Extended duration Li-ion (~18 hr runtime, <9hr recharge time)
- Alkaline adapter with 4 x AA batteries (~6 hr runtime)
Sampling Built-In Pump Alarms
- Audible (95 dB @ 30 cm)
- Visible (flashing bright red LEDs)
- On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C) Humidity 0% to 95% relative humidity (non-condensing) IP Rating IP-65 Hazardous Location Approvals
- CSA: Class I, Division 1, Groups A, B, C and D, T4
- ATEX: 0575 II 2G Ex ia d IIC T4 Gb
- IECEx: Ex ia d IIC T4 Gb
CE Compliance (European Conformity)
- EMC directive: 2004/108/EC
- R&TTE directive: 1999/5/EC
- ATEX directive: 94/9/EC
- Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
- One year on all other sensors, pump, battery, and other consumable parts
- MultiRAE Lite monitor with sensors and battery as specified and protective rubber boot
- Travel charger and adapters for PC communications, AC, calibration and alkaline battery
- PC communications cable
- Toolkit with Hex tool and Philips screwdriver
- Quick Start Guide and CD with documentation
- ProRAE Studio II Instrument Configuration & Data Management Software
- Calibration and test certificate
- Warranty/registration card
- Belt clip installed
- 3 x spare external filters
- PID sensor cap removal tool
