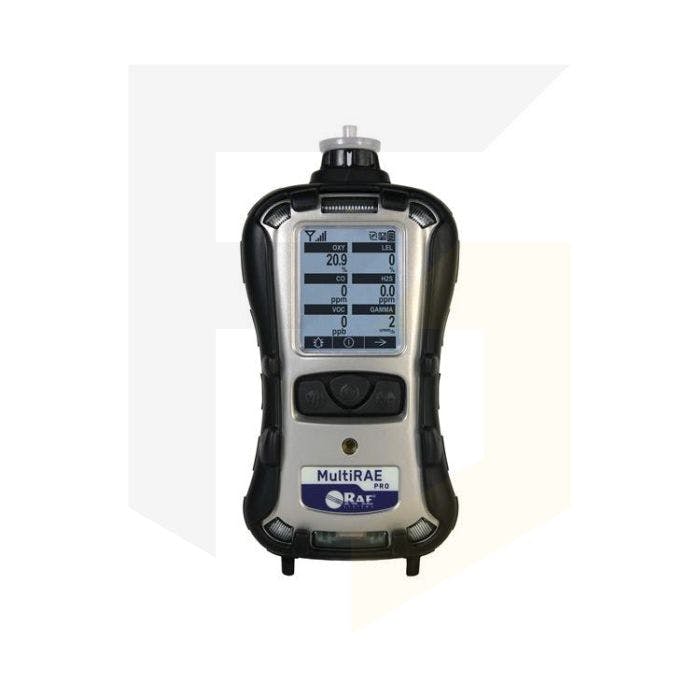

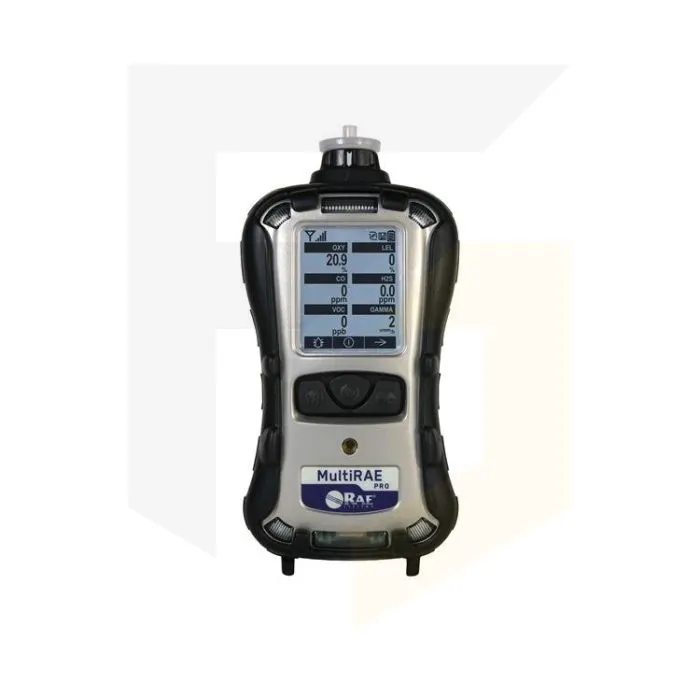

MultiRAE Pro Pump. 10.6 eV - PID/LEL/Cl2/NH3/O2 (PGM-6248) Gas Detector
  • LEL
MultiRAE Pro Pump. 10.6 eV - PID/LEL/Cl2/NH3/O2 (PGM-6248) Gas Detector

Product Code - MCA3-A3C168E-020

exc VAT £2,818.00 inc VAT £3,381.60

MultiRAE Pro Pump. 10.6 eV - PID / LEL / Cl2 / NH3 / O2 / Li-ion / Non-Wireless (PGM-6248) Gas Detector

Description / Features / Spec


MultiRAE Pro Pumped (PGM-6248)Li-ion Non-Wireless Gas Detector, 10.6 ppb eV PID/LEL/Cl2/NH3/O2

The MultiRAE Pro from RAE Systems is a highly versatile multi gas detector and is ideal for applications including civil defence, environmental, homeland security, HazMat response, military (CBRN detection, EOD) and also semiconductor manufacturing.

The detector has an all-in-one continuous monitoring capability which simultaneously measures up to 6 gases.  This particular model is a pumped version and features the following sensors: photoionization (PID), combustible gases (LEL), Chlorine (Cl2), Ammonia (NH3) and also Oxygen (O2).

The MultiRAE Pro is also compatible with the AutoRAE 2 and can carry out full automatic bump testing and calibration.

Key Features

  • Intelligent sensors store calibration data and can easily be swapped in field
  • Large graphical LCD display
  • Easy-to-use user interface
  • Easy maintainable unit
  • Sensors, pump and plug-and-play battery are all replaceable
  • Continuous datalogging capability – 6 months for 5 sensors at 1-min intervals, 24/7)
  • Multiple languages available


  • 0 to 2000 ppm VOC
  • 0 to 100% LEL
  • 0 to 50 ppm Cl2
  • 0 to 30% Vol. O2
  • 0 to 100 ppm NH3
  • 10 ppb VOC
  • 1% LEL
  • 0.1 ppm Cl2
  • 1 ppm NH3
  • 0.1% Vol O2
Dimensions (W x H x D) 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
Weight 31 oz. (880 g)
Battery Options
  • Rechargeable Li-ion battery (~12 hr runtime, <6hr recharge time)
  • Extended duration Li-ion (~18 hr runtime, <9hr recharge time)
  • Alkaline adapter with 4 x AA batteries (~6 hr runtime)
Sampling Built-In Pump with average flow rate: 250 cc/min - auto shutoff in low-flow conditions
  • Audible (95 dB @ 30 cm)
  • Vibration
  • Visible (flashing bright red LEDs)
  • On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
IP Rating IP-65 (IP-67 when off)
Hazardous Location Approvals
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX: 0575 II 2G Ex ia d IIC T4 Gb
  • IECEx: Ex ia d IIC T4 Gb
CE Compliance (European Conformity)
  • EMC directive: 2004/108/EC
  • R&TTE directive: 1999/5/EC
  • ATEX directive: 94/9/EC
  • Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
  • One year on all other sensors, pump, battery, and other consumable parts
What's Included?
  • MultiRAE Pro monitor with sensors as specified
  • Protective rubber boot, swivel belt clip and filter installed
  • Travel charger and adapters for PC communications, AC, calibration and alkaline battery
  • Desktop charging/PC communications cable
  • Toolkit with Hex tool and Philips screwdriver
  • Quick Start Guide and CD with documentation
  • ProRAE Studio II Instrument Configuration & Data Management Software
  • Calibration and test certificate
  • Warranty/registration card
  • 3 x spare external filters
  • PID sensor cap removal tool
  • PID zeroing filter (P/N: 008-3024-000)
  • IP-67/decontamination valve accessory
  • 6" flexi probe with inlet adapter
  • Comes in a "Pelican" case with custom foam that can also accommodate accessories and 2 calibration gas cylinders with 2 regulators (sold separately)
