PRODUCT CODE
MCA3-A3C1REZ-020
£5,895.60 £4,913.00

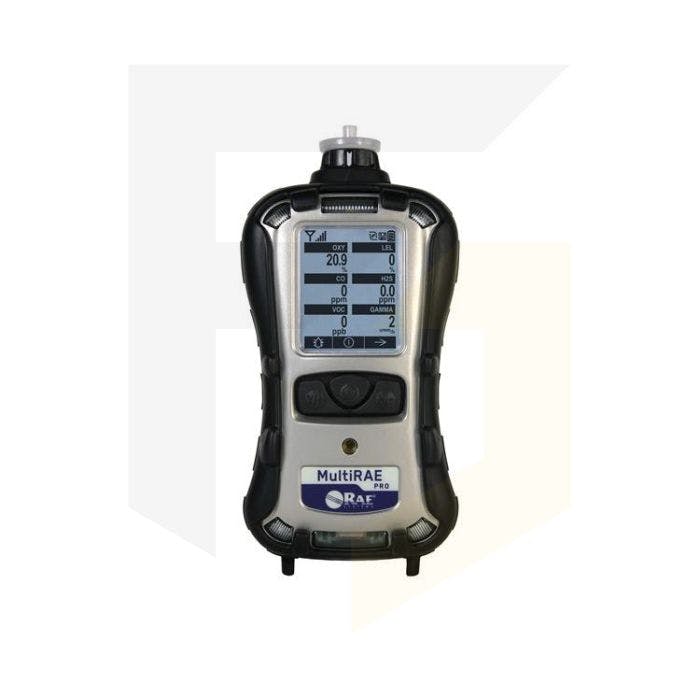

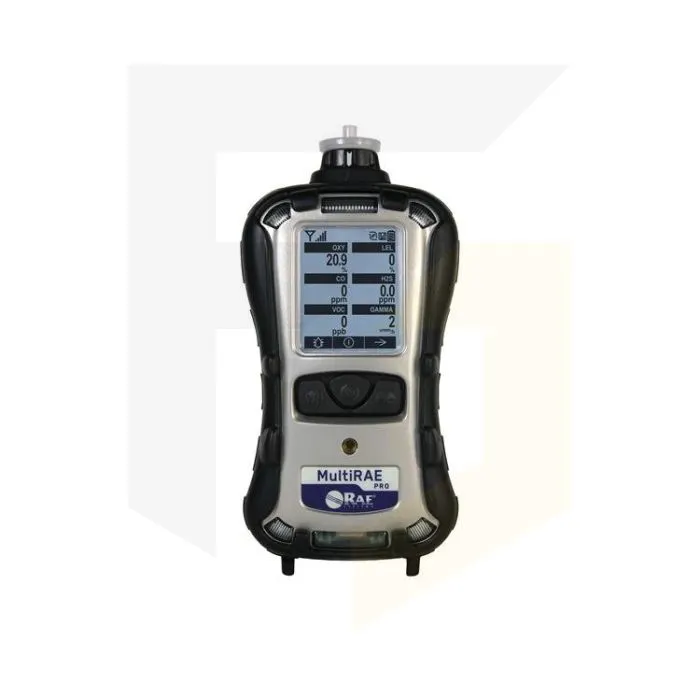

MultiRAE Pro Pump. 10.6 eV ppb PID / LEL / CO+H2S / O2 / Gamma Li-ion / Non-Wireless (PGM-6228)



MultiRAE Pro Pump. 10.6 eV ppb PID/LEL/CO+H2S/O2/Gamma (PGM-6228)

MultiRAE Pro (PGM-6228) Pumped Gas Detector, 10.6 eV ppb PID / LEL / CO+H2S / O2 / Gamma / Li-ion /  Non-Wireless

The MultiRAE Pro is a highly versatile instrument with advanced simultaneous monitoring capabilities.  It’s ideal for applications such including civil defence, environmental, homeland security, HazMat response, military (CBRN detection, EOD) and also semiconductor manufacturing.

This multi gas detector from RAE Systems can detect up to 6 gases.  It’s a pumped model and features the following sensors: photoionization (PID), combustible gases (LEL), Oxygen (O2), Gamma and also a combined Hydrogen Sulphide (H2S) and Carbon Monoxide (CO) sensor.

When carrying out fully automatic bump tests and calibration checks the MultiRAE Pro can be used with the AutoRAE 2 which is also available from Frontline Safety.

Key Features
  • Calibration data is stored by intelligent sensors which can be easily swapped in field
  • Easy-to read, large LCD display
  • Simple user interface
  • Replaceable sensors, pump and plug-and-play battery
  • Continuous datalogging capability – 6 months for 5 sensors at 1-min intervals, 24/7)
  • Multiple languages available
Specifications
Range
  • 0 to 2000 ppm VOC
  • 0 to 100% LEL
  • 0 to 500 ppm CO
  • 0 to 30% Vol. O2
  • 0 to 200 ppm H2S
  • 0 to 20,000 μREM/h, 1 μREM to 4.29 REM (dose range)
Resolution
  • 10 ppb VOC
  • 1% LEL
  • 1 ppm CO
  • 0.1% Vol. O2
  • 0.1 ppm H2S
  • 1 μREM/h
Dimensions (W x H x D) 7.6" H x 3.8" W x 2.6" D (193 x 96.5 x 66 mm)
Weight 31 oz. (880 g)
Battery Options
  • Rechargeable Li-ion battery (~12 hr runtime, <6hr recharge time)
  • Extended duration Li-ion (~18 hr runtime, <9hr recharge time)
  • Alkaline adapter with 4 x AA batteries (~6 hr runtime)
Sampling Built-In Pump with average flow rate: 250 cc/min - auto shutoff in low-flow conditions
Alarms
  • Audible (95 dB @ 30 cm)
  • Vibration
  • Visible (flashing bright red LEDs)
  • On-screen indication of alarm conditions
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
IP Rating IP-65 (IP-67 when off)
Hazardous Location Approvals
  • CSA: Class I, Division 1, Groups A, B, C and D, T4
  • ATEX: 0575 II 2G Ex ia d IIC T4 Gb
  • IECEx: Ex ia d IIC T4 Gb
CE Compliance (European Conformity)
  • EMC directive: 2004/108/EC
  • R&TTE directive: 1999/5/EC
  • ATEX directive: 94/9/EC
Warranty
  • Two years on non-consumable components and catalytic LEL, CO, H2S, and O2 sensors
  • One year on all other sensors, pump, battery, and other consumable parts
What's Included?
  • MultiRAE Pro monitor with sensors as specified
  • Protective rubber boot, swivel belt clip and filter installed
  • Travel charger and adapters for PC communications, AC, calibration and alkaline battery
  • Desktop charging/PC communications cable
  • Toolkit with Hex tool and Philips screwdriver
  • Quick Start Guide and CD with documentation
  • ProRAE Studio II Instrument Configuration & Data Management Software
  • Calibration and test certificate
  • Warranty/registration card
  • 3 x spare external filters
  • PID sensor cap removal tool
  • PID zeroing filter (P/N: 008-3024-000)
  • IP-67/decontamination valve accessory
  • 6" flexi probe with inlet adapter
  • Comes in a "Pelican" case with custom foam that can also accommodate accessories and 2 calibration gas cylinders with 2 regulators (sold separately)
