PRODUCT CODE
M020-22111-111
£943.20 £786.00

This four-gas detector can detect levels of LEL, CO, H2S and O2. It has wireless capability.
Please note: the product image above is for illustration purposes only.  The Diffusion monitor will differ slightly.



QRAE 3 Diffusion ATEX LEL/H2S/CO/O2 - Li-ion/Non-Wireless

QRAE 3 Diffusion ATEX LEL/H2S/CO/O2 - Li-ion/Non-Wireless

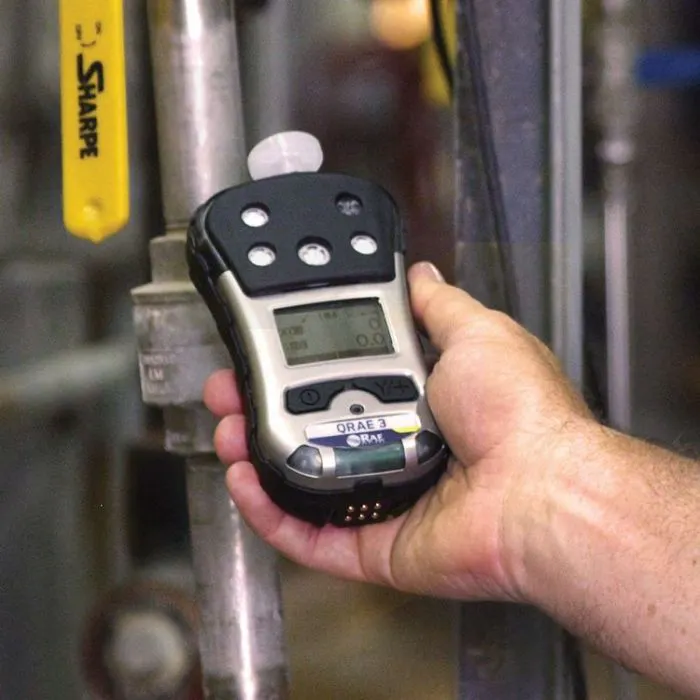

The QRAE 3 from RAE Systems is a multi gas detector which is capable of detecting the following gases: LEL and combustibles, carbon monoxide (CO), oxygen (O2) and hydrogen sulphide (H2S).  It is a diffused instrument.

Please note: the product image above is for illustration purposes only.  The Diffusion monitor will differ slightly.

Real-time readings can be provided wirelessly and the detector will also offer 24/7 alarm statuses.  The QRAE 3 can be used in applications such as industrial safety, oil and gas, fireground “Toxic Twins” detection, environmental and fire and emergency response.  The response time to the detection of gases will also be greatly improved and you will better visibility of these levels.

This multi gas detector has a large graphical display that can be rotated 180 degrees.  It’s very easy to use with a two-button operation keypad and is easily maintainable.  It will come with a stainless-steel alligator clip swivel belt clip.

Key Features

• Easy access to the pump, sensors, filter and battery compartment which can be easily replaced
• Integrated continuous data logging capability (3 months for 4 sensors at 1-minute intervals, 24/7)
• Triple alarm system (audible, vibration and visible LEDs).
• Compatible with the AutoRAE 2 (not included) to allow fully automated bump testing and calibration
• IP65/67 water and dust-resistant case with concussion-proof design
• Multi-language support

Specifications

Size

Diffusion: 5.5 "H x 3.2 "W   x 1.5" W (140 mm x 82mm x 42mm)

Weight

Diffusion: 12.9 oz (365 g with   Li-ion battery and clip)

Sensors (Range)

  •     O2 – 0-30%   Vol
  •     Combustible:   0-100%LEL
  •     Carbon   Monoxide: 0 – 500ppm
  •     Hydrogen   Sulphide – 0 - 100 ppm

Sensors (Resolution)

  •     O2 – 0.1%
  •     Combustible:   1% LEL
  •     Carbon   Monoxide: 1ppm
  •     Hydrogen   Sulphide – 0.1ppm

Battery

Rechargeable Li-Ion

Running Time

  •   14 hours continuous non-wireless,   diffusion
  •   10 hours continuous with wireless,   diffusion
  •   8 hours continuous   with wireless, pumped
  •   Note: All battery   specifications at 68° F (20° C); lower temperatures and alarm conditions   will affect runtime

Display

  •     Monochrome   graphic display (128 x 80)
  •     Display size:   1.57" W x 1.06" H (40 x 27 mm) with backlighting

Direct Readout

• Real-time reading of gas concentrations

• Battery status

• Pump status (if equipped with pump)

• Wireless on/off and wireless reception   quality

• STEL, TWA, peak, and minimum values

• Man Down and policy   enforcement indicators

Alarm (dB)

Multi-tone 95dB buzzer (at 11.8"/30 cm,   typical)

Communication and Data Download

  •   Data download and   instrument set-up and upgrades on PC via
  •   Travel Charger
  •   Wireless data and   status transmission via built-in RF modem (optional)

Wireless Network

Mesh RAE Systems Dedicated Wireless Network

Wireless Frequency and Approval

ISM license free band, 868Mhz or 900Mhz FCC   Part15, CE R&TTE, ANATEL

Wireless Range (Typical)

  •   EchoView Host: LOS   > 650 ft (200 m)3
  •   ProRAE Guardian and   RAEMesh Reader:  LOS > 650 ft (200 m)3
  •   ProRAE Guardian and   RAELink3 Mesh: LOS > 330 ft (100 m)3

EM Immunity

  •   EMI and ESD test:   100MHz to 1GHz   30V/m, no alarm
  •   Contact: ±4kV
  •   Air: ±8kV, no alarm

Calibration

Two-point calibration for zero and span   (manual, or automatic with AutoRAE 2)

Hazardous Area Approval

  •   US and Canada:   classified for use in Class I,
  •   Division 1, Groups   A, B, C and D
  •   Europe: IECEx/ATEX   (II 1G Ex ia IIC T4)

Temperature

-4° to 122° F (-20° to 50° C) for T4   temperature code

Humidity

0% to 95% relative humidity (non-condensing)

Languages

Arabic, Chinese, Czech, Dutch, English,   French, German, Indonesian, Italian, Japanese, Korean,
  Norwegian, Polish, Portuguese,   Russian, Spanish, and Swedish (language   must be changed through ProRAE Studio II)

Warranty

2-year warranty on device2
  3-year warranty on LEL, O2, CO, H2S sensors2

What's Included?

  • QRAE 3 with specified sensors
  • Calibration Adapter
  • Internal Filters (Mounted)
  • Travel charger cradle with computer cable
  • Lithium-ion battery pack
  • Universal wall adapter
  • CD ROM with ProRAE Studio II
  • CD ROM with product content
  • Quick Reference Guide
  • Barrier Box
