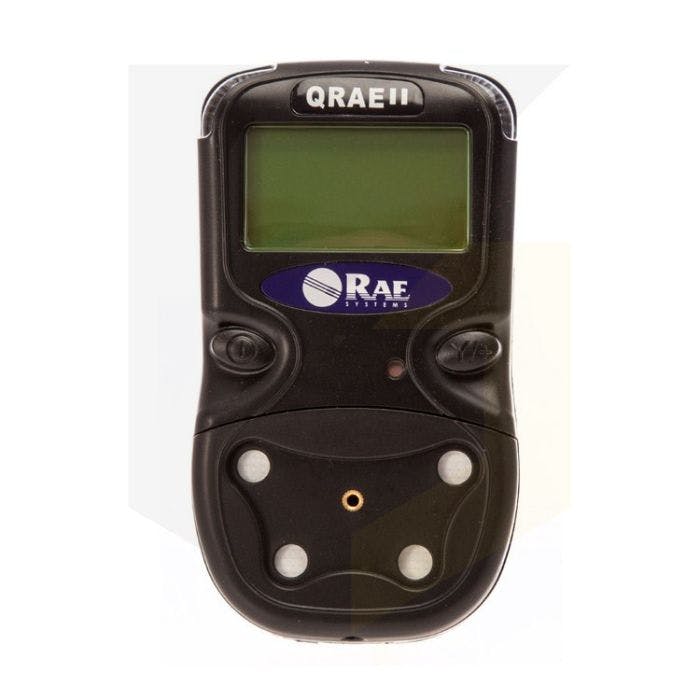

QRAE II (PGM-2400) Diff. LEL ATEX/O2/H2S/CO Gas Detector

QRAE II (PGM-2400) Diffusion, LEL ATEX / O2 / H2S / CO Gas Detector

Please note: this product is now obsolete, but servicing is still available.  This has been replaced by the BW GasAlertMicroClip XL, available on the Frontline Safety website.

The QRAE II is a compact, multi gas detector from RAE Systems and is ideal for applications where confined space entry and general safety and compliance are required.  This may include industries such as emergency response, environmental, fire service, industrial safety and also oil and gas.

This model in particular is a diffusion type detector and can safely monitor oxygen depletion, hydrogen sulphide (H2S), combustibles and also carbon monoxide (CO).

The O2 sensor in particular is patented and features a leak-free design which complies with RoHS directives.

Key Features
  • Pump, sensors, filter and battery compartment are easily accessible
  • Robust, rugged housing with concussion-proof design
  • Simple to operate with two-button user interface
  • Multi-language support
  • One-button calibration
  • Large graphical display, LED backlit and can be flipped 180°
  • Instant readings from four sensors plus high and low values for all gases
  • Datalogging capability – standard 12 days at 1 min intervals
Specifications
Range
  • 0 to 100% LEL
  • 0 to 30.0% O2
  • 0 to 100 ppm H2S
  • 0 to 1000 ppm CO
Resolution
  • 1% LEL
  • 0.1% O2
  • 0.1 ppm H2S
  • 1 ppm CO
Dimensions 5" L x 2.8" W x 1.5" H (12.5cm x 7.2cm x 3.8cm)
Weight 9 oz (250 g)
Battery Interchangeable Lithium-Ion or alkaline battery packs
Operating Period Up to 14 hours continuous operation with Lithium-ion battery, up to 10 hours with alkaline battery (typical, without alarm)
Alarms
  • Audible 95dB @ 30cm
  • Vibration
  • Visible Alarm (flashing bright LEDs)
  • High and Low values
  • STEL and TWA values
  • Additional diagnostic alarm and display message for low battery
IP Rating IP-65
Temperature -4° to 113° F (-20° to 50°C) for T4 temperature codes
Calibration Two-point calibration for zero and span (manual, or automatic with the AutoRAE Lite)
Humidity 0% to 95% relative humidity (non-condensing)
Hazardous Area Approval
  • US and Canada: CI, D1, Groups A, B, C, D, T4
  • Europe: ATEX II 2G EEx ia d IIc T4
  • IECEX: Ex ia d II C T4
Warranty Full 2-year warranty, including all sensors
What's Included
  • QRAE II monitor (Diffusion) with sensors as specified
  • Stainless-steel alligator clip
  • Calibration adapter and internal filters
  • Quick reference guide
  • User manual and ProRAE Studio Software Package for Windows® 2000, NT and XP on CD-ROM
  • Alkaline adapter
  • Charging/download cradle with computer interface cable
  • Universal adapter and lithium-ion battery pack
