PRODUCT CODE
020-1121-5B0

Please note: This product is now obsolete. We can still offer servicing on this monitor. An alternative product is the BW GasAlertMax XT II multi gas detector - available now from Frontline Safety.

Please note this product is currently discontinued.

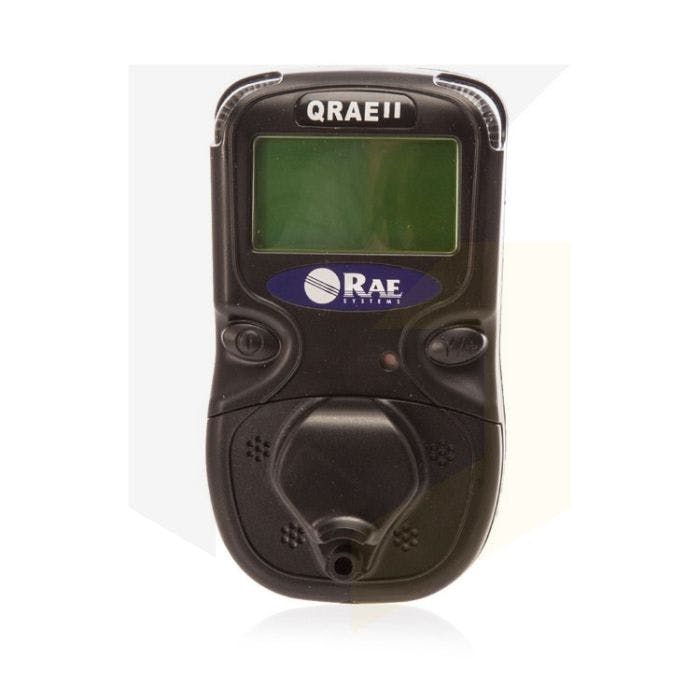

QRAE II (PGM-2400) Pump. LEL ATEX/O2/H2S/CO Gas Detector

QRAE II (PGM-2400) Pumped, LEL ATEX/O2/H2S/CO Gas Detector

Please note: This product is now obsolete.  We can still offer servicing of this monitor.  An alternative product is the BW GasAlertMax XT II multi gas detector - available now from Frontline Safety.

The QRAE II is a robust multi gas detector from RAE Systems.  It’s ideal for applications where confined space entry is carried out.  Suitable industries may include emergency response, environmental, fire service, industrial safety and also oil and gas.

This detector monitors four types of gases and also features an internal sampling pump.  The QRAE II features the following plug-in sensors: Oxygen (O2), Hydrogen Sulphide (H2S), Combustible Gases (LEL) and also Carbon Monoxide (CO).

The O2 sensor is state-of-the-art and has a leak-free design which complies with RoHS directives.

Key Features
  • Easy access to pump, sensors, filter and battery
  • Concussion-proof design is robust and rugged
  • Two-button operation
  • Multi-language support
  • One-button calibration
  • LED backlit screen which can be flipped 180° for easy viewing
  • Instant readings from four sensors plus high and low values for all gases
  • Datalogging capability – standard 12 days at 1 min intervals
Specifications
Range
  • 0 to 100% LEL
  • 0 to 30.0% O2
  • 0 to 100 ppm H2S
  • 0 to 1000 ppm CO
Resolution
  • 1% LEL
  • 0.1% O2
  • 0.1 ppm H2S
  • 1 ppm CO
Dimensions 5" L x 2.8" W x 1.5" H (12.5cm x 7.2cm x 3.8cm)
Weight 9 oz (250 g)
Battery Interchangeable Lithium-Ion or alkaline battery packs
Operating Period Up to 14 hours continuous operation with Lithium-ion battery, up to 10 hours with alkaline battery (typical, without alarm)
Alarms
  • Audible 95dB @ 30cm
  • Vibration
  • Visible Alarm (flashing bright LEDs)
  • High and Low values
  • STEL and TWA values
  • Additional diagnostic alarm and display message for low battery
IP Rating IP-65
Temperature -4° to 113° F (-20° to 50°C) for T4 temperature codes
Calibration Two-point calibration for zero and span (manual, or automatic with the AutoRAE Lite)
Humidity 0% to 95% relative humidity (non-condensing)
Hazardous Area Approval
  • US and Canada: CI, D1, Groups A, B, C, D, T4
  • Europe: ATEX II 2G EEx ia d IIc T4
  • IECEX: Ex ia d II C T4
Warranty Full 2-year warranty, including all sensors
What's Included
  • QRAE II monitor (Pumped) with sensors as specified
  • Stainless-steel alligator clip
  • Water trap filter
  • Quick reference guide
  • User manual and ProRAE Studio Software Package for Windows® 2000, NT and XP on CD-ROM
  • Alkaline adapter
  • Charging/download cradle with computer interface cable
  • Universal adapter and lithium-ion battery pack
