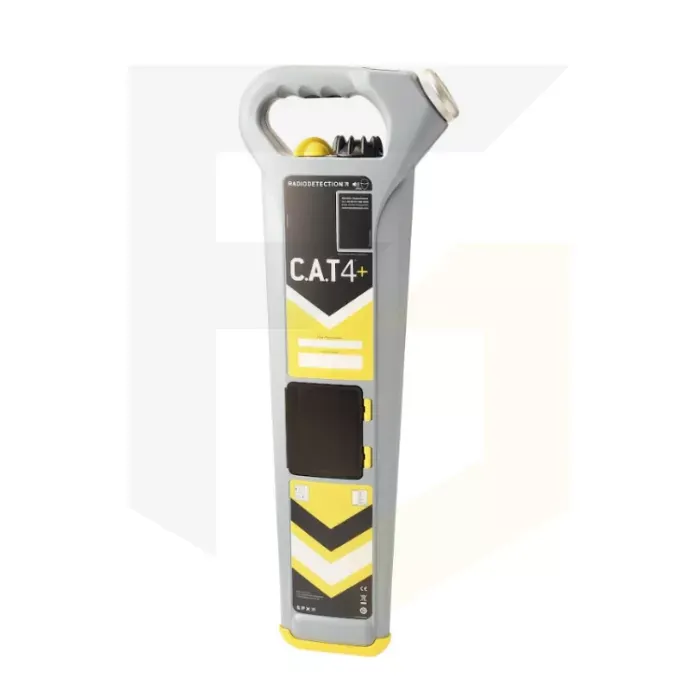

Radio Detection C.A.T4+ Cable Avoidance Tool - Strike Alert / Metric

PRODUCT CODE:: 10/CAT4+RD31

The Radiodetection C.A.T4+ includes all the features of the C.A.T4 with the addition of on-demand depth estimation, allowing operators to gauge how deep a buried utility is located.

£1,429.20 inc VAT

£1,191.00

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

The Radiodetection C.A.T4+ is a fourth-generation cable avoidance tool designed to locate buried pipes and cables prior to excavation. It includes all the functionality of the standard C.A.T4, with the addition of on-demand depth estimation for buried utilities up to 4m deep in line mode and 7m in sonde mode.

This model includes StrikeAlert, which provides an audible and visual warning when the operator is within 300mm of a shallow buried utility. The Avoidance Mode allows operators to search for Power, Radio and Genny signals simultaneously, speeding up pre-dig surveys. Dynamic Overload Protection automatically filters out high levels of interference, enabling continued operation in electrically noisy environments such as substations and beneath high-voltage cables.

The C.A.T4+ is recommended for use with the Radiodetection Genny 4 Signal Generator for applying a traceable signal to specific utilities. It is suitable for industries including construction, utilities, telecoms, oil and gas, and municipal services.

Key Features

On-demand depth estimation up to 4m (line mode) and 7m (sonde mode) with ±5% accuracy
StrikeAlert warns operators when within 300mm of a shallow buried utility
Avoidance Mode simultaneously detects Power, Radio and Genny signals faster for surveying
Dynamic Overload Protection filters interference in electrically noisy areas
Dual frequency Genny detection (33kHz and 131 kHz) improves location of smaller cable
Detachable loud speaker for noisy environments
IP54 rated for all-weather operation
Lightweight high-impact ABS construction

Specification

Dimensions	71.6 x 25.1 x 6.4cm
Weight	2.3kg (including batteries)
Locate Modes	Power (P) – 50/60Hz and harmonics Radio (R) – 15kHz to 30kHz Genny (G) – 33kHz and 131kHz simultaneous Avoidance (A) – P+R+G combined
Locate Depth	Up to 3m (Power), 2m (Radio), 4m (Genny) in good conditions
Depth Estimation	Line mode – up to 4m Sonde mode – up to 7m Accuracy – ±5%
Locate Accuracy	±10% of depth
Dynamic Range	120dB
Battery	2 x D-Cell (NiMH recommended); 14 hours runtime with NiMH, 4 hours with alkaline
Ingress Protection	IP54
Operating Temperature	-20°C to +50°C
Storage Temperature	-20°C to +70°C
Construction	High-impact ABS plastic
Data Connection	USB 2.0
Warranty	12 months
