Sensepoint Flammable, Toxic and Oxygen Gas Sensors

PRODUCT CODE:: SENSEPOINT-GAS-SENSORS

For more information on the configuration of this fixed gas sensor and the various options available then speak to our Fixed Gas Detection Team on 0141 771 7749 and check out the product datasheet in the downloads tab below.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

£359.00

inc VAT

Product description

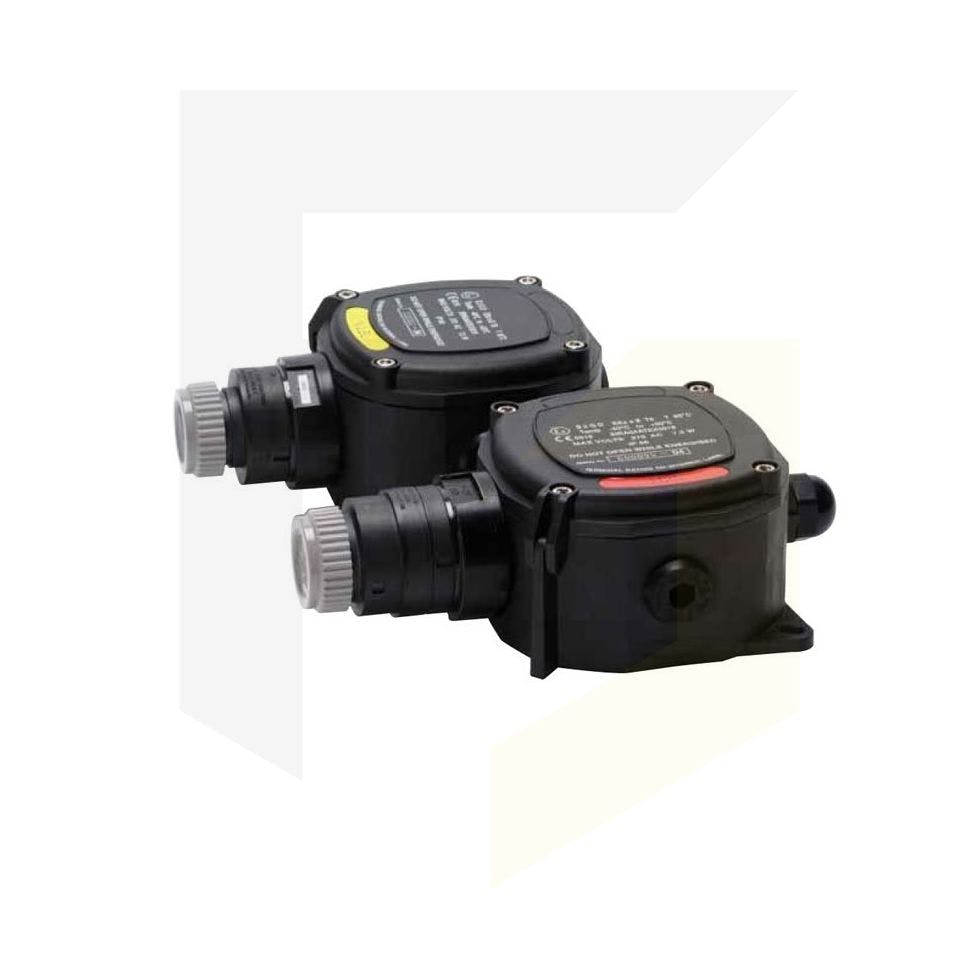

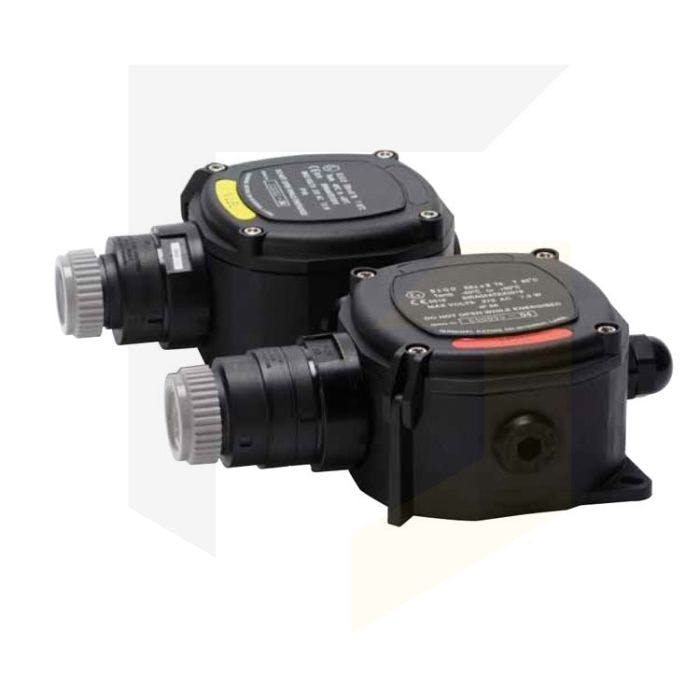

Sensepoint Flammable, Toxic and Oxygen Gas Sensors

The Sensepoint range of gas sensors can be used in potentially explosive atmospheres. They are supplied with a pre-wired junction box and can be installed using conduit or armored cables and glands. This is dependent on the needs of the application. They are designed to be directly connected to the Honeywell range of Touchpoint controllers.

Various gases and measuring ranges are available, please refer to the datasheet for more information. Detectable gases include flammables, oxygen, carbon monoxide, hydrogen sulphide, hydrogen, chlorine, Sulphur dioxide, nitrogen dioxide and ammonia.

The sensors are ATEX certified and comply with the latest European standards. They have a typical operational life of 2 to 5 years, depending on the configuration chosen.

Sensepoints are supplied with an earth continuity plate for increased resistance to the effects of RFI, the junction box offers the installer a choice of ½”, ¾” and M20 connection via conduit or armoured cable and Ex e certified cable glands. Terminals are suitable for use with screened 0.5mm2 (20AWG) to 2.5mm2 (14AWG) cross sectional area cable, as needed to ensure minimum operating voltage at the detector, depending upon installed cable length.

Key Features

Can be used indoors or outdoors
IP65 rated
Easy to use and minimal training is required
Installation is simple

Specification

Available Gas Types	Ammonia, Carbon Monoxide, LEL Methane, Hydrogen, Hydrogen Sulphide, Chlorine, Nitrogen Dioxide, Oxygen, Sulphur Dioxide
Standard Supply	Each detector is supplied complete with junction box, multiple cable entries, earth continuity plate, hinged lid and instruction leaflet, all sealed in a plastic bag inside a shipping carton
Shipping Details	Shipping carton dimensions: 160mm (6.3”) (L) x 215mm (8.5”) (W) x 80mm (3.1”) (D) Approximate weight: 800g
Operating Temperature	Check datasheet, depends on gas type and certification
Operating Humidity Range	Continuous: 20-90% RH (non condensing) Intermittent: 10-99% RH (non condensing)
Operating Pressure	90-110kPa
Storage Conditions	Instrument -40°C to +50°C (-40°F to +122°F)

Spares

Accessories
02000-A-1645 - Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter) and XNX MPD
00780-A-0160- Right Angle Mounting Bracket For Junction Box 00780-A-0100 (for Sensepoint, Satellite (with adapter) and XNX MPD)
02000-A-1635 - Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Satellite (with adapter) and XNX MPD)
02000-A-1640 - Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Satellite (with adapter) and XNX MPD)
02000-A-1642- Collecting cone for use with flammable detector (for Sensepoint, Satellite (with adapter) and XNX MPD)
90068-A-8204 - Gassing Block 316SST. 6mm O/D Connector to Sensor and 6mm Tube Connector to Gas Bottle
90068-C-8291- PTFE Tubing 8mm O/D x 6mm I/D. Price per Meter
90068-C-8292- Soft PVC Tubing 8mm O/D x 5mm I/D. Price per Meter
94000-C-1001 - 2" Pipe Mount Plate (please separately order 90083-A-8034)
90083-A-8034- 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SS for 2" Pipe Mount Plate
00780-A-0100 - Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved
2052D0001 - High temperature EX e junction box. ATEX approved
00780-A-0076- Stainless steel weather housing for Sensepoint HT or 705 HT (for use with in high temperature applications or with duct mounting kits)
2106B2114- Sensepoint & Signalpoint Toxic Calibration Kit including calibration cover, removal tool, potentiometer adjustment tool
2106D2055- M36/M40 thread adaptor
225-262-138 - Cable gland and caps, 20mm, Nylon
90053-A-7001 - 1-way Sensepoint M20 Duct Mount Kit. Please order separately 00780-A-0100, 02000-A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)
90053-A-7041 - 1-way Sensepoint M20 Duct Mount Kit 'High Temp'. Please order separately 2052D0001 and 00780-A-0076
90053-A-8002 - 1-way Sensepoint M25 Duct Mount Kit. Please order separately 00780-A-0100, 02000-A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)
00910-A-0404- Hydrophobic barrier assembly for Weather Housing
02000-A-1645 - Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter) and XNX MPD)
00780-A-0160 - Right Angle Mounting Bracket For Junction Box 00780-A-0100 (for Sensepoint, Satellite (with adapter) and XNX MPD)
02000-A-1635 - Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Satellite (with adapter) and XNX MPD)
90068-A-8204 - Gassing Block 316SST. 6mm O/D Connector to Sensor and 6mm Tube Connector to Gas Bottle
90068-C-8291 - PTFE Tubing 8mm O/D x 6mm I/D. Price per Meter
90068-C-8292 - Soft PVC Tubing 8mm O/D x 5mm I/D. Price per Meter
94000-C-1001 - 2" Pipe Mount Plate (please separately order 90083-A-8034)
90083-A-8034 - 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SS for 2" Pipe Mount Plate
