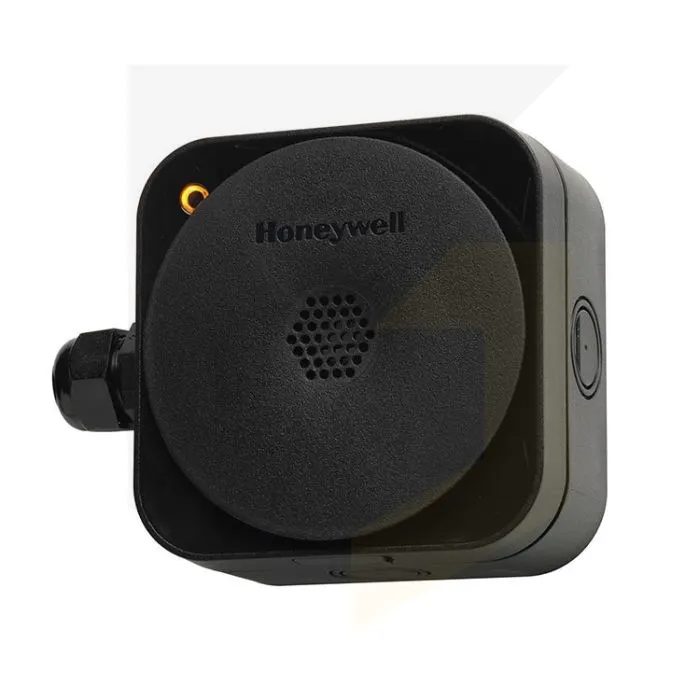

Sensepoint XCL Bluetooth Charcoal with Modbus and Relay
The Sensepoint XCL Bluetooth Charcoal (with Modbus and Relay) is designed by Honeywell to meet the requirements of commercial and light industrial applications as a fixed-point gas leak detection system. The inclusion of Bluetooth Low Energy allows the user to pair the device with the dedicated smartphone app and use their smartphone to perform certain tasks, all from the palm of their hand.
In terms of applications in which the Sensepoint XCL Bluetooth may be used in includes apartments, accommodation blocks and condominiums, hotels and leisure, kitchens and food processing, manufacturing facilities and factories, hospitals, retail sites, transportation and parking and laboratories. There are variations available of the Sensepoint XCL Bluetooth and more information can be found below
The dedicated smartphone app is available for both Android and iOS devices. The app allows you to easily receive a maintenance report or information such as gas history, should you be undertaking a safety audit for example. The Sensepoint XCL Bluetooth Charcoal can be completely configured using the smart device application. Accessories that are available for use with the system include multi-region field communicator charger and calibration/flow cap. For more information on the range of accessories please get in touch with us.
Available options include;
Part Number |
Description |
SPLCF6BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, Catalytic Sensor 0 to 100% LEL(CH4 calibrated), BLE enabled, Charcoal |
SPLCO1BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, Oxygen 0 to 25% vol , BLE enabled, Charcoal |
SPLCC1BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, CO 300ppm (adjustable 50-1000ppm) , BLE enabled, Charcoal |
SPLCH1BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, H2S 50.0ppm , BLE enabled, Charcoal |
SPLCH2BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, H2S(H) 100ppm (adjustable 50-200ppm) , BLE enabled, Charcoal |
SPLCG1BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, H2 1000ppm (fixed), BLE enabled, Charcoal |
SPLCN1BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, NO2 20ppm (adjustable 5-50ppm), BLE enabled, Charcoal |
SPLCA1BMRCXNZZ |
Sensepoint XCL, Modbus ,Relay, NH3(L) 100ppm (adjustable 50-200ppm), BLE enabled, Charcoal |
SPLCB3BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, CO2 5000 ppm (adjustable 1000 -5000 ppm), BLE enabled, Charcoal |
SPLCB4BMRCXNZZ |
Sensepoint XCL, Modbus , Relay, CO2 5 % v/v (adjustable 1.0 % v/v -5% v/v), BLE enabled, Charcoal |
- Quick to install the system as everything you need is included in the box
- Ingress protection of IP65
- Cost effective and time saving solution due to the use of familiar smartphone tech, simplifying maintenance as a result
- Modbus allows the device to transmit information to other devices over serial lines
- The relay output of the system provides additional ports allowing users to control equipment that is local to the system
Please refer to the datasheet for more information |
|
Dimensions |
113 x 113 x 59 mm ( 4.4 x 4.4 x 2.3 in ) |
Weight |
500 g (1.1 lb) |
Casing material |
Polycarbonate (Charcoal) |
Lifetime |
10 years (excludes sensor) |
Connection type |
Pluggable rising clamp style, 0.5 to 1.5 mm2, 20 to 16 AWG |
Available sensors: Flammable, Toxic Gases and Oxygen Ranges
|
|
Power supply (Nominal DC Input Voltage) |
24 V DC† |
Nominal AC Input Voltage |
24 V AC‡, 50/60 Hz |
Maximum Inrush Current |
850 mA |
Output (Analog Output) |
0 to 22 mA |
Digital Output |
Modbus RTU |
Relay Output |
2 relays rated at 24 V DC / 240 V AC, 5 A |
Maximum Power Consumption (mA Version) |
< 1.2 W (toxic), < 1.7 W (flammable and CO2) |
Modbus Versions |
< 0.7 W (toxic), < 1.2 W (flammable and CO2) |
Relay Versions |
Additional 0.6 W total |
Connection Type |
Pluggable rising clamp style, 0.5 to
|
User Interface Visual Indicator |
|
Wireless Interface |
Bluetooth 4.0 (Bluetooth Low Energy). Dedicated mobile app, enabling wireless configuration and maintenance. Connect up to 10 m away (mobile device dependent). Use a compatible smartphone or other mobile device running Android 4.3 or above. |
Operating Temperature |
−20 to 50°C (−4 to 122 °F) 0 to 30°C |
Storage Temperature |
(32 to 86 °F) |
Humidity |
15 to 90% RH (non-condensing) |
Atmospheric Pressure |
90 to 110 kPa |
Approvals Electrical Safety |
|
EMC |
EN 50270 |
Radio |
RED, FCC |
Other |
UL2075 (CO and CH4), AS 1668.2 |
- † mA versions: 11 to 32 VDC, Modbus versions: 9 to 32 VDC
- ‡ All versions: 20 to 27 VAC
