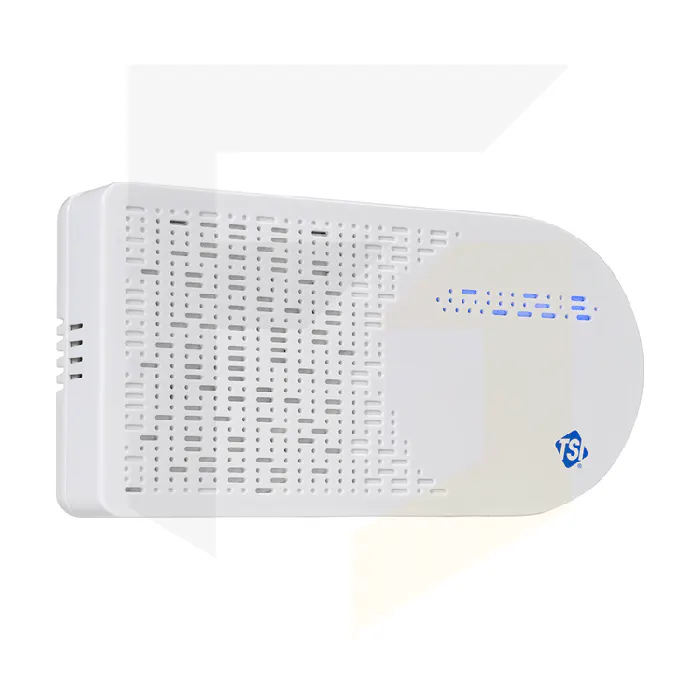

TSI AirAssure IAQ Monitor w/ Software (1 Year Subscription)
This TSI AirAssure Indoor Air Quality Monitor comes with a 1 Year Software Subscription that can be renewed via the TSI Website.
This version is a 4-gas AirAssure that is capable of measuring CO, tVOCs, CO2, formaldehyde, particulate matter, barometric pressure, temperature and relative humidity. Designed to maintain building health as an Internet of Things (IoT) solution. Simply install this monitor in less than 10 minutes and you're ready to measure.
Deploy one or more monitors and track real-time indoor air quality while using the TSI Link cloud-based software. This allows users to make effective decisions anytime and anyplace thanks to the remote access capabilities. The TSI AirAssure IAQ Monitor has a user-friendly dashboard making real-time analysis an easy process.
This indoor air quality monitor is perfect for:
- Childcare & Youth Programmes
- Colleges, Schools & Universities
- Government Agencies & Environmental Organisations
- Researchers
- Industrial Manufacturing, Factories, Power Generation, and Petrochemical Plant
- Healthcare, Hospitals, Assisted Living Campuses, Medical Offices, and much more
- Simply manage multiple devices from the comfort of your office or home
- Share data publicly if needed
- Set up custom alerts when certain levels are exceeded
Carbon Monoxide (CO) |
|
Range |
0- 1000 ppm |
Accuracy |
±15% of reading or ±15 ppb, whichever is greater |
Resolution |
100 ppb |
Dimensions |
6.75 in x 3.5 in x 1.3 in (17.1 cm x 8.9 cm x 3.3 cm) |
Weight |
0.5lb (0.23 kg) |
Nitrogen Dioxide (NO2) |
|
Range |
0 – 20 ppm |
Accuracy |
±15% of reading or ±15 ppb, whichever is greater |
Resolution |
1 ppb |
Sulphur Dioxide (SO2) |
|
Range |
0 – 10 ppm |
Accuracy |
±15% of reading or ±15 ppb, whichever is greater |
Resolution |
1 ppb |
Ozone (O3) |
|
Range |
0 – 20 ppm |
Accuracy |
±15% of reading or ±15 ppb, whichever is greater |
Resolution |
1 ppb |
Total Volatile Organic Compounds (tVOC) |
|
Range |
0 – 1000 ppm |
Resolution |
1 ppb |
Carbon Dioxide (CO2) |
|
Range |
400 - 10,000 ppm |
Accuracy |
± 3% of reading + 30 ppm |
Resolution |
1 ppm |
Formaldehyde (H2CO) |
|
Range |
0 – 1000 ppb |
Accuracy |
±20% of reading + 20 ppb, whichever is greater |
Resolution |
1 ppb |
Particulate Matter (PM) |
|
Range |
0 - 1000 μg/m³ |
Accuracy |
±10 μg/m³ (0 - 100 μg/m³) |
Resolution |
1 ug/m3 |
Relative Humidity (RH) |
|
Range |
0 - 100% RH |
Accuracy |
± 3% RH ±10% of reading (100 - 1000 μg/m³) |
Resolution |
1% RH |
Temperature (T) |
|
Range |
0-60 °C |
Accuracy |
+/- 0.5 °C |
Resolution |
0.1 °C |
Barometric Pressure (BP) |
|
Range |
7.7 - 37.2 in HG (270 - 1185 hPa |
Accuracy |
± 0.12 in Hg (± 4 hPa) |
Resolution |
0.01 in Hg (1 hPa) |
AC and DC Power Requirements |
|
24VAC Back Panel |
24VAC, 50/60 Hz |
USB-C |
AC/DA Adapter Input: 100 - 240VAC, 50 - 60Hz AC/DC Adapter Output: 5VDC |
Power Consumption |
< 5W |
Hardware Model Numbers |
|
8144-4 |
AirAssure IAQ - CO2, CO, H2CO, TVOC + PM2.5, PM10, T, RH, BP |
8144-6 |
AirAssure IAQ - CO2, CO, NO2, SO2 O3 TVOC + PM2.5, PM10, T, RH, BP |
Both Modules Include |
Universal USB power supply & cable 24 VAC terminal connector 32GB Micro-SD card (installed) Mounting Kit |
Software |
The AirAssure™ IAQ Monitor integrates with the TSI Link™ Solution, where you can manage your devices from your home or office. Visit tsi.com/tsilink for more details. |
