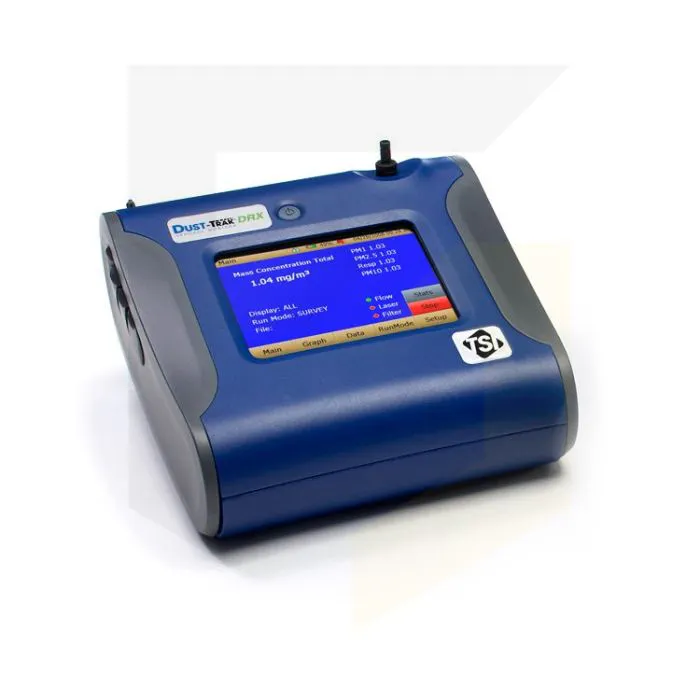

TSI DustTrak DRX Desktop Aerosol Monitor
The TSI DustTrax DRX Desktop Aerosol Monitor is a real-time dust monitor which can simultaneously measure both mass and size fraction. According to TSI, no other monitor can do both! It will provide measurements of aerosol contaminants including dust, smoke, fumes and mist.
It’s a light-scattering photometer which uses a sheath air system. This isolates aerosol in the optics chamber which keeps the optics clean. All of the features ensure that reliable readings are given and that the DRX is low maintenance.
The DustTrax DRX is capable of simultaneously measuring size-segregated mass fraction concentrations corresponding to PM1, PM2.5, respirable, PM10 and total PM size fractions. This desktop aerosol monitor can be used in applications ranging from clean office settings to harsh industrial environments like construction sites.
- Includes STEL alarm set point
- Effect of zero drift is minimised by the automatic zeroing module
- In-line gravimetric analysis can be performed for custom reference calibration
- Manual and programmable data logging functions
- Compatible with the Environmental Enclosure, also from TSI
Dimensions |
5.3 x 8.5 x 8.8 in. |
Weight |
3.5 lb (1.6 kg) |
Particle Size Range |
0.1 to 15 μm |
Aerosol Concentration Range |
0.001 to 150 mg/m3 |
Resolution |
±0.1% of reading or 0.001 mg/m3, whichever is greater |
Temperatures |
Operational Temp 32 to 120°F (0 to 50°C) |
Data Logging |
5 MB of on-board memory (>60,000 data points) |
Alarm Out |
Audible buzzer |
Includes |
|
Certifications |
Immunity EN61236-1:2006 |
