PRODUCT CODE
8534
£9,414.00 £7,845.00

Typical applications include industrial/occupational hygiene surveys, indoor air quality investigations, oint source location monitoring, baseline trending and screening and engineering control evaluations

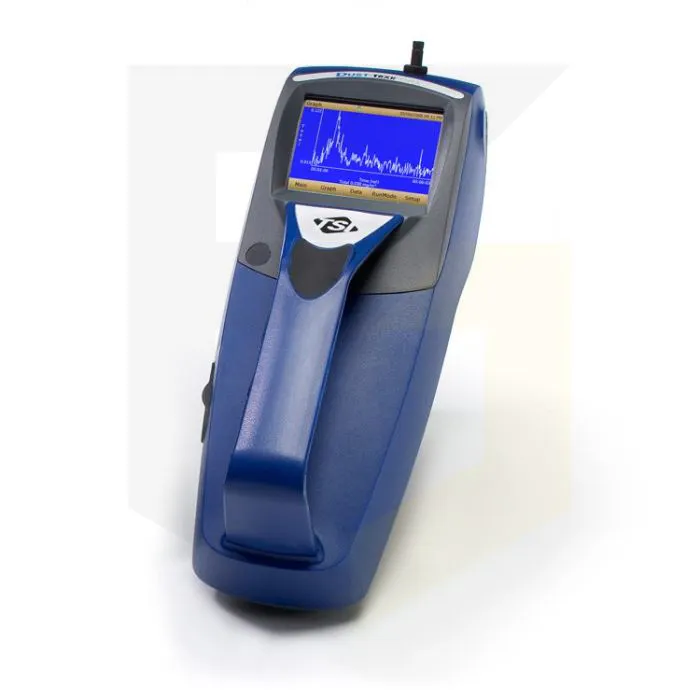

TSI DustTrak DRX Handheld Aerosol Monitor

TSI DustTrak DRX Handheld Aerosol Monitor

The TSI DustTrak DRX Aerosol Monitor is a handheld device capable of real-time monitoring and simultaneously measuring both mass and size fraction.  According to TSI, there is no other monitor on the market which can do both!

This light-scattering laser photometer is a battery-operated monitor which is capable of providing reliable and low maintenance readings.  In order to do this the sheath air system isolates the aerosol in the optics chamber which keeps the optics clean.

The DustTrak DRX from TSI will measure aerosols including dust, smoke, fumes and mist and can be used in anything from clean office environments to outdoor, tough industrial applications.

Key Features
  • Mass fraction concentrations include PM1, PM2.5, respirable, PM10 and total PM size fractions
  • DustTrax is lightweight and portable
  • Ability to manually program data logging functions
  • Single point data logging capability
Specifications

Dimensions

4.9 x 4.8 x 12.5 in.

(12.5 x 12.1 x 31.6 cm)

Weight

2.9 lb (1.3 kg),

3.3 lb (1.5 kg) with battery

Particle Size   Range

0.1 to 15 μm

Aerosol Concentration Range

0.001 to 150 mg/m3

Resolution

±0.1% of reading or 0.001 mg/m3, whichever is   greater

Temperatures

Operational Temp 32 to 120°F (0 to 50°C)

Storage Temp -4 to 140°F (-20 to 60°C)

Temperature Coefficient +0.001 mg/m3 per °C

Data Logging

5 MB of on-board memory (>60,000 data points)

45 days at 1 minute logging interval

Alarm Out

Audible buzzer

Includes

Carrying case

Rechargeable 3600 mAH Li-Ion batttery

Switching power supply with universal line cords

TrakPro data analysis software CD

Zero filter

USB (device and host) computer cables, inlet cap   (x2), calibration impactor kit (with PM2.5 impactor and impactor plate)

Screwdriver

Sample extension tube (3-ft/1-m)

Sheath air HEPA filters (x8)

Filter removal tool

Operation service manual

Calibration certificate

2-year warranty

Certifications

Immunity EN61236-1:2006
  Emissions EN61236-1:2006
