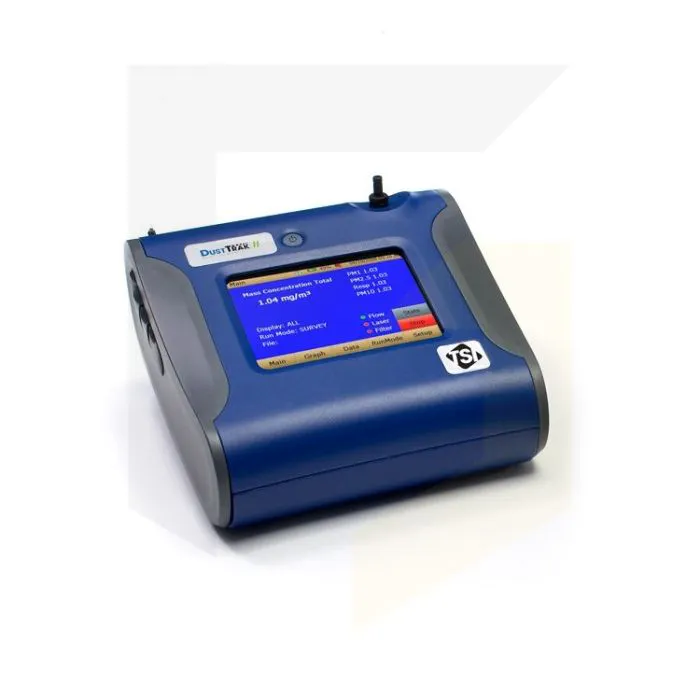

TSI DustTrak II 8530EP
TSI's DustTrak II 8530EP is a battery-operated, desktop aersol monitor which is able to measure aerosol contaminants such as dust, smoke, fumes and mist through an external pump. The measurements are real time and the unit is able to withstand 24/7 monitoring in tough applications like fugitive emissions monitoring and construction.
Please note: the external pump is not shown in the image above.
The built-in sheath air system isolates the aersol in the optics chamber. This keeps the optics clean, improves the reliability of the unit and makes it easily maintainable. The DustTrak II 8530EP measures aerosol concentrations corresponding to PM1, PM2.5, respirable, and PM10 or size fractions with a variety of inlet conditioners.
There's also manual and programmable data logging functions available with this unit.
- Compact desktop unit
- Pump is energy-efficient and long-lasting
- Features a STEL alarm setpoint
- Zero drift effects are minimised with automatic zeroing
- In-line gravimetric analysis is performed for custom reference calibrations
- Can be tamper-proofed and protected from the environment using the Environmental Enclosure
- Carry out remote monitoring with the cloud data management system software
- Heated Inlet Sample Conditioner to reduce humidity effects
Dimensions |
Desktop 4.9 x 4.8 x 12.5” (12.5 x 12.1 x 31.6 cm) |
Weight |
Desktop 2.9 lb (1.3 kg) 3.3 lb (1.5 kg) with battery |
Aerosol Concentration Range |
0.001 to 400 mg/m3 |
Resolution |
±0.1% of reading or 0.001 mg/m3, whichever is greater |
Zero Stability |
±0.002 mg/m3 per 24 hours at 10 sec time constant |
Flow Rate |
3.0 L/min set at factory, 1.40 to 3.0 L/min, user adjustable |
Flow Accuracy |
±5% of factory set point, internal flow controlled |
Temperature Coefficient |
+0.001 mg/m3 per °C |
Temperature |
Operation Temp: 32 to 120°F (0 to 50°C) |
Time Constant |
User adjustable, 1 to 60 seconds |
Power AC |
Switching AC power adapter with universal line cord included, 115–240 VAC |
Display |
3.5” VGA colour touch screen |
Alarm |
Audible Buzzer |
CE Rating |
|
Includes |
|
