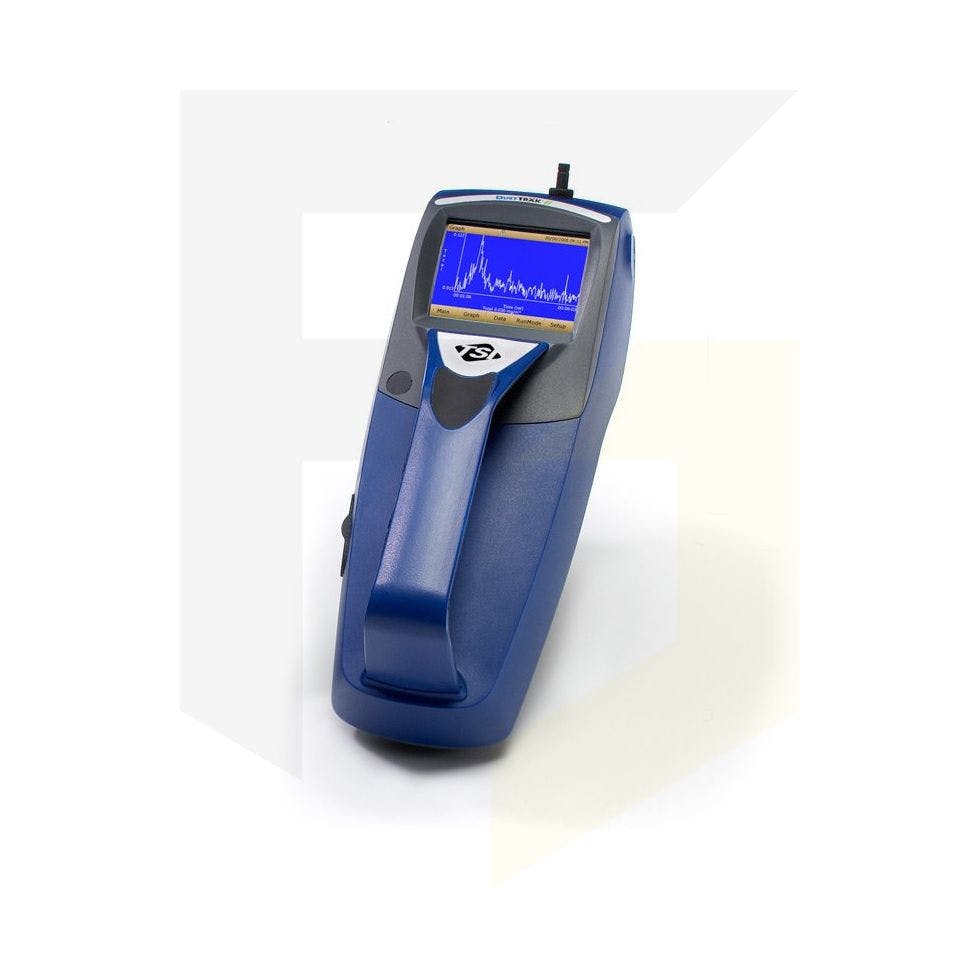

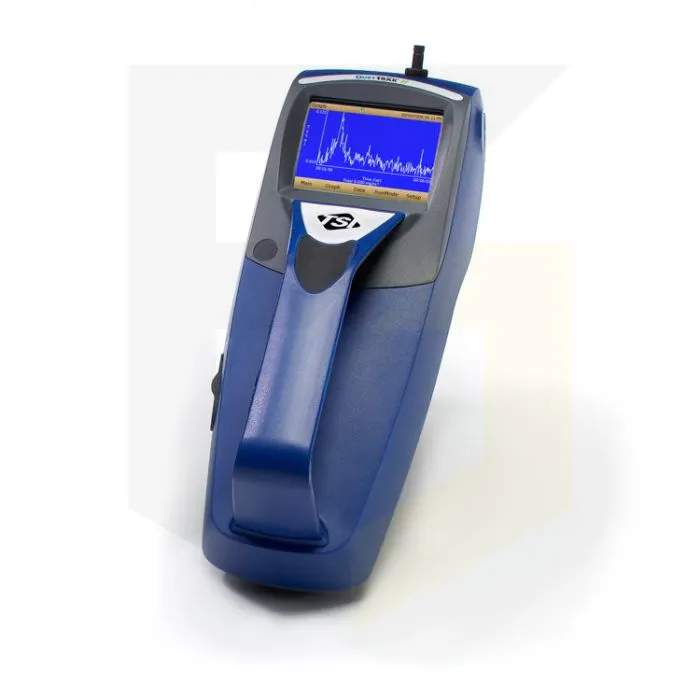

TSI DustTrak II Handheld Aerosol Monitor
The DustTrak II Aerosol Monitor (model 8532) from TSI is a handheld, battery-operated instrument which provides real-time mass concentration readings for aerosol contaminants. These contaminants include dust, smoke, fumes and mist.
The mass concentration readings of aerosols are determined using a 90° light-scattering laser photometer. The Dustrak II has a built-in pump which allows the use of a range of size-selective inlet conditioners. This includes PM10, PM2.5, PM1, or respirable size fractions. It uses a sheath air system which isolates aerosol in the optics chamber and keeps the optics clean for improved reliability.
The aerosol monitor is suitable for use in a range of environments, from harsh industrial workplaces to clean office settings. The 8532 model can be used for single-point data collection for walk-through surveys, for industrial hygiene or for indoor air quality investigations.
The Dustrak II has a datalogging function which can be controlled manually, or can be programmed. Data can be analysed using TrakPro Data Analysis software
- Lightweight, portable and easy to carry
- Desktop version also available (8530, 8533 models)
- Features a real-time graph display
- On-screen instrument status indicators show FLOW, LASER and FILTER
- Low maintenance unit
- Stored data is accessible using a flash memory drive
- 3.5” VGA colour touchscreen
Dimensions (H x W x D) |
4.9 x 4.8 x 12.5 in. (12.5 x 12.1 x 31.6 cm) |
Weight |
2.9 lb (1.3 kg), 3.3 lb (1.5 kg) with battery |
Particle Size Range |
0.1 to 10 μm |
Aerosol Concentration Range |
0.001 to 150 mg/m3 |
Resolution |
±0.1% of reading or 0.001 mg/m3, whichever is greater |
Zero Stability |
±0.002 mg/m3 per 24 hours at 10 sec time constant |
Flow |
Rate - 3.0 L/min set at factory, 1.40 to 3.0 L/min, user adjustable |
Temperature |
Temperature Coefficient - +0.001 mg/m3 per °C Operational Temp - 32 to 120°F (0 to 50°C) |
Operational Humidity |
0 to 95% RH, non-condensing |
Time Constant |
User adjustable, 1 to 60 seconds |
Data Logging |
5 MB of on-board memory (>60,000 data points) 45 days at 1 minute logging interval |
Power |
Switching AC power adapter with universal line cord included, 115–240 VAC |
Alarm Out |
Audible Buzzer |
CE Rating |
Immunity EN61236-1:2006 Emissions EN61236-1:2006 |
