- Description / Features / Spec

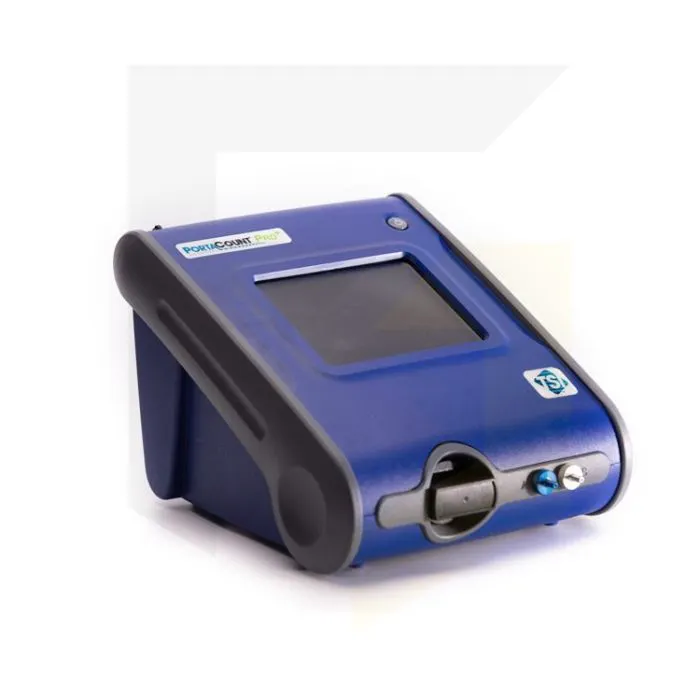

TSI PortaCount Pro+ Model 8038-1
The TSI PortaCount Pro+ (Model 8038) is a respirator fit tester, suitable for fit testing SCBA, respirators and 95, 99, 100, FFP1, FFP2 and FFP3 filtering facepiece respirators.
TSI offer this fit tester as a way of quantitatively fit testing all types of respirator gas masks and equipment mentioned above, as no other respirator fit tester can. This provides a huge advantage of eliminating guesswork associated with traditional qualitative fit testing methods. It's one of the fastest and easiest methods of HSE (UK) and OSHA (US)- compliant fit testing.
The PortaCount Pro+ is compatible with new modified CNC protocols, as well as OSHA, CSA, HSE and ANSI standards. It can be used in many applications and doesn't require an external computer to use it. It can operate in standalone mode and you easily switch between N95 and N99 mode of operation in seconds.
- Built-in N95 Companion™ technology
- Measures fit factors greater than 10,000
- Automates fit testing with FitPro+™ Fit Test Software
- Use with external computer to generate reports and print fit test cards
- Color touchscreen enables operation via touch of a finger, pen or stylus
- Carrying case
- AC adapter
- Alcohol supply (enough for ~240 hours of operation)
- FitPro+™ Fit Test Software on CD
- USB computer interface cable
- Particle Generator (shipped separately)
- Operation and service manual
Dimensions (H x W x D)
- 6.75 in. x 8.5 in. x 9.5 in. (17 cm x 22 cm x 24 cm)
- Carrying Case: 9 in. x 13.7 in. x 19.5 in. (23 cm x 34.8 cm x 49.5 cm)
Weight (enclosure only)
- Unit Only - 6.8 lb (3.1 kg)
- With Standard Accessories and Case 18 lb. (8.2 kg)
Fit Factor Range
1 to greater than 10,000, 1 to 200 for N95 masks
Typical Fit Factor Accuracy
±10% of reading
Fit Factor Measurement
Direct measurement of fit factor (Cout/Cin)*
Autosensing 100 to 250 VAC, 50 to 60 Hz
- Sample 350 cm3/min
- Total 1000 cm3/min (nominal)
- Operation 32 to 100°F (0 to 38°C)
- Storage -40 to 160°F (-40 to 70°C)
- Hours Per Charge 6 hours at 70°F (21°C)
- Alcohol Type 99.5%+ reagent grade isopropyl
User-selectable: 0 to 10,000
Factory Recalibration Interval
Two years on workmanship and materials
Minimum PC Hardware Requirements for FitPro+ Fit Test Software
- Windows® XP, Windows 7 (32 and 64 bit), or Windows 8 (32 and 64 bit) operating system
- Microsoft.Net version 4 (installation software will install Microsoft.Net if necessary)
- Note — An internet connection is required to install Microsoft.Net
- ≥ 1 GHz process
- ≥ 12080 x 800 screen resolution monitor
- 500 MB free space on hard drive
- 1 free USB port
- CD-ROM reader or internet connection (to install the software)
Mask Sampling Adapters for select respirator models
*Mask leakage is measured simultaneously while test subject moves and breathes
