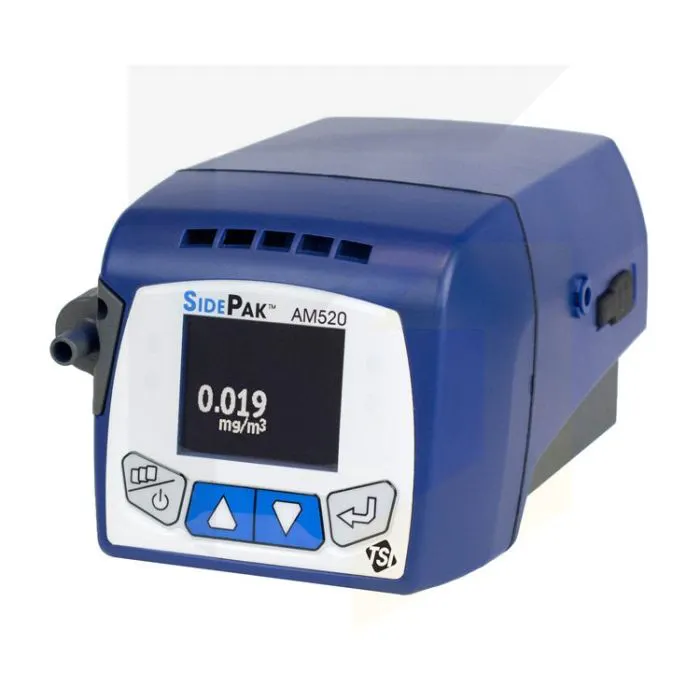

TSI Sidepak AM520 Personal Aerosol Monitoring Kit
TSI Sidepak AM520 Personal Aerosol Monitoring Kit

Product Code - AM520

exc VAT £3,075.00 inc VAT £3,690.00

Suitable for industry applications including: aerospace, automotive, chemical, construction, general Industry, healthcare, manufacturing, mining, petrochemical, pharmaceutical, power generation and transportation.

Description / Features / Spec


TSI Sidepak AM520 Personal Aerosol Monitoring Kit

The Sidepak AM520 Personal Aerosol Monitor from TSI provides real-time readings of dust, fumes, mists, smoke, fog and other aerosol mass concentrations.  The unit can be worn on the person and can monitor these contaminants within the worker’s breathing zone.

Specifically-designed inlet conditioners and robust impactors mean the mass concentration capability is increased and size fraction cut points for PM10, PM4 (respirable), PM5 (China respirable), PM2.5, PM1 and 0.8µm Diesel Particulate Matter (DPM) is provided.

Audible and visual alarms can be set to alert users to particularly high aerosol concentrations.

For more information please see the specification datasheet.


Key Features

  • Features a high capacity battery which allows for 20+ hours of continuous operation to ensure flexibility
  • Colour LED display
  • Data logging capability
  • Easy to operate menu which is programmable through the TrakPro v5 Software



5.1 x 3.7 x 3.1 inch 129.5 mm x 94 mm x 78.4 mm with   803300 battery


22 oz (0.62 kg) with 803300 battery


  •   5400 mAH Li-Ion Pack
  •   Greater than 20 hours at   1.7Lpm with a PM2.5 impactor
  •   Charge time - 4.0 hours   (typical with a fully depleted battery)

Aerosol Concentration Range

0.001 to 100 mg/m3

Particle Size Range

0.001 mg/m3

Temperature Range

Operating Range 32° F to 120° F (0° C to 50° C)

Storage Range -4° F to 140° F (-20° C to 60° C)

Operational Humidity 0 to 95% RH, non-condensing


  •   Alarm Types General, STEL
  •   Default Settings 0.5 mg/m3, 1   mg/m3, 3 mg/m3, 5 mg/m3, 15 mg/m3, Off
  •   Programmable from 0.001 to   999 mg/m3 through TrakPro Software
  •   Alarm Indicator 95 dBA (at   one foot) audible horn, blinking red LED, flashing red OLED display
  •   Ringback Delay 30 sec, 1 min,   3 min, 5 min, 10 min, Off


  •   Data Points Approx. 80,000   (55 days logging once per minute)
  •   Logging Interval User-adjustable,   from 1 second to 60 minutes


  •   CE 0344
  •   Immunity EN61326-1:2013
  •   Emissions EN61326-1:2013   Class B
  •   Safety IEC 61010-1:2010
  •   IEC 60825-1:2014


  •   Soft single-unit carrying   case
  •   100-240VAC power supply
  •   USB cable
  •   Impactor kit
  •   Dorr-Oliver Cyclone kit
  •   DPM cyclone kit
  •   Screwdriver
  •   Micro USB cable
  •   Zero filter
  •   Sample tube
  •   Calibration certificate
  •   User guide
  •   Quick reference card
  •   2-year warranty
